EATON

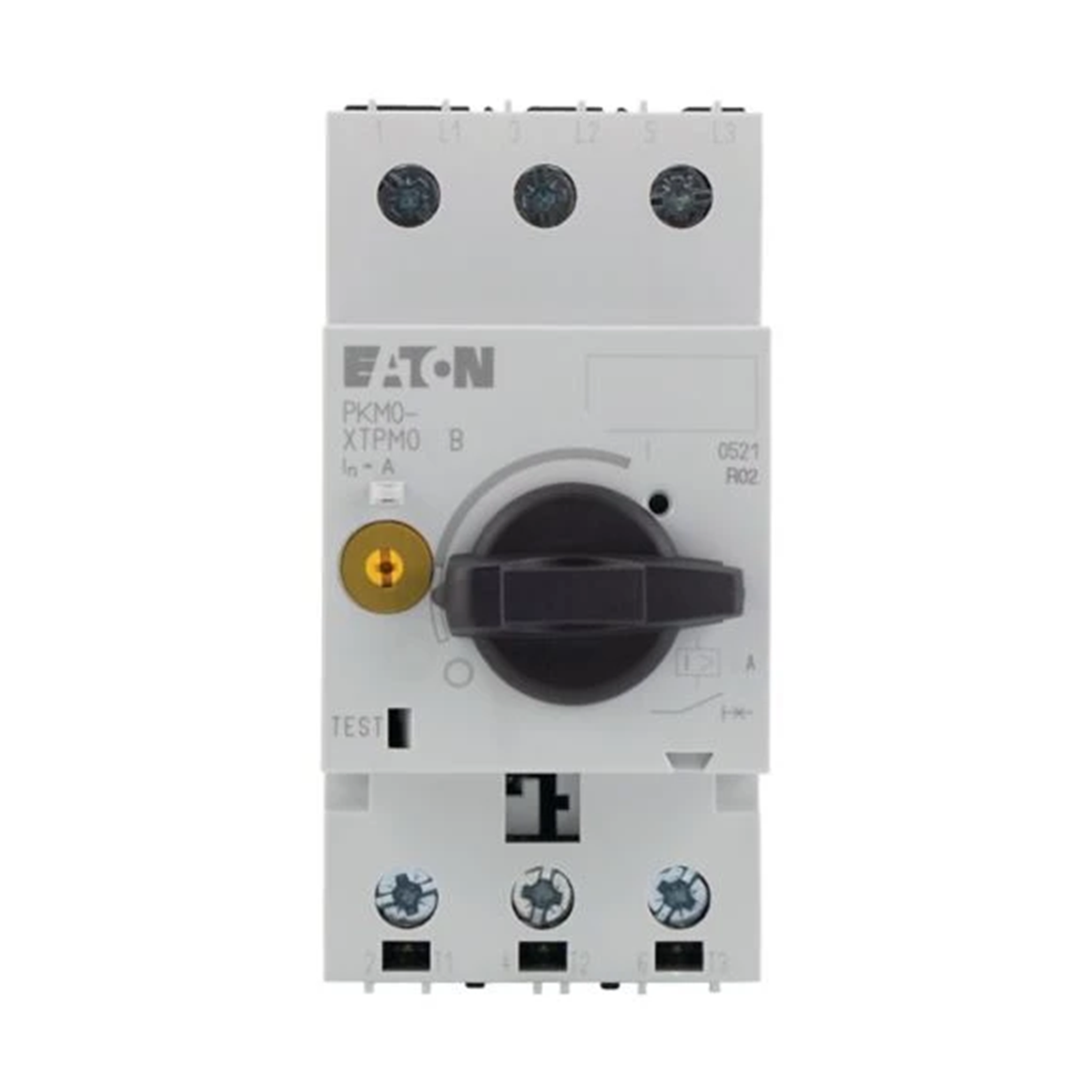

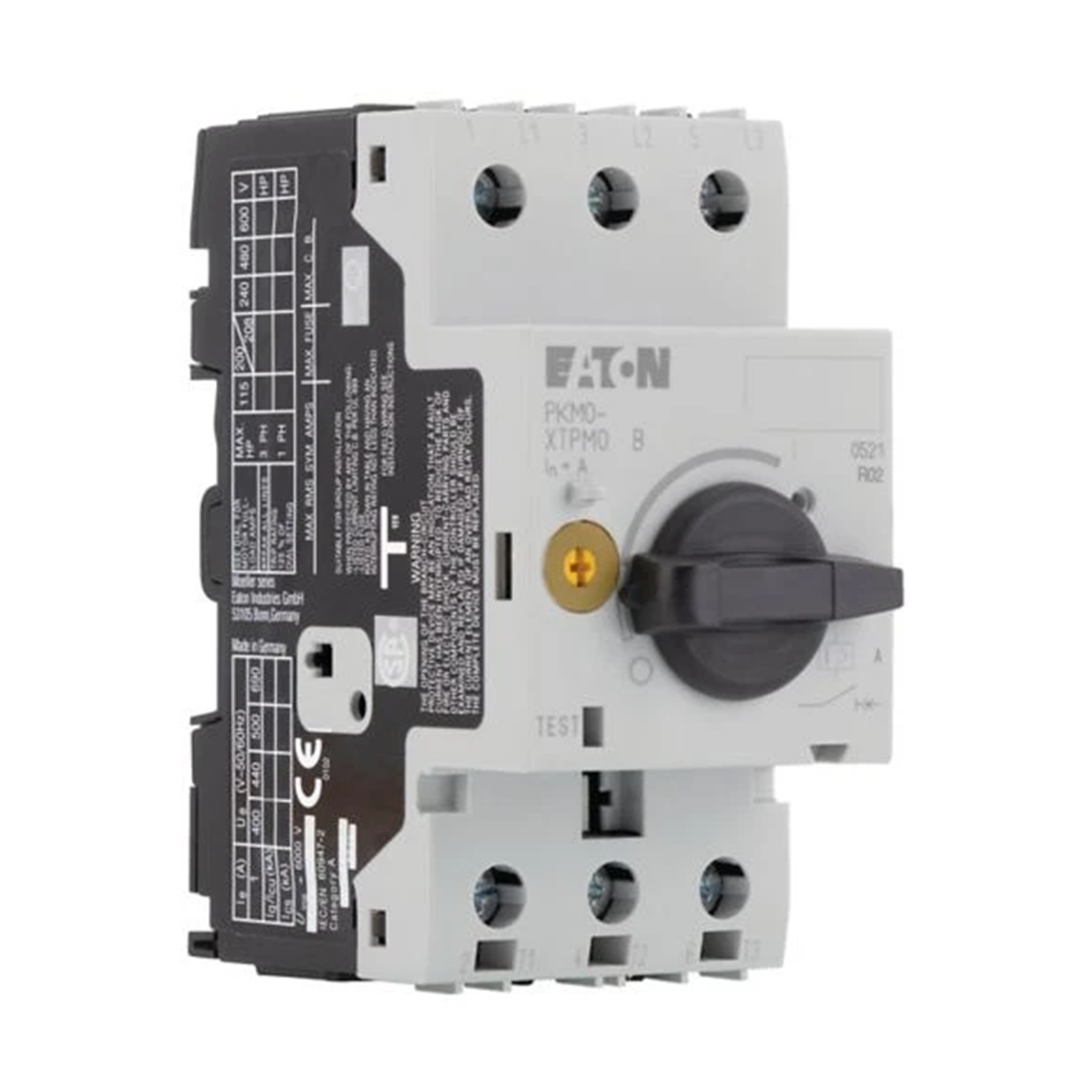

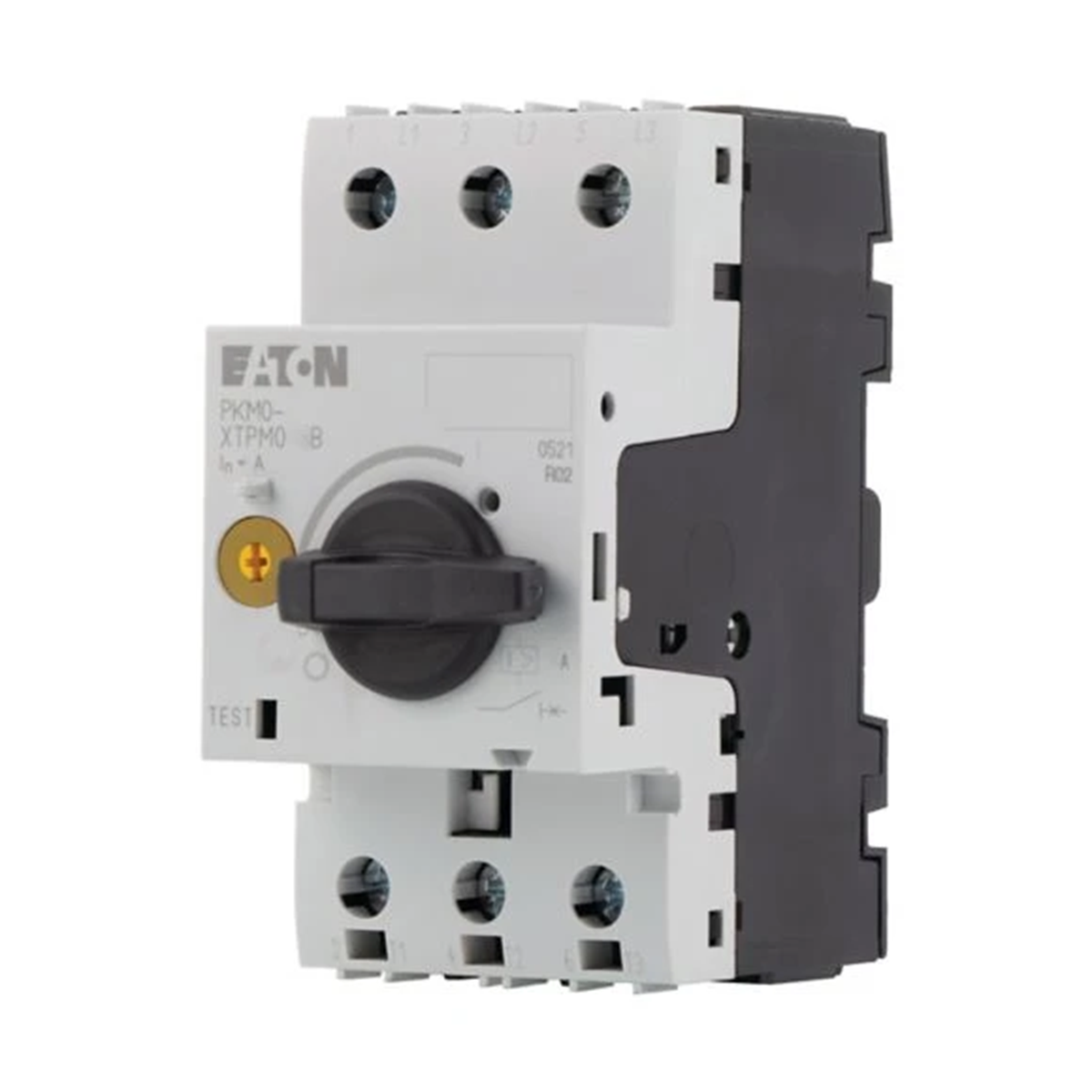

4A motor circuit breaker, PKM0-4 072727

local index:
ASN238MOEL
Catalog No:
072727
EAN code:
4015080727279
Price:
79,19 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Motor circuit breakers for starter systems. Circuit-breakers with short-circuit release, without overload protection.

Technical data

  • Continuous current [A]
    4
  • Short-circuit release [A]
    56

Other technical data

  • Overload release current setting
    0 ... 0 A
  • With thermal overload protection
    no
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    4 A
  • Rated operation power at AC-3, 400 V
    1.5 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    62 ... 62 A
  • Phase failure sensitive
    no
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.75 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm
