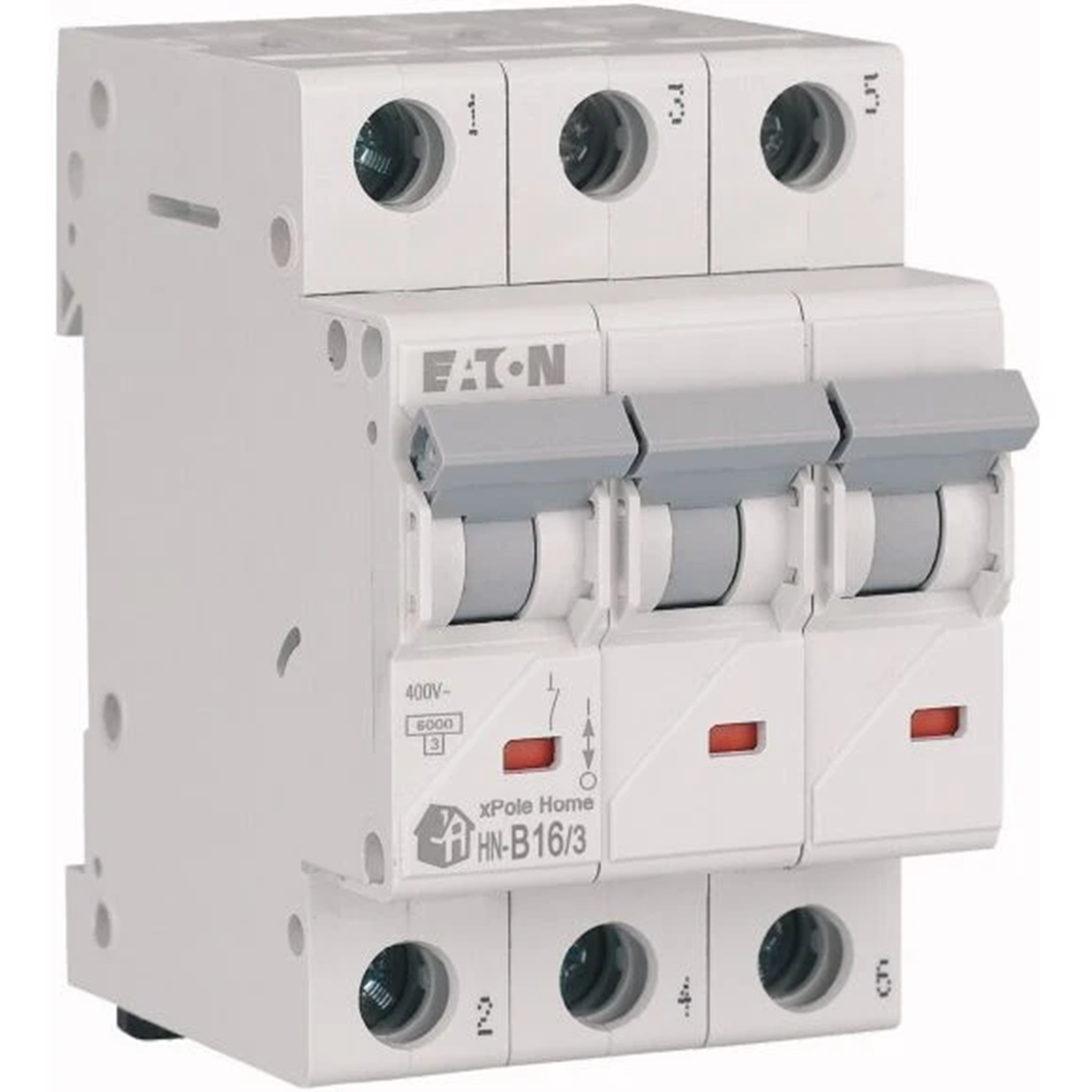

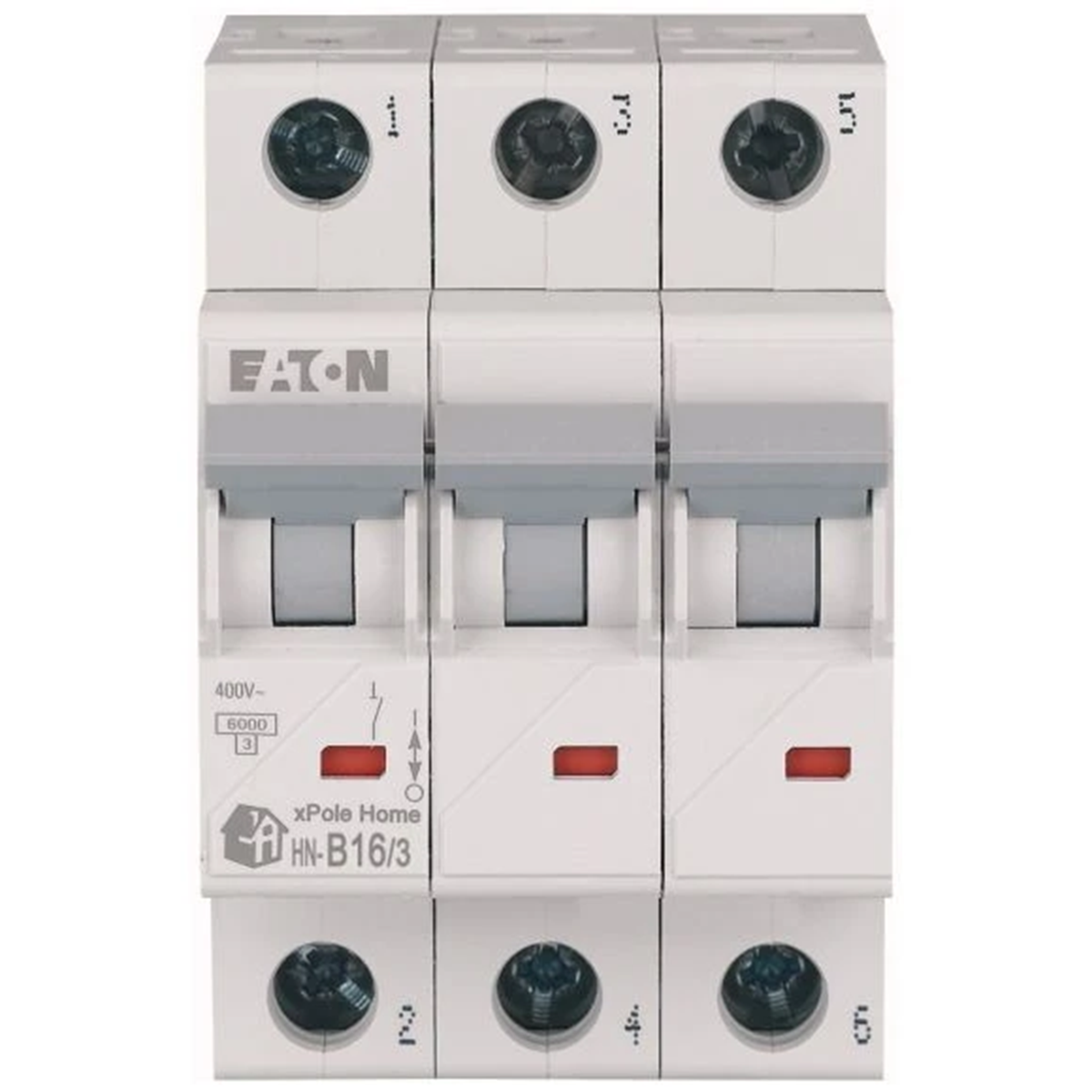

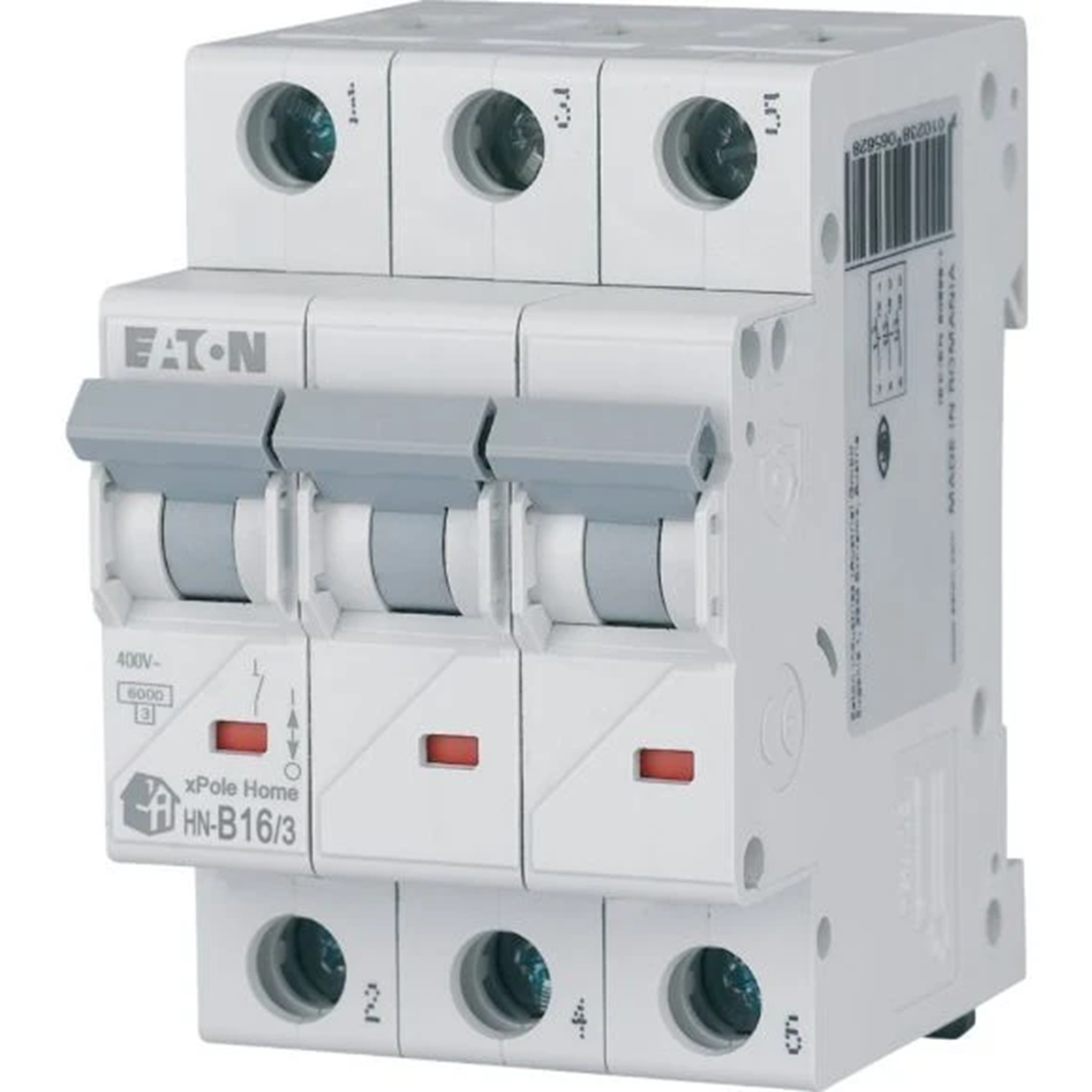

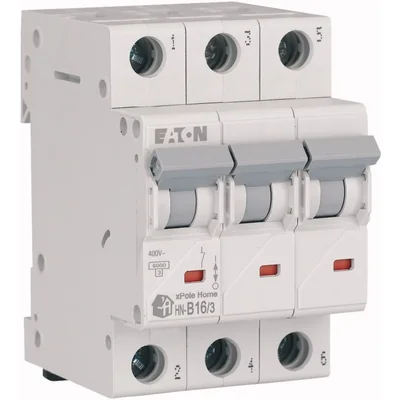

3-pole circuit breaker B 16A 6kA AC 194881

local index:
ABB044MOEL
Catalog No:
194881
EAN code:
9010238063655
Manufacturer: EATON
Characteristic: b
Number of poles: 3
Rated voltage [V]: 230
Price:
20,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 273 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

3-pole circuit breaker B 16A 6kA AC

Technical data

  • Characteristic
    b
  • Rated voltage [V]
    230
  • Short-circuit current [kA]
    6
  • Voltage type
    AC
  • Number of poles
    3
  • Rated current [A]
    16
  • Level of security
    IP20
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    44 mm
  • Number of poles (total)
    3
  • Rated current
    16 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    no
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    yes
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    no

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 4 pcs. 40 pcs.
Weight (kg) 0,371 1,485 14,850
Volume (m3) 0,000 0,001 0,016
Width (m) 0,055 0,218 0,180
Length (m) 0,087 0,086 0,385
Depth (m) 0,075 0,075 0,230
