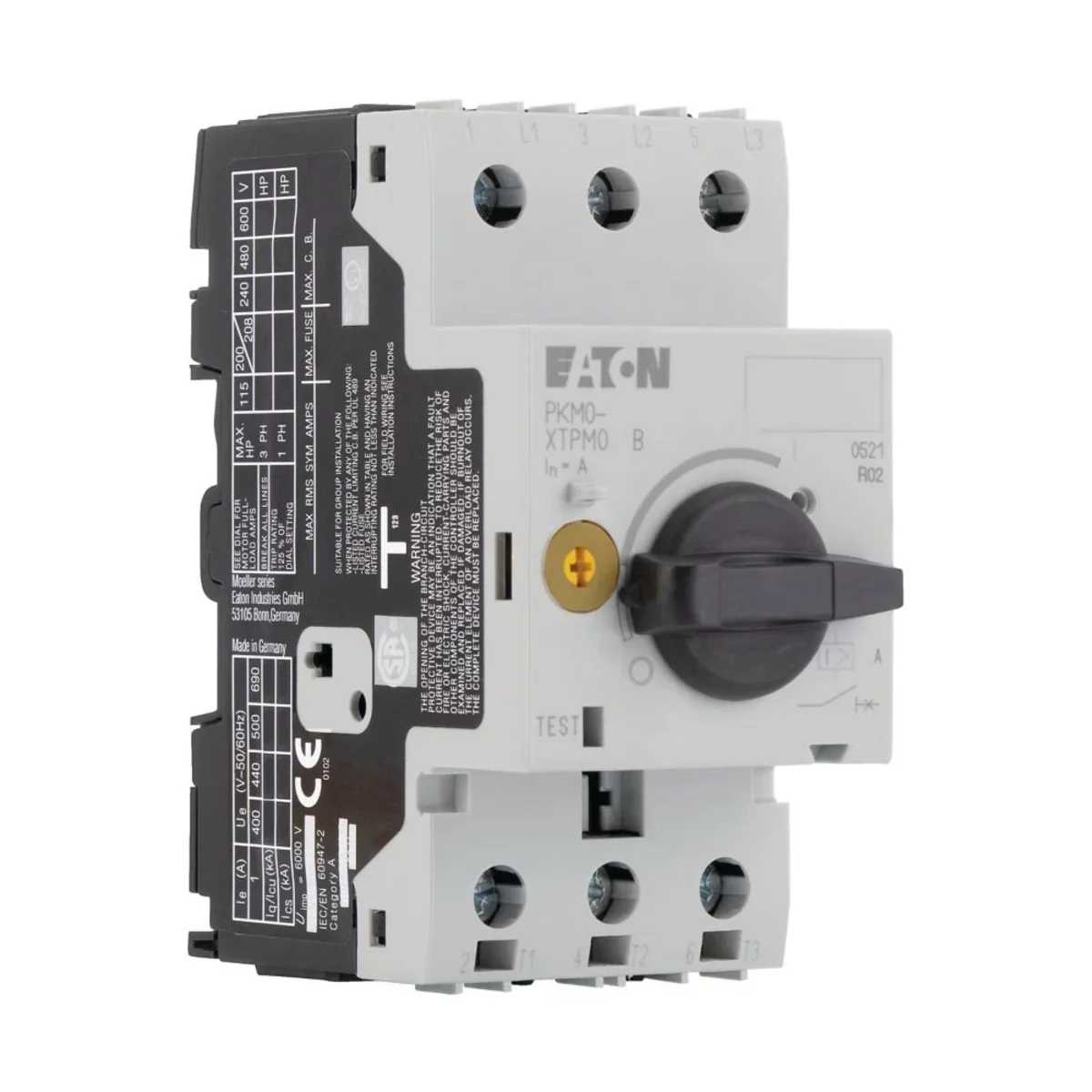

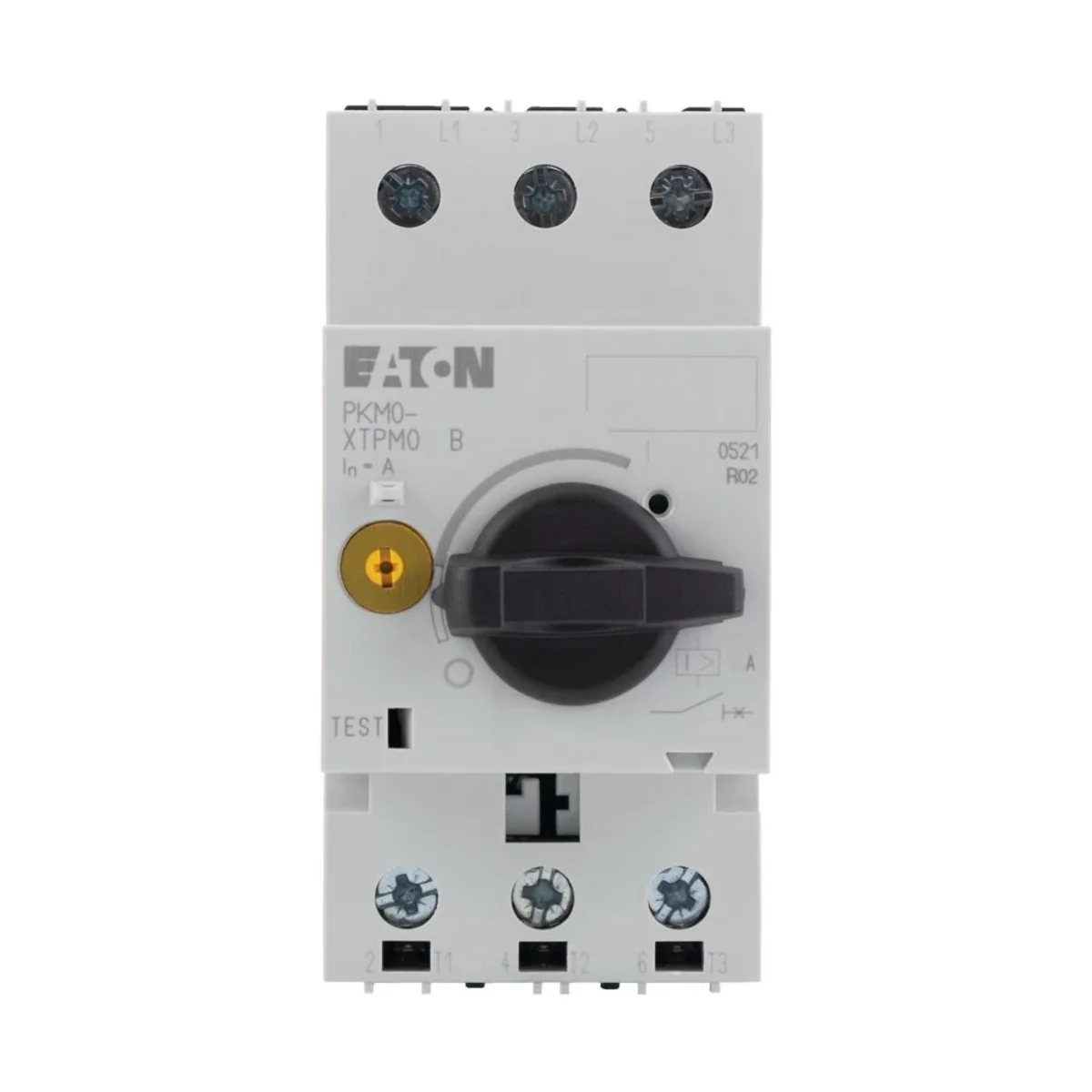

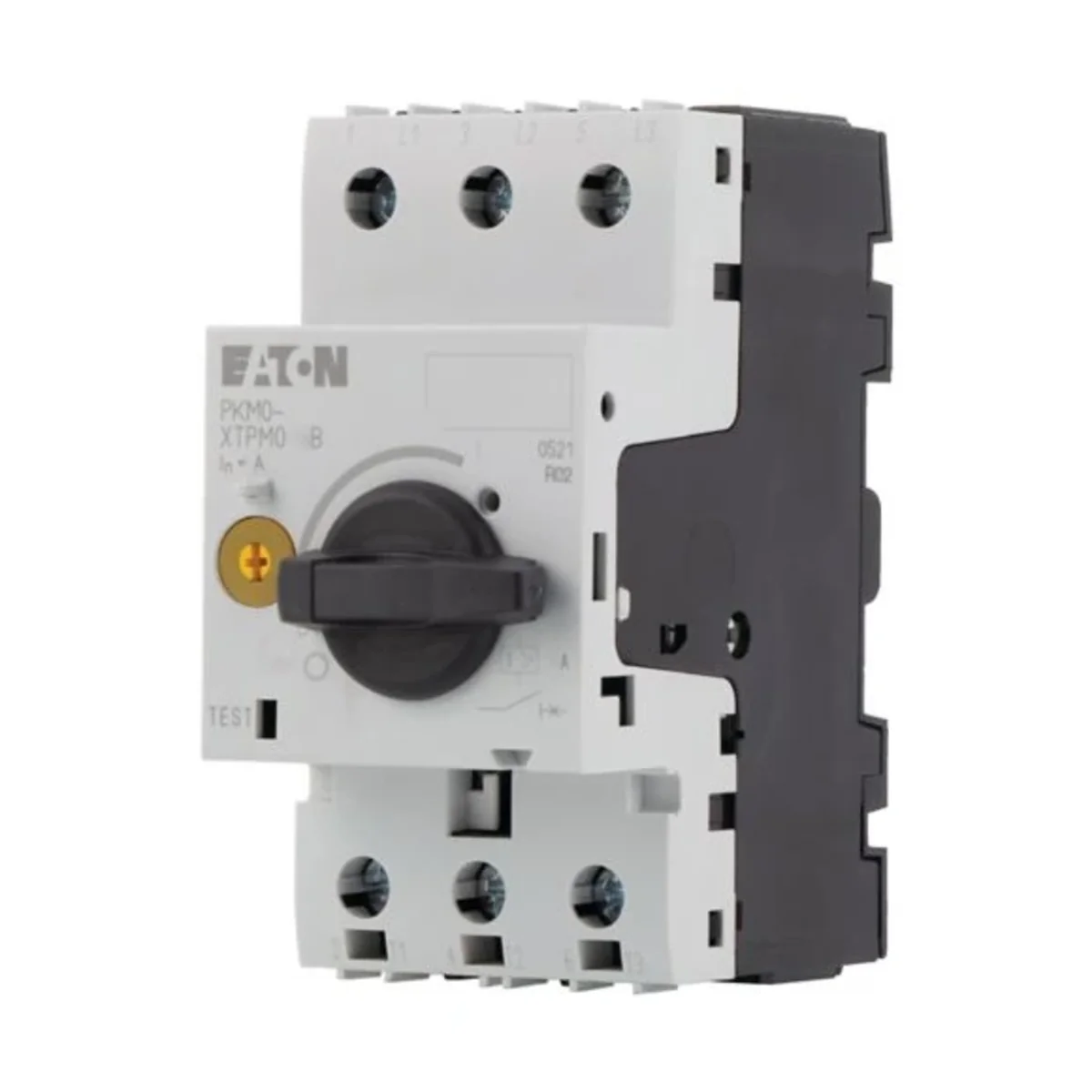

2.5A motor circuit breaker, PKM0-2.5 072726

local index:
ASN123MOEL
Catalog No:
072726
EAN code:
4015080727262
Manufacturer: EATON
Continuous current [A]: 2.5
Short-circuit release [A]: 35
Price:
74,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor circuit breakers for starter systems. Circuit-breakers with short-circuit release, without overload protection.

Technical data

  • Continuous current [A]
    2.5
  • Short-circuit release [A]
    35

Other technical data

  • Overload release current setting
    0 ... 0 A
  • With thermal overload protection
    No
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    2.5 A
  • Rated operation power at AC-3, 400 V
    0.75 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    39 ... 39 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.37 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,302
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,080
Depth (m) 0,097
