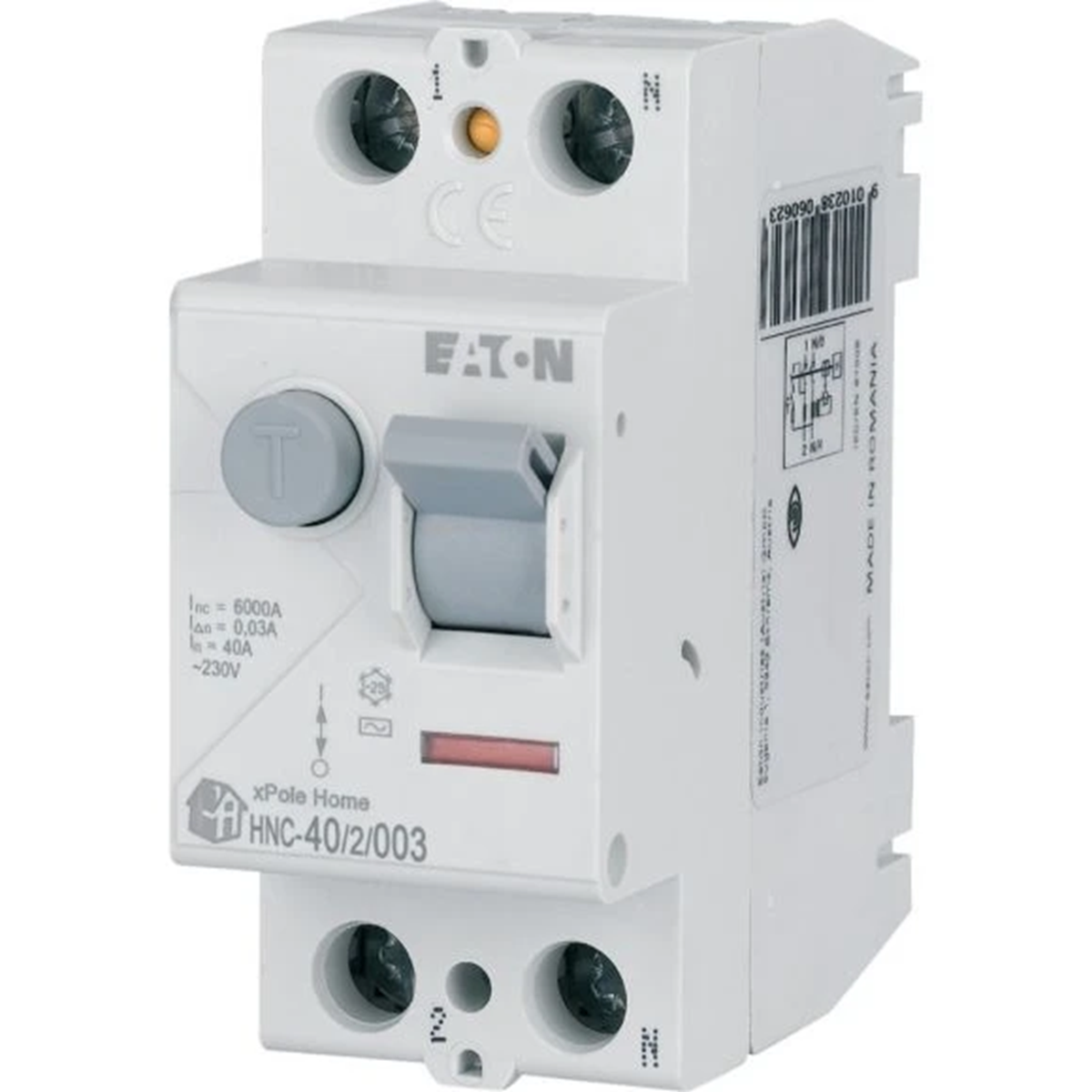

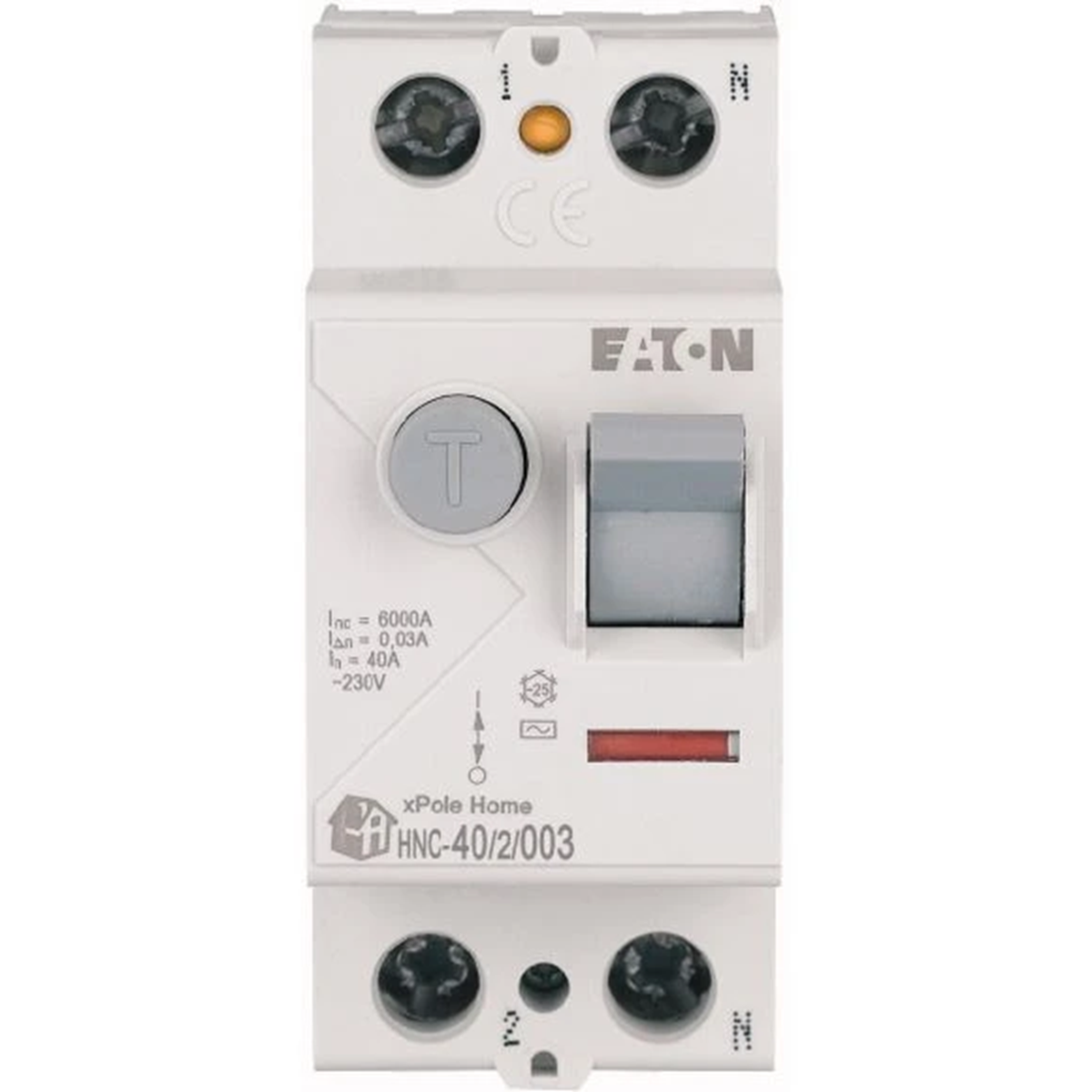

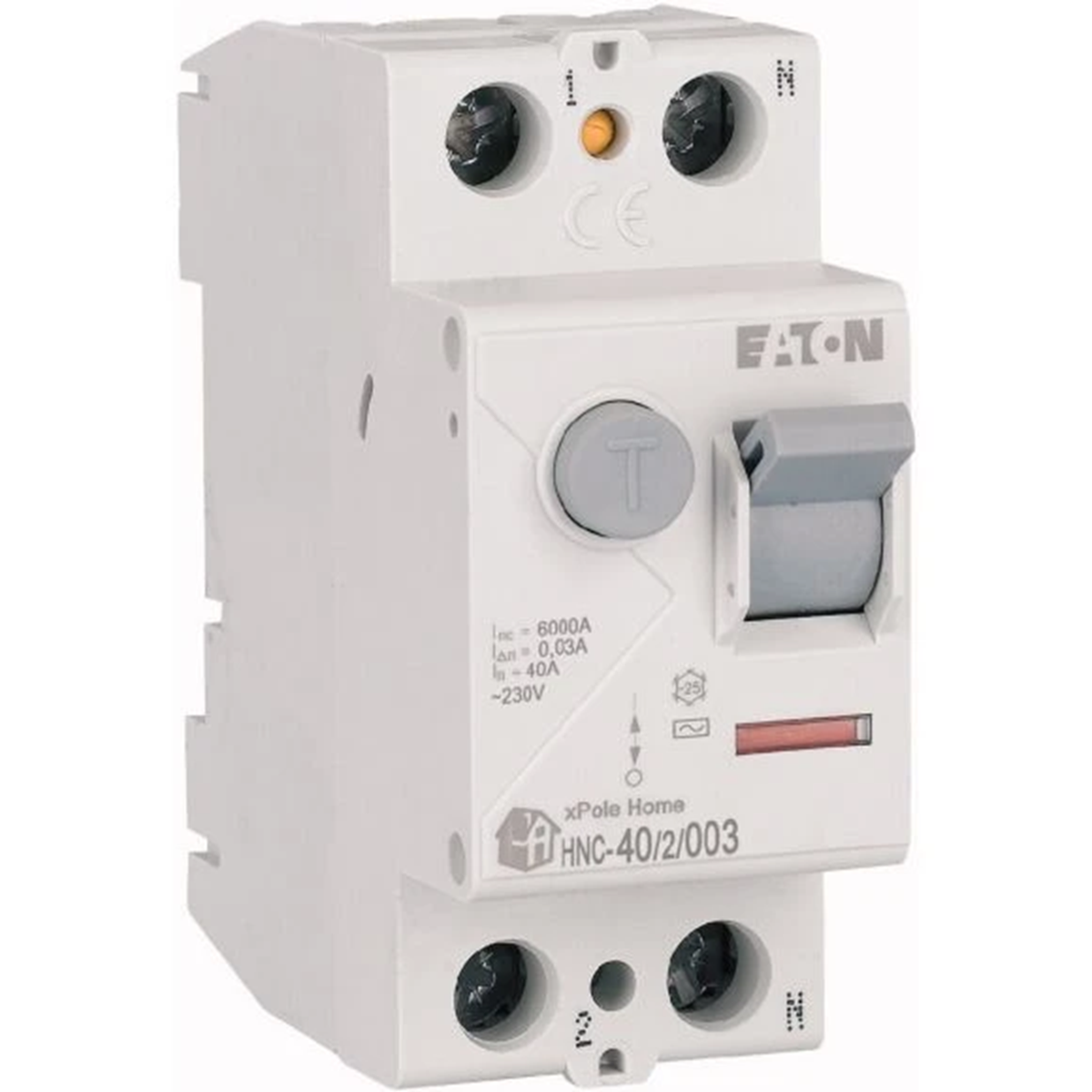

2-pole residual current device 40A 30mA AC 6kA 194691

local index:
ARP108MOEL
Catalog No:
194691
EAN code:
9010238060630
Manufacturer: EATON
Tenderness: AC
Depth [mm]: 45
Number of poles: 2
Price:
24,02 €
gross / pcs.
(including VAT 23%)
Last lowest price: 25,72 € gross
Base price: 70,65 € gross -66%
Delivery in 3h
Accessible 295 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-pole residual current device 40A 30mA AC 6kA

Technical data

  • Tenderness
    AC
  • Number of poles
    2
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Rated current [A]
    40
  • Degree of contamination
    2
  • Width [mm]
    35
  • Electrical endurance (number of cycles)
    >4000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1,5-35
  • Maximum fuse [A]
    63
  • Depth [mm]
    45
  • Fixing
    Clip
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Level of security
    IP20
  • Width [number of modules]
    2
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Surge current resistance [A]
    250
  • PKWIU
    27.12.22.0

Other technical data

  • Number of poles
    2
  • Rated current
    40 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • Voltage type
    AC
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    45 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1.5 ... 35 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.03 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 16 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,220 13,200
Volume (m3) 0,000 0,016
Width (m) 0,035 0,180
Length (m) 0,080 0,385
Depth (m) 0,076 0,230
