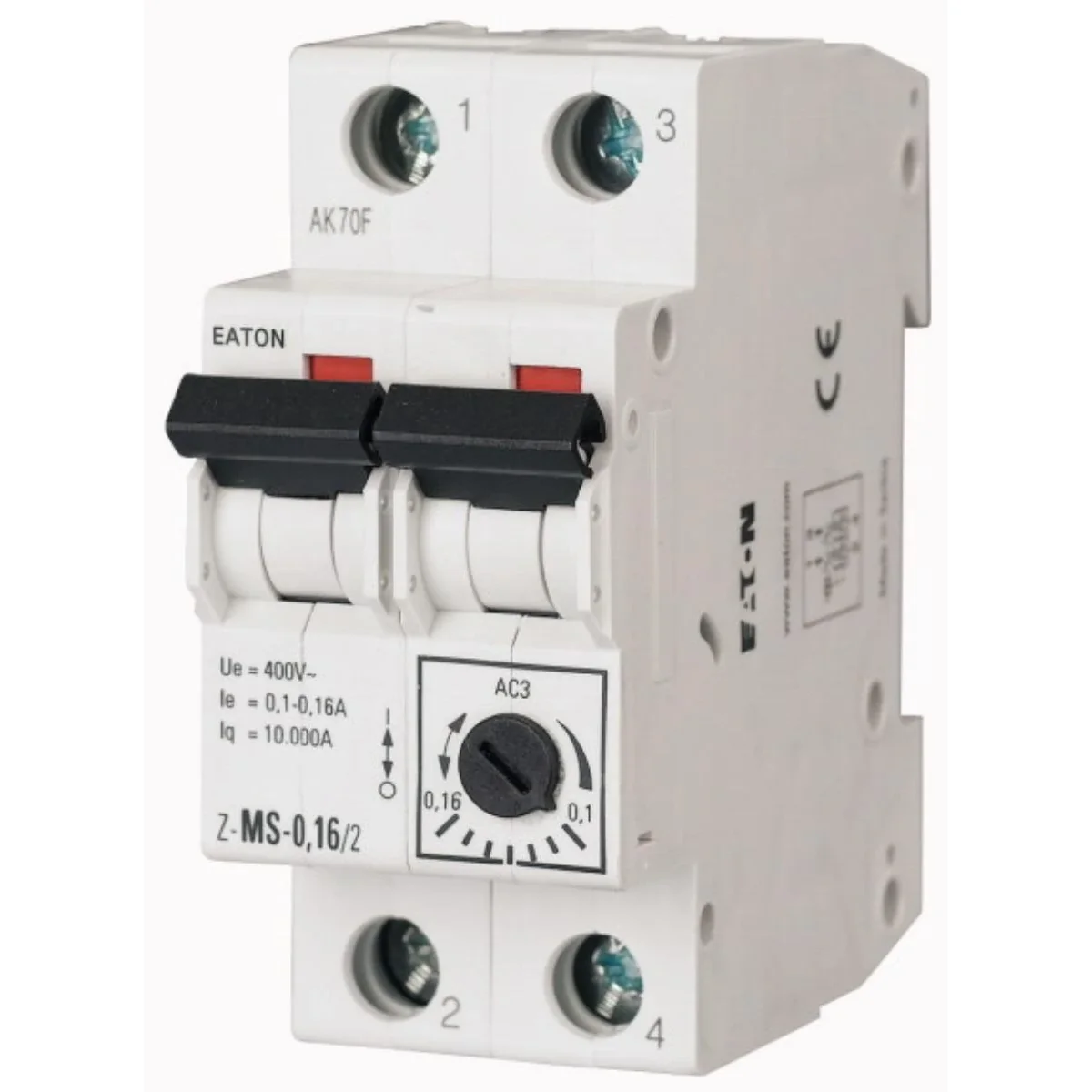

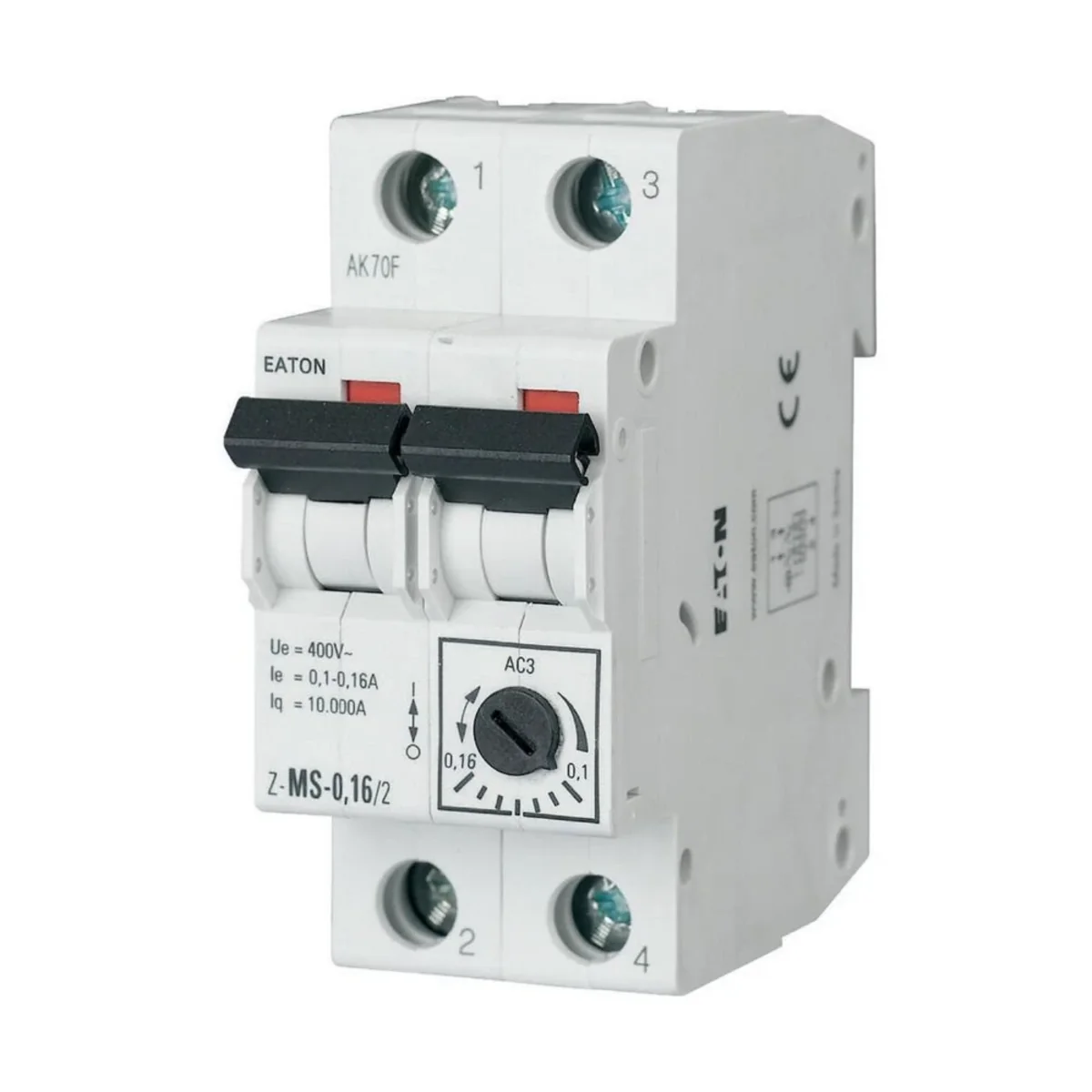

2-pole motor starter protector, Z-MS-0, 16/2 248389

local index:
ASN001MOEL
Catalog No:
248389
EAN code:
4015082483890
Manufacturer: EATON
Level of security: IP20
Price:
50,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-pole motor starter protector, Z-MS-0, 16/2

Technical data

  • Level of security
    IP20

Other technical data

  • Overload release current setting
    0.1 ... 0.16 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    0.16 A
  • Rated operation power at AC-3, 400 V
    0.06 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    2
  • Degree of protection (IP)
    IP20
  • Width
    36 mm
  • Adjustment range undelayed short-circuit release
    1.3 ... 1.7 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    400 ... 400 V
  • Rated operation power at AC-3, 230 V
    0 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    10 kA
  • Height
    75 mm
  • Depth
    80 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,244 14,640
Volume (m3) 0,000 0,016
Width (m) 0,086 0,385
Length (m) 0,037 0,180
Depth (m) 0,075 0,230
