Electrical apparatus
fuses
Circuit breakers with "B" characteristic

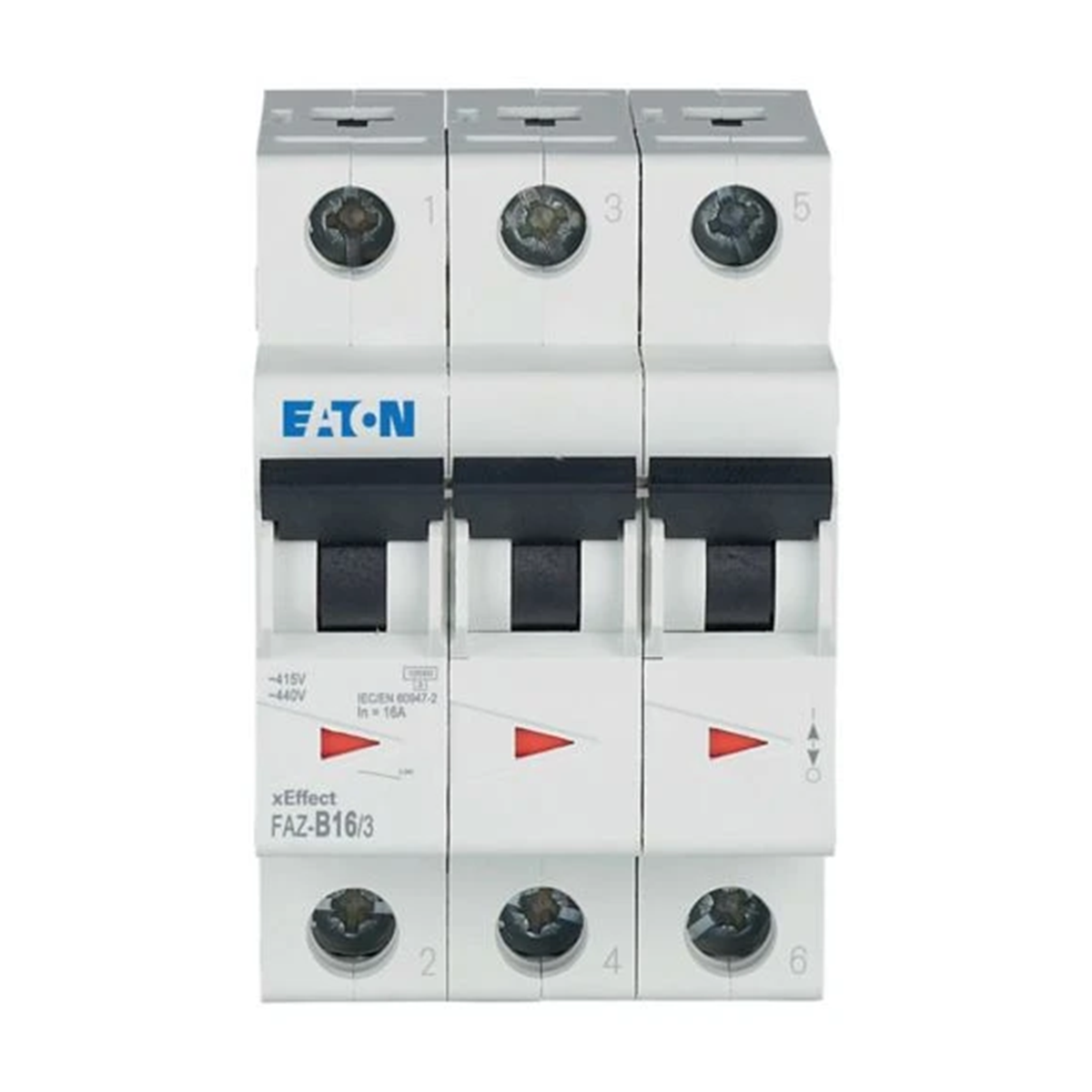

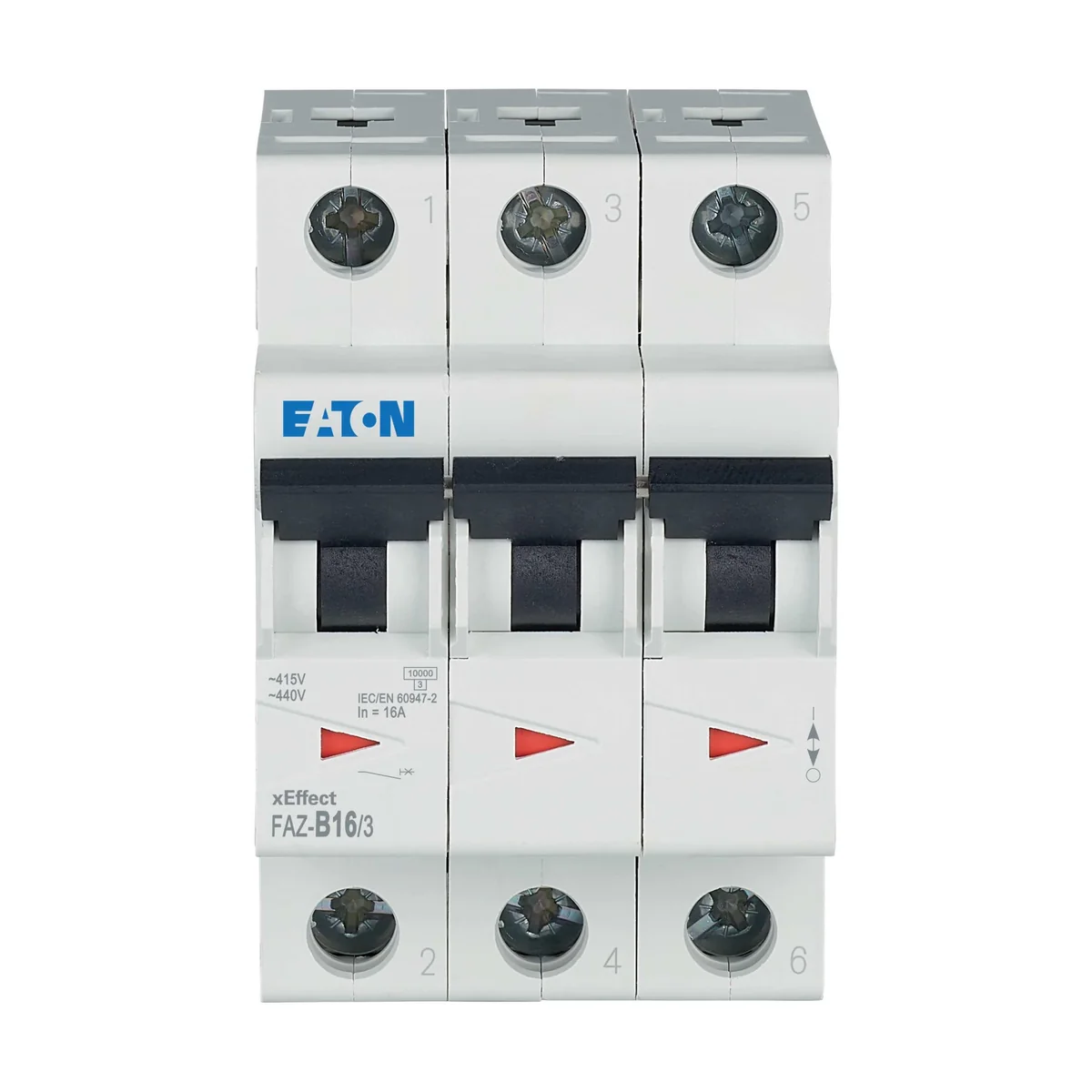

15kA series circuit breaker (3-pole), FAZ-B16/3 278847
local index:
ABB812MOEL
Catalog No:
278847
EAN code:
4015082788476
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
3
Rated current [A]:
16
Type:
FAZ-B16/3
See full description
Price:
37,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories
Technical data
Number of poles
3
Type
FAZ-B16/3
Rated current [A]
16
Other technical data
Release characteristic
B
Number of protected poles
3
Rated voltage
400 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Pollution degree
2
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Number of poles (total)
3
Rated current
16 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Voltage type
AC
Current limiting class
3
Over voltage category
3
Additional equipment possible
Yes
Built-in depth
70.5 mm
Ambient temperature during operating
-25 ... 75 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
40 pcs.
Weight (kg)
0,351
14,247
Volume (m3)
0,000
0,016
Width (m)
0,055
0,180
Length (m)
0,086
0,385
Depth (m)
0,075
0,230
