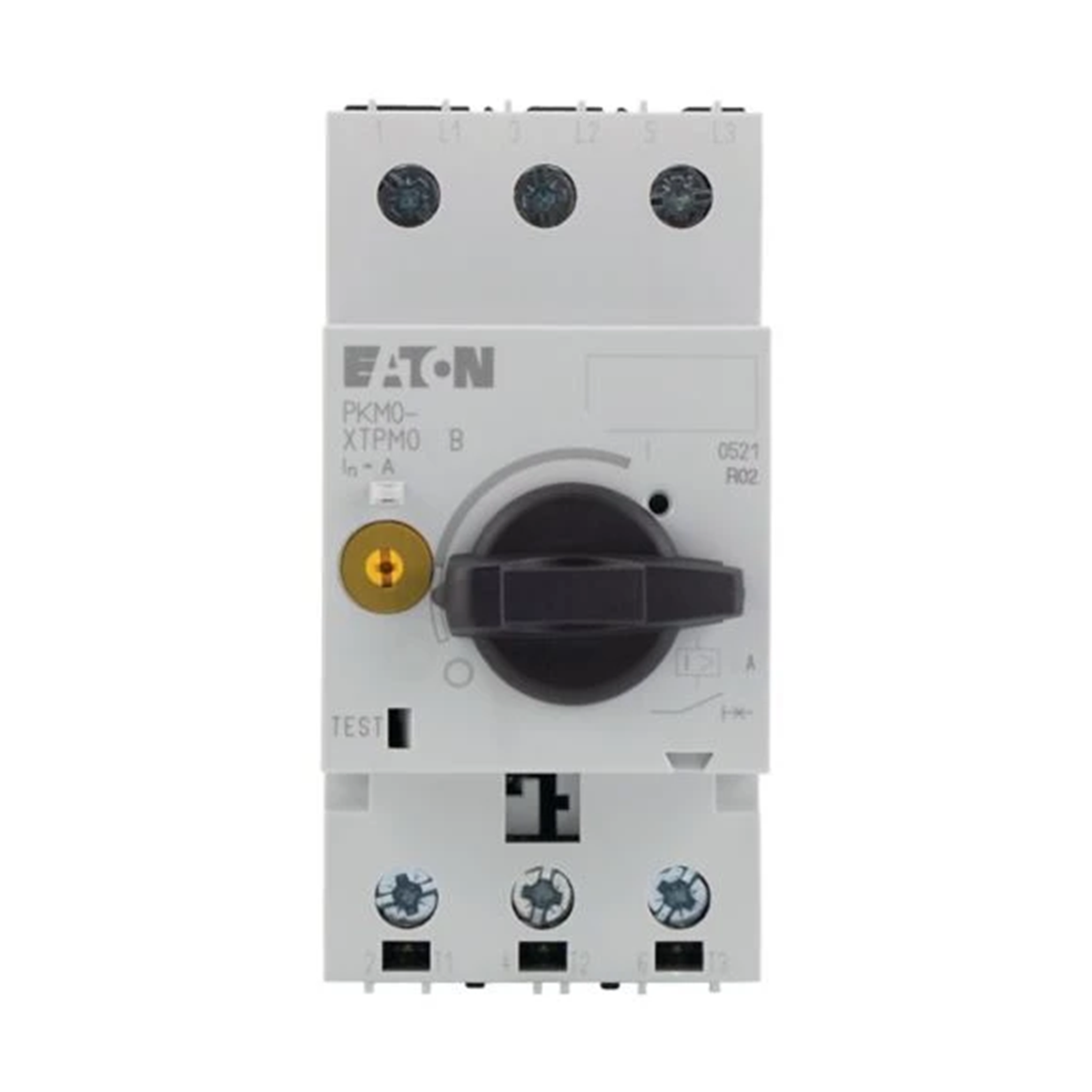

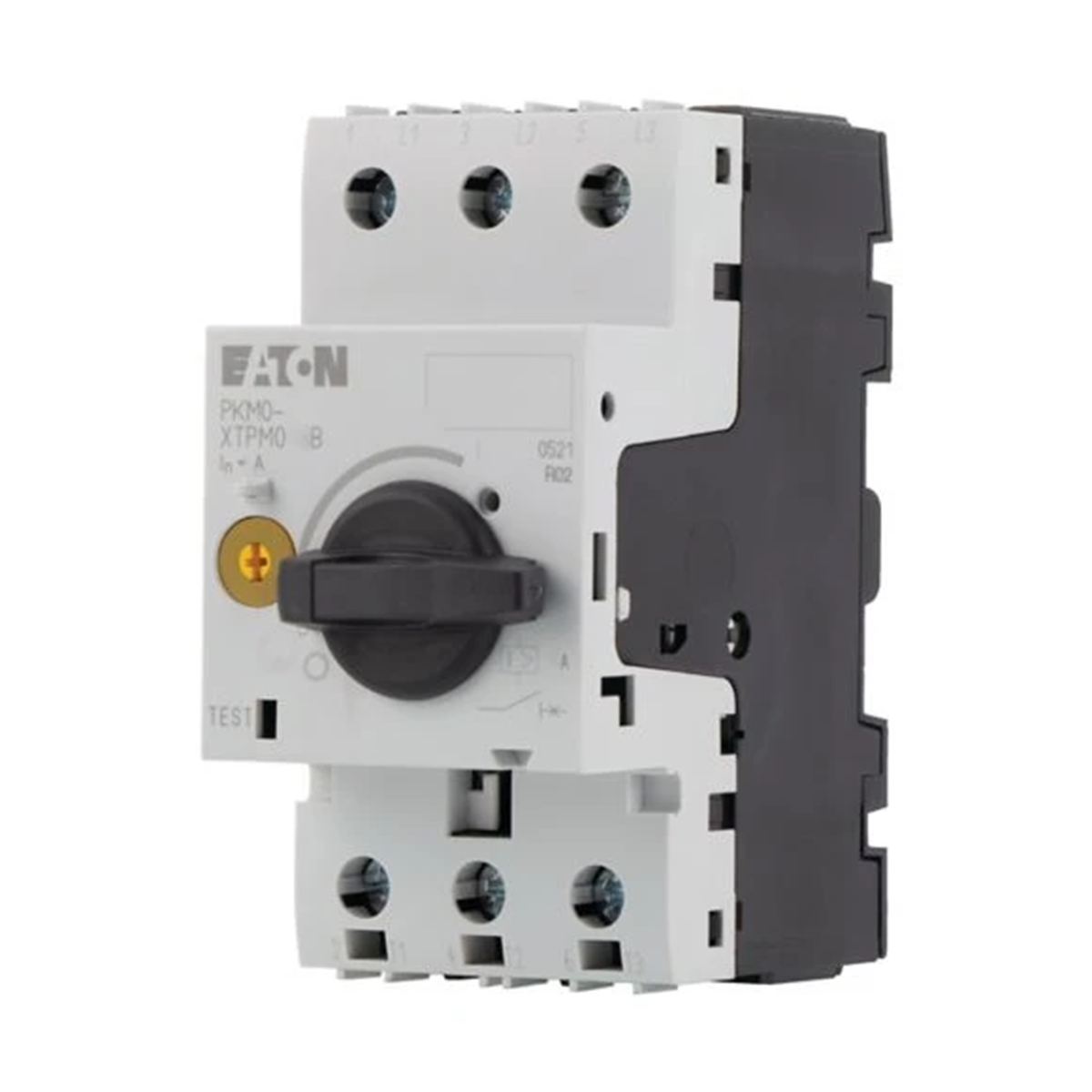

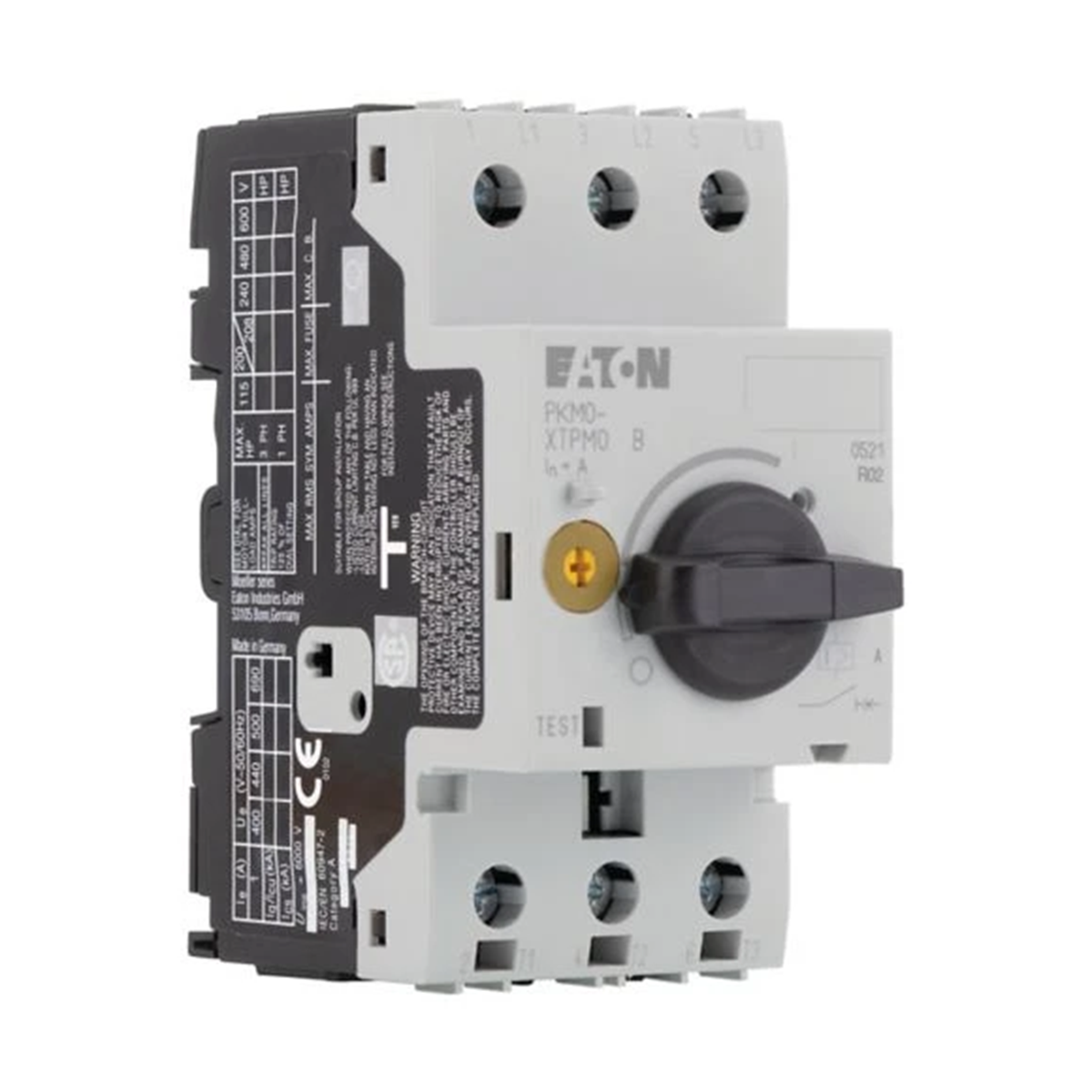

10A motor circuit breaker, PKM0-10 072729
local index:
ASN124MOEL
Catalog No:
072729
EAN code:
4015080727293
Price:
79,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motor circuit breakers for starter systems. Circuit-breakers with short-circuit release, without overload protection.
Technical data
-
Continuous current [A]10
-
Short-circuit release [A]140
Other technical data
-
Overload release current setting0 ... 0 A
-
With thermal overload protectionNo
-
Switch off techniqueMagnetic
-
Rated permanent current Iu10 A
-
Rated operation power at AC-3, 400 V4 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release155 ... 155 A
-
Phase failure sensitiveNo
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V2.2 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC150 kA
-
Height93 mm
-
Depth76 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,288 | 0,303 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,048 |
| Length (m) | 0,076 | 0,080 |
| Depth (m) | 0,093 | 0,097 |
