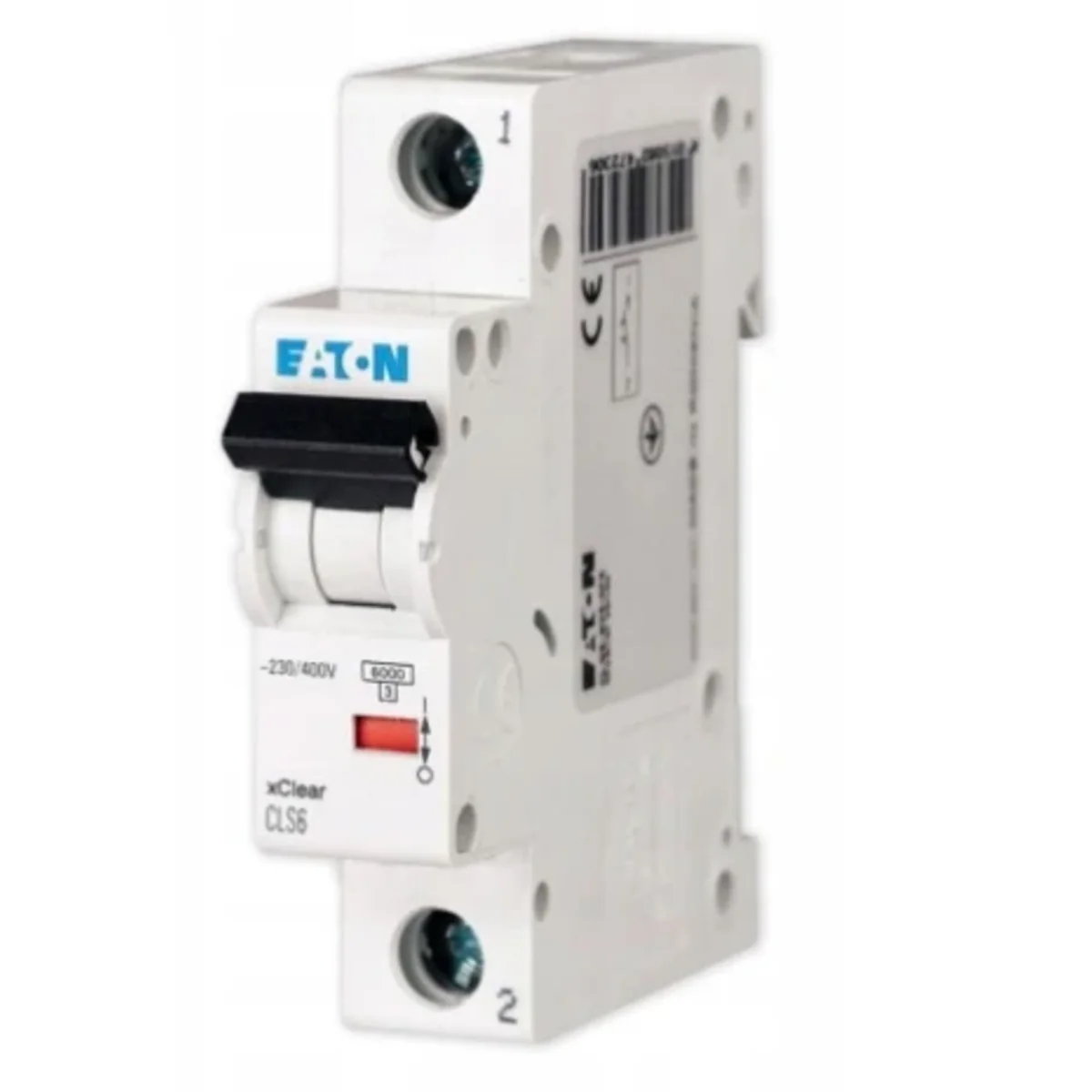

1-pole miniature circuit breaker, CLS6-C40-DP 270356

Name: 1-pole miniature circuit breaker, CLS6-C40-DP
Brand: EATON
SKU: ABC215MOEL
Price: 17.26 PLN
Availability: InStock

Indeks lokalny:

ABC215MOEL

Numer katalogowy:

270356

Kod EAN:

4015082703561

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 1

Rated current [A]: 40

Zobacz cały opis

Cena:

17,26 zł

gross / szt.

(w tym VAT 23%)

Dostępne 4 szt.

Ilość szt.

(wielokrotność:

1

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta

Opis produktu

CLS6 circuit breaker. Characteristic C, rated short-circuit breaking capacity 6 kA.

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Frequency

50 ... 60 Hz
Do instalacji podtynkowych

No
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of poles (total)

1
Rated current

40 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Voltage type

AC
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
