140630
0
ZUG-G/22 connector, yellow A00-1001
local index:
TES092POKO
Catalog No:
A00-1001
EAN code:
5902626100056
Manufacturer:
POKÓJ
Color: Yellow
Price:
1,19 €
gross / pcs.
(including VAT 23%)
Last lowest price:
2,98 € gross
Price history for this product
1. 1,19 € gross / pcs.
2. Last lowest price:
2,98 €
3. Base price:
3,74 €
-68%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
3,74 € gross
-68%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

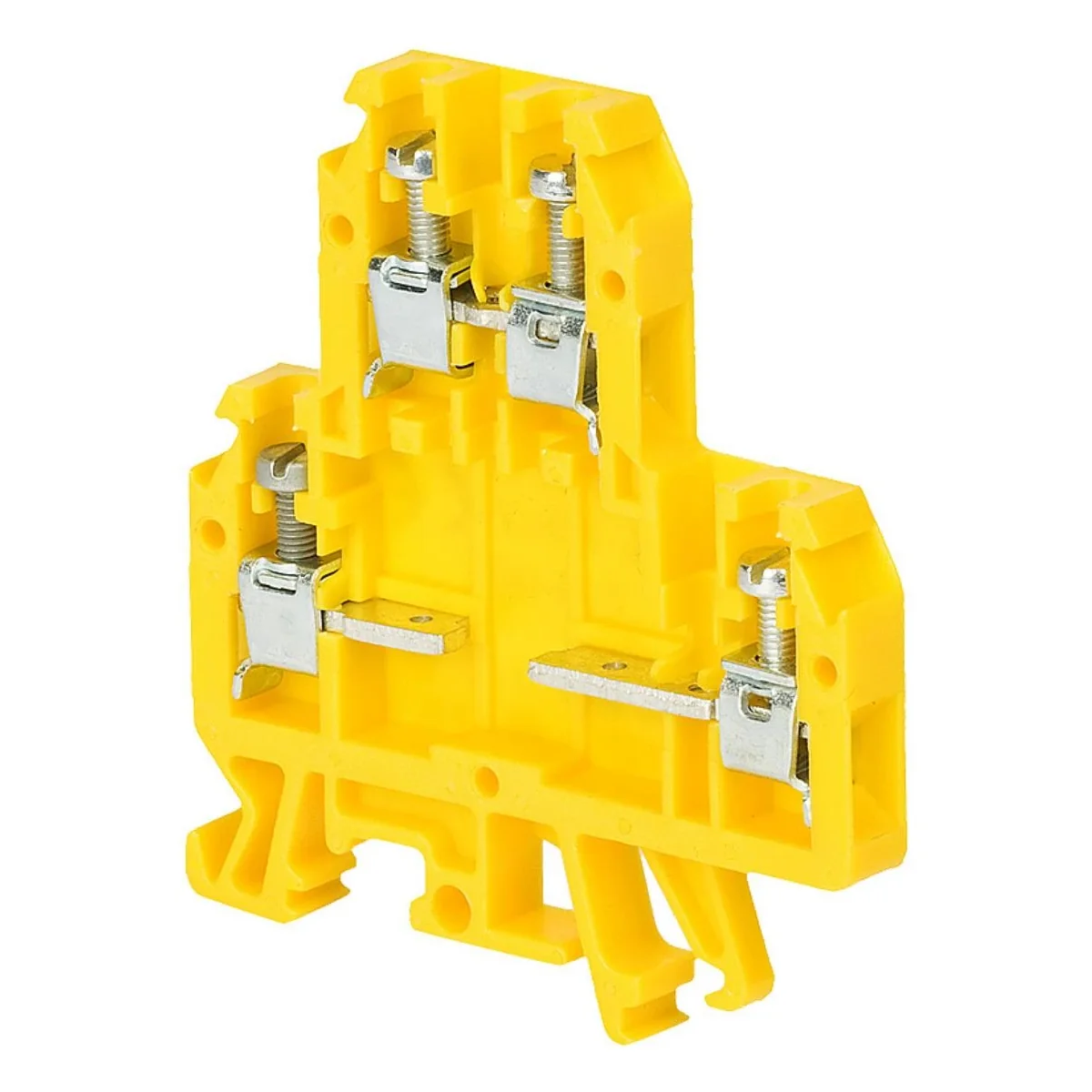

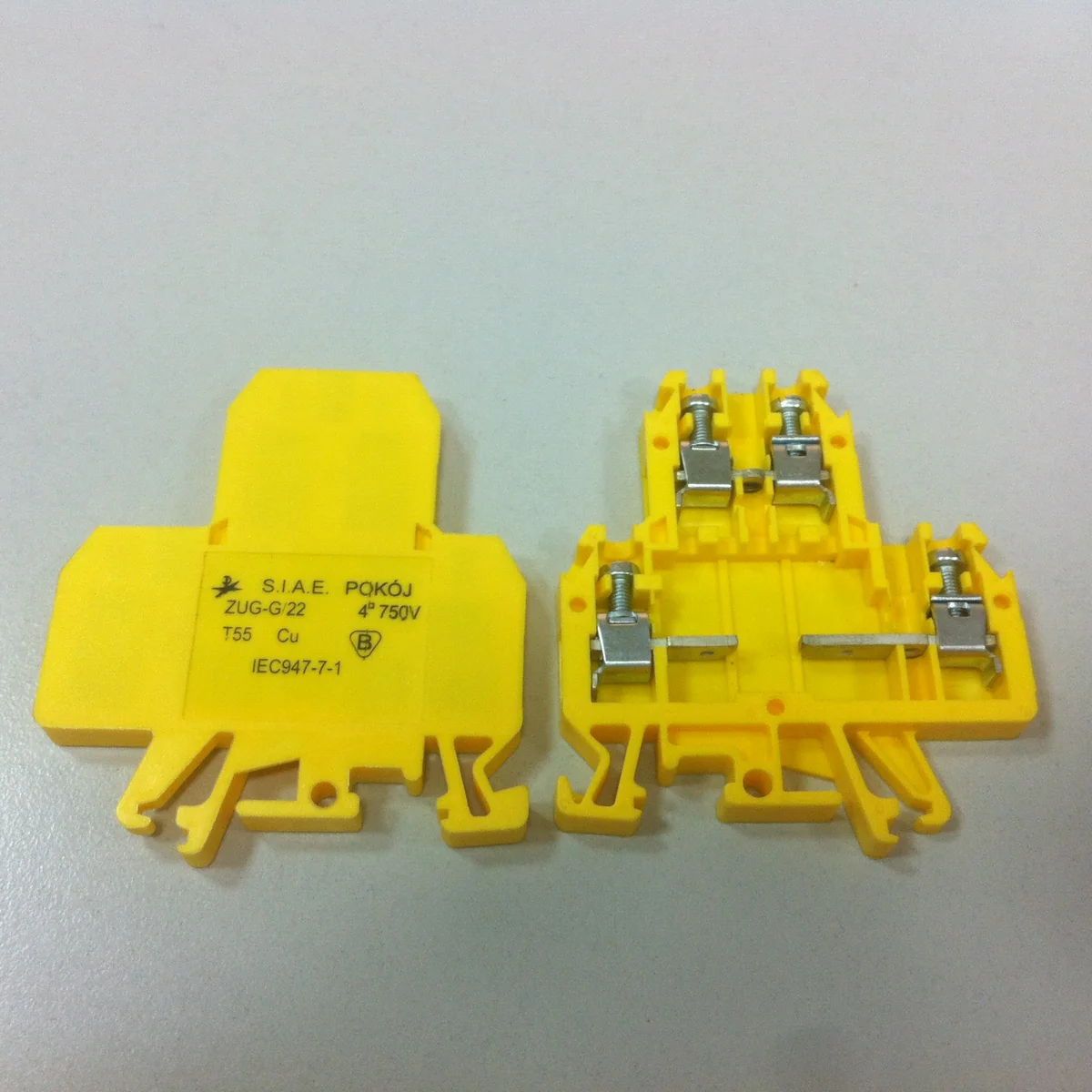

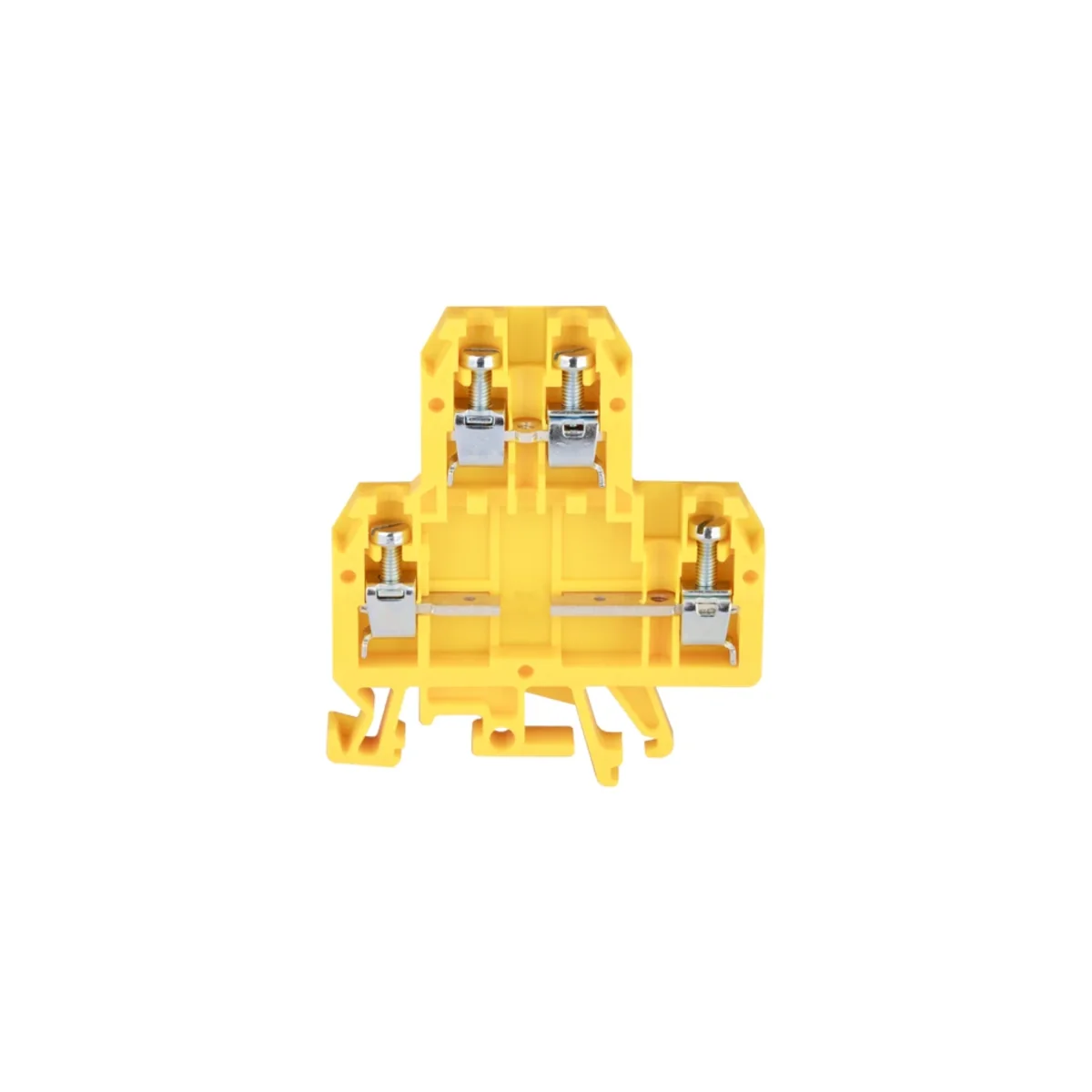

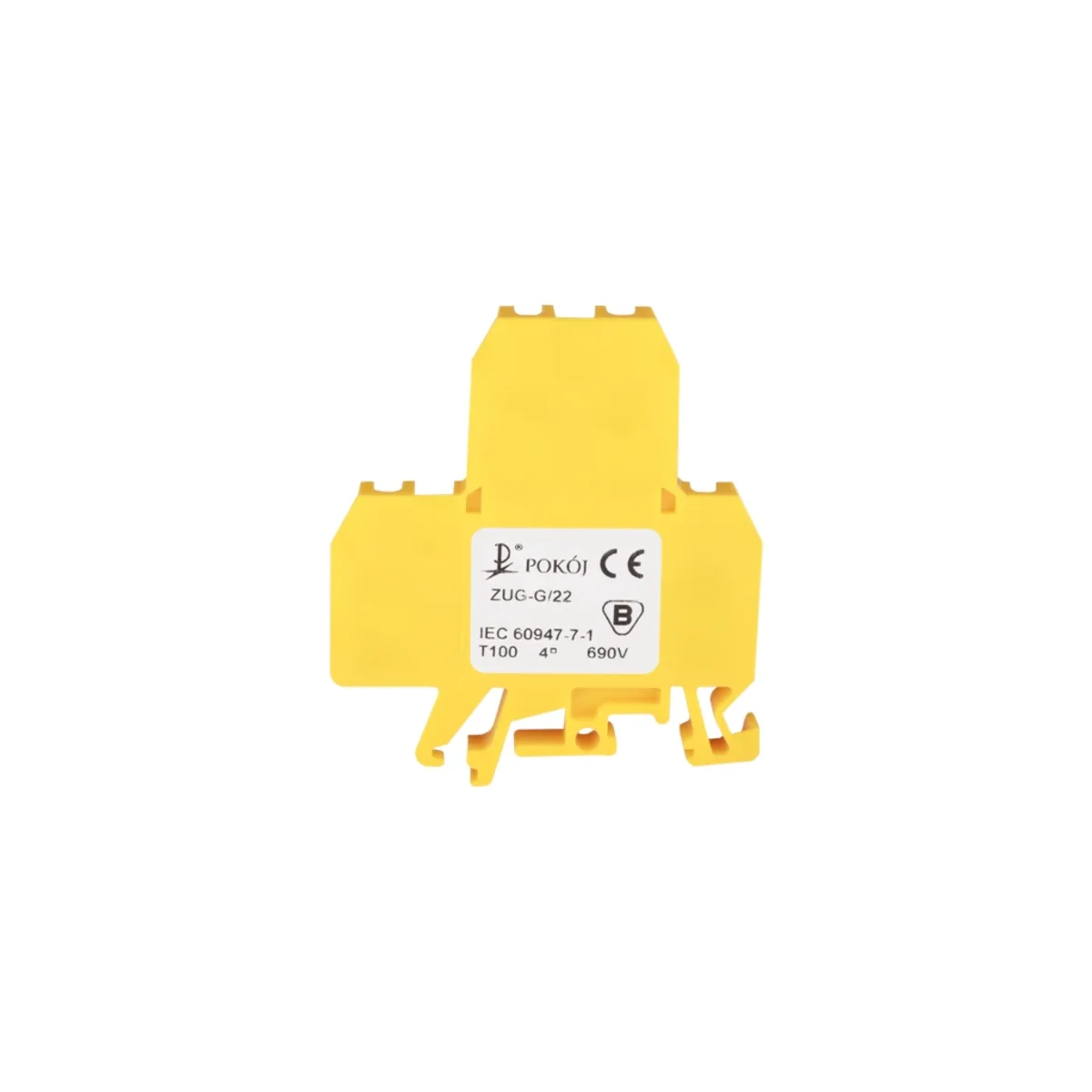

Connector ZUG-G/22, yellow
Technical data
-
ColorYellow
-
PKWIU27.12.40.0
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section multi-wired0.5 ... 4 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Screw connection
-
Number of levels2
-
Internally connected stagesNo
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu67 mm
-
Closing plate requiredYes
-
Type of componentOther
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section solid-core0.5 ... 6 mm²
-
Rated current In32 A
-
Type of electrical connection 1Screw connection
-
Connection positionSideways
-
Number of clamp positions per level2
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension6.4 mm
-
Length56 mm
-
ColourYellow
