ZUG-G/21 double-deck coupler, yellow A00-0001
local index:
TES187POKO
Catalog No:
A00-0001
EAN code:
5902626100025
Price:
3,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

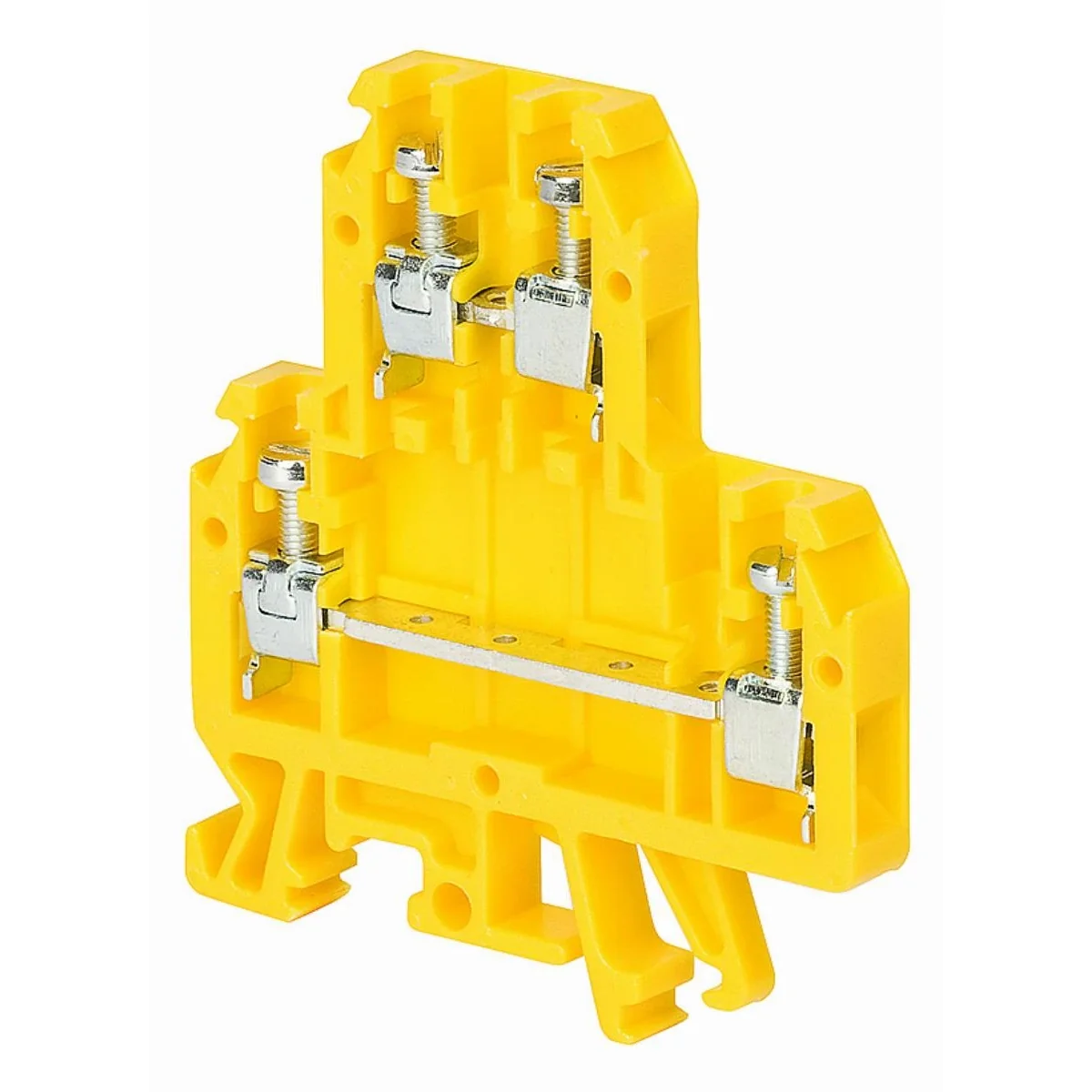

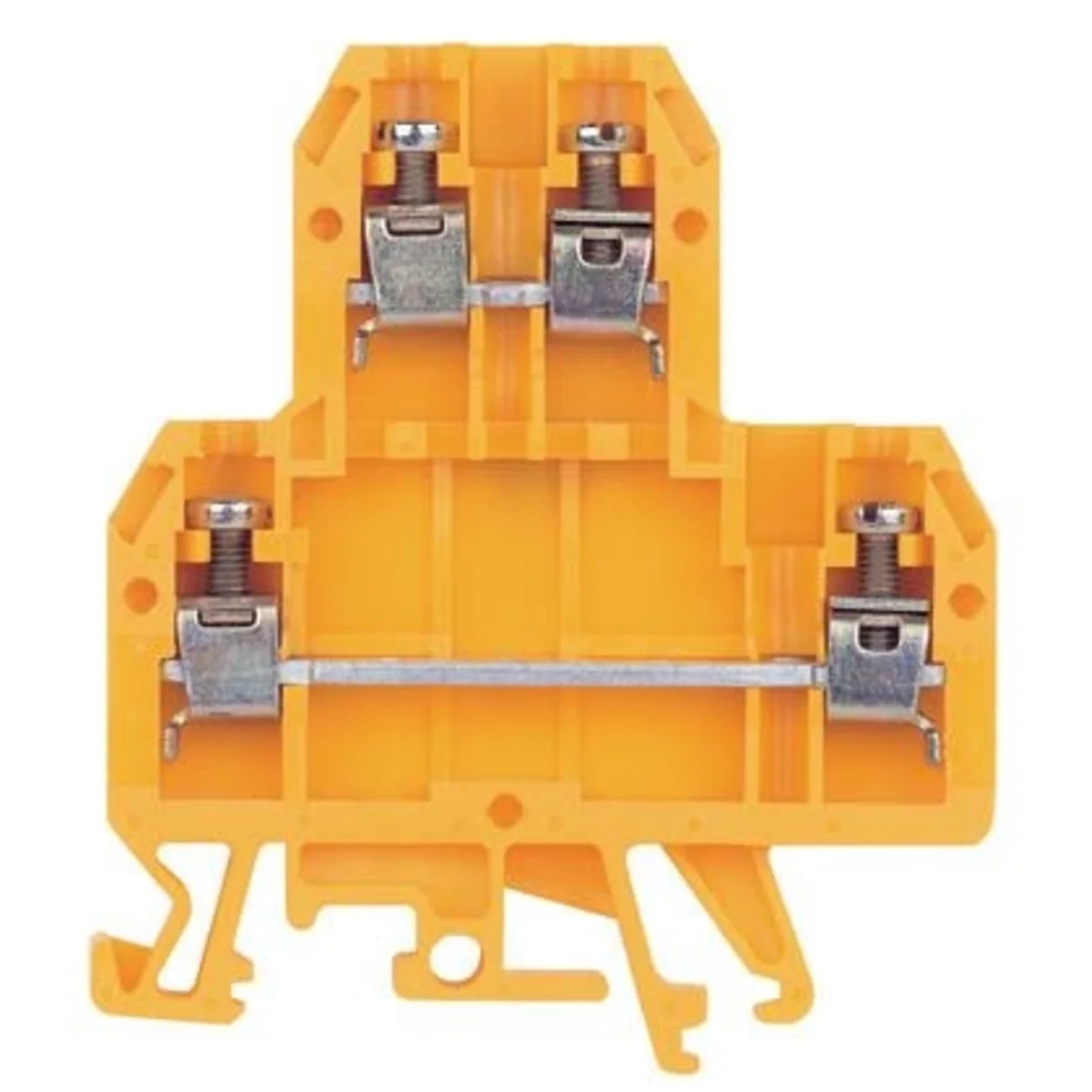

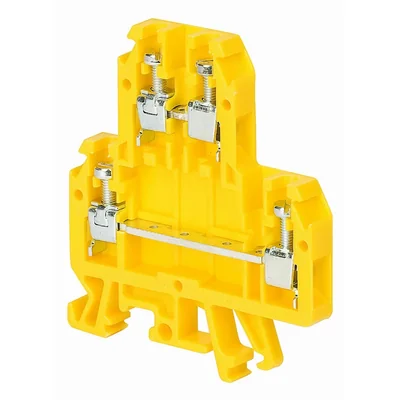

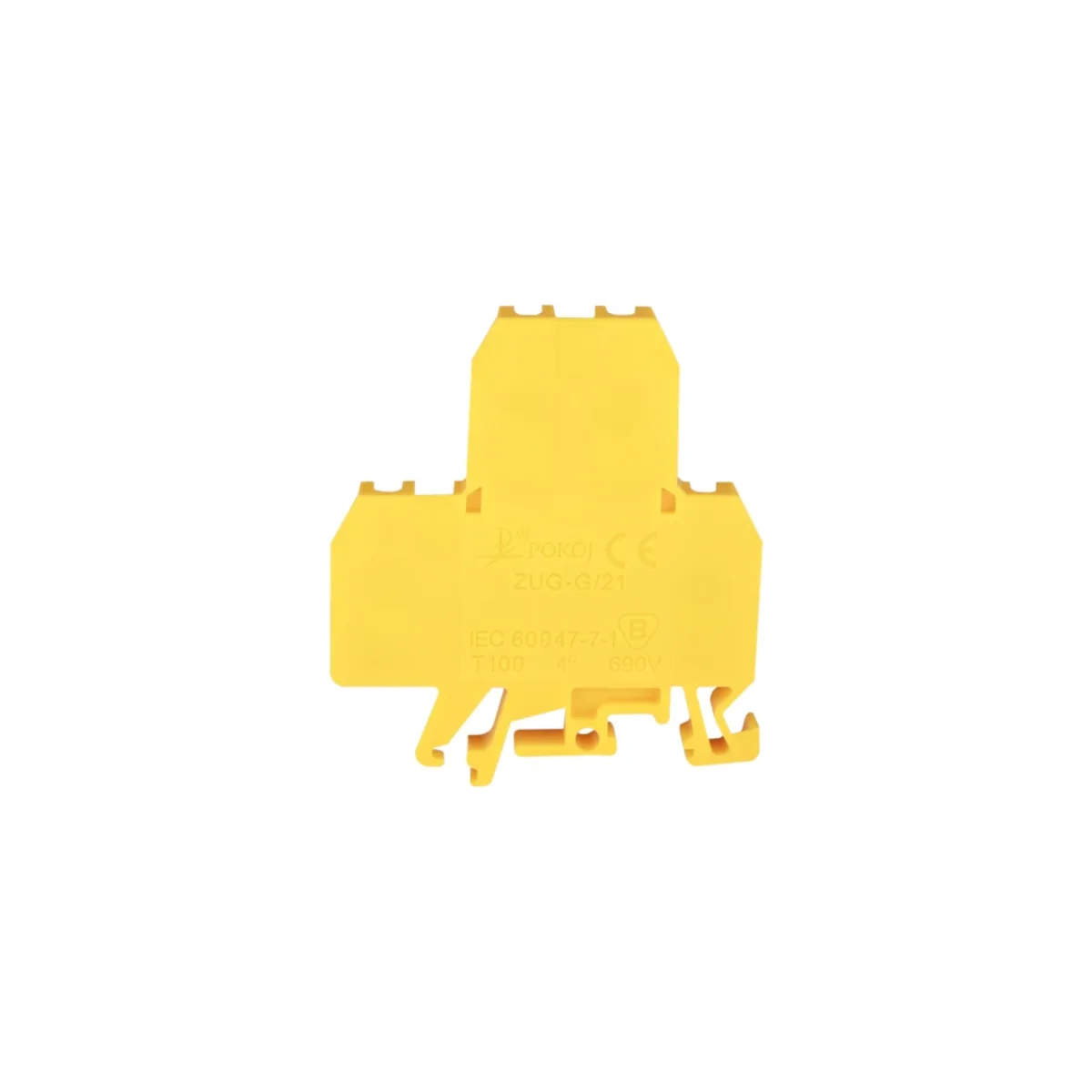

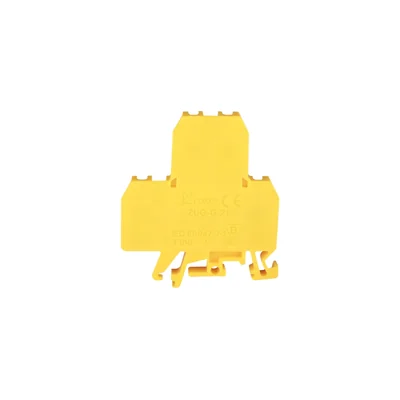

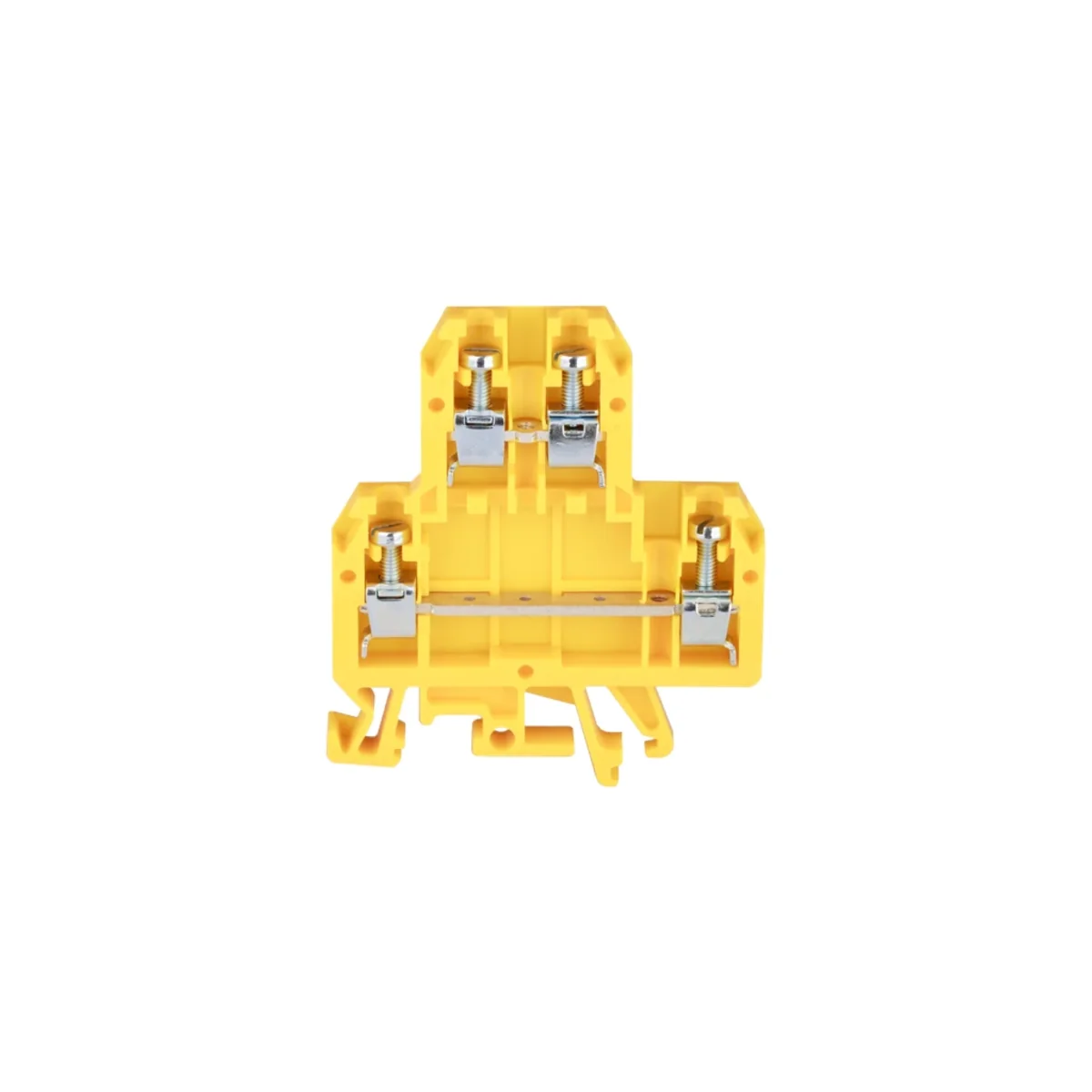

ZUG-G/21 double-deck coupler, yellow
Technical data
-
ColorYellow
-
PKWIU27.12.40.0
-
Accurate colorYellow
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section solid-core0.5 ... 4 mm²
-
Rated current In32 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu67 mm
-
Explosion-tested version 'Ex e'No
-
ColourYellow
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section multi-wired0.5 ... 4 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Screw connection
-
Number of levels2
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension6.4 mm
-
Length56 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
