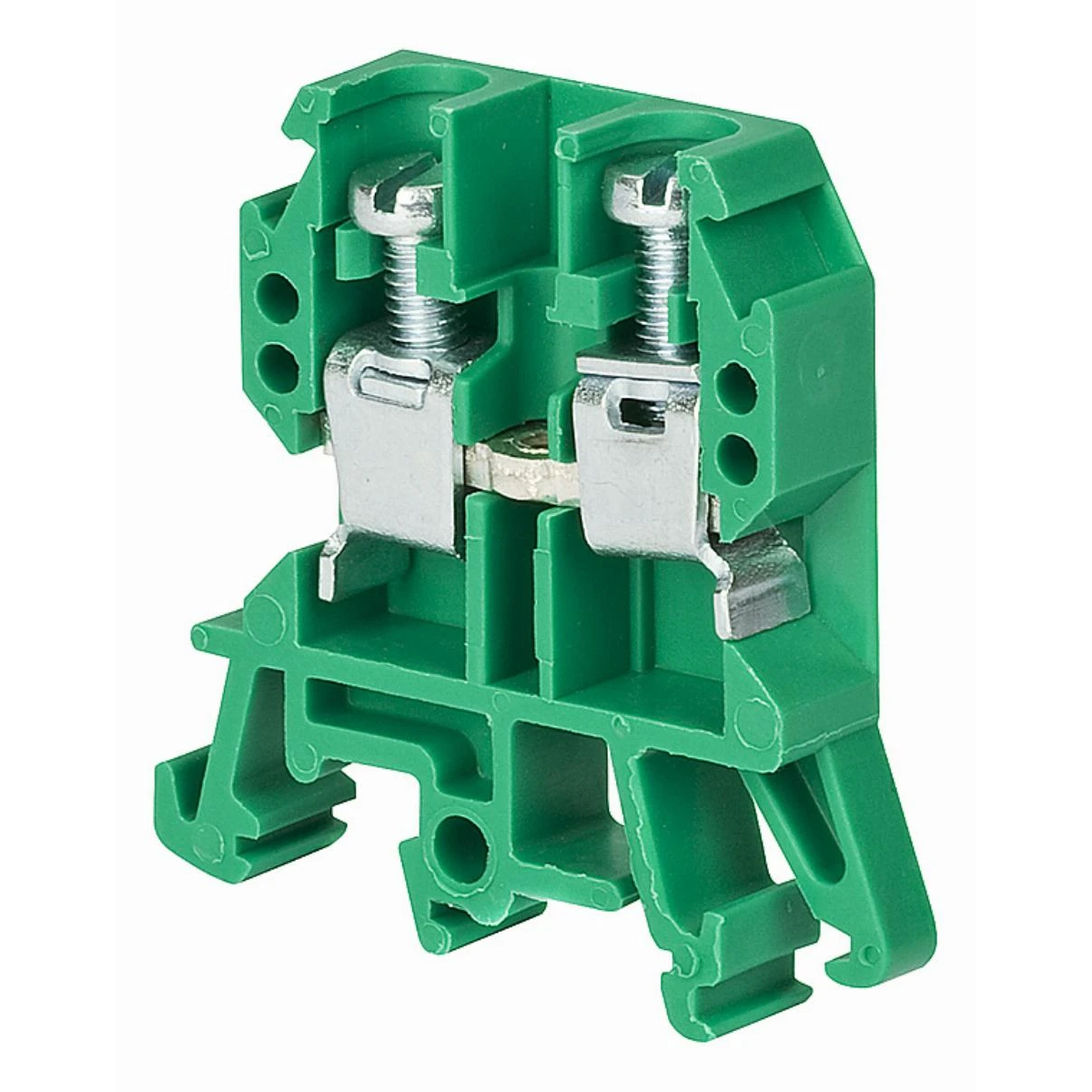

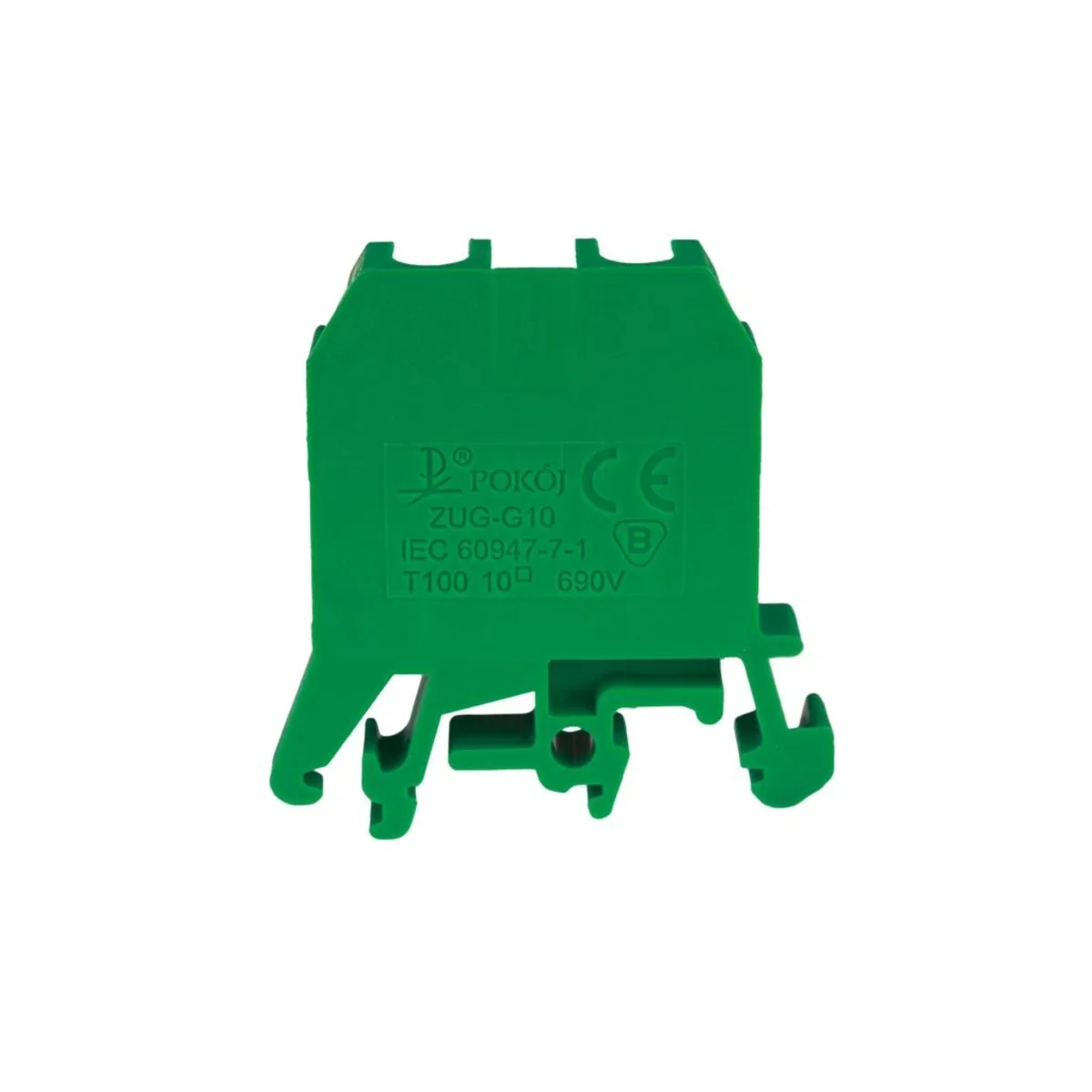

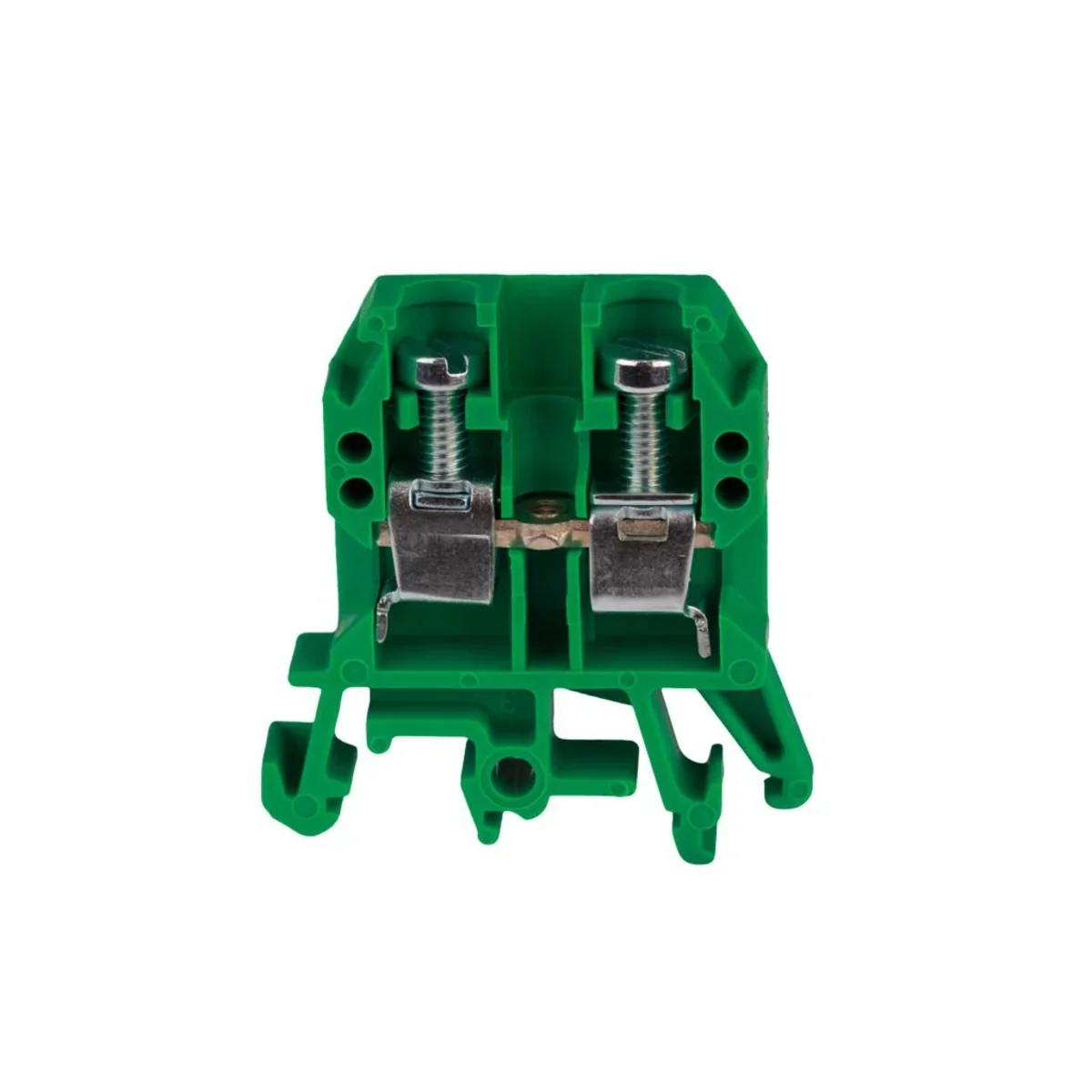

ZUG-G10 connector green A11-0205

local index:
TES029POKO
Catalog No:
A11-0205
EAN code:
5902626101671
Manufacturer: POKÓJ
Color: Green
Accurate color: Green
Price:
1,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 14 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ZUG-G10 connector green

Technical data

  • Color
    Green
  • PKWIU
    27.12.40.0
  • Accurate color
    Green

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 6 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 10 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    45 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Green
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 6 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 6 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 100 °C
  • Width/grid dimension
    8 mm
  • Length
    42 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
