Connecting cables and wires
Connectors
Rail connectors

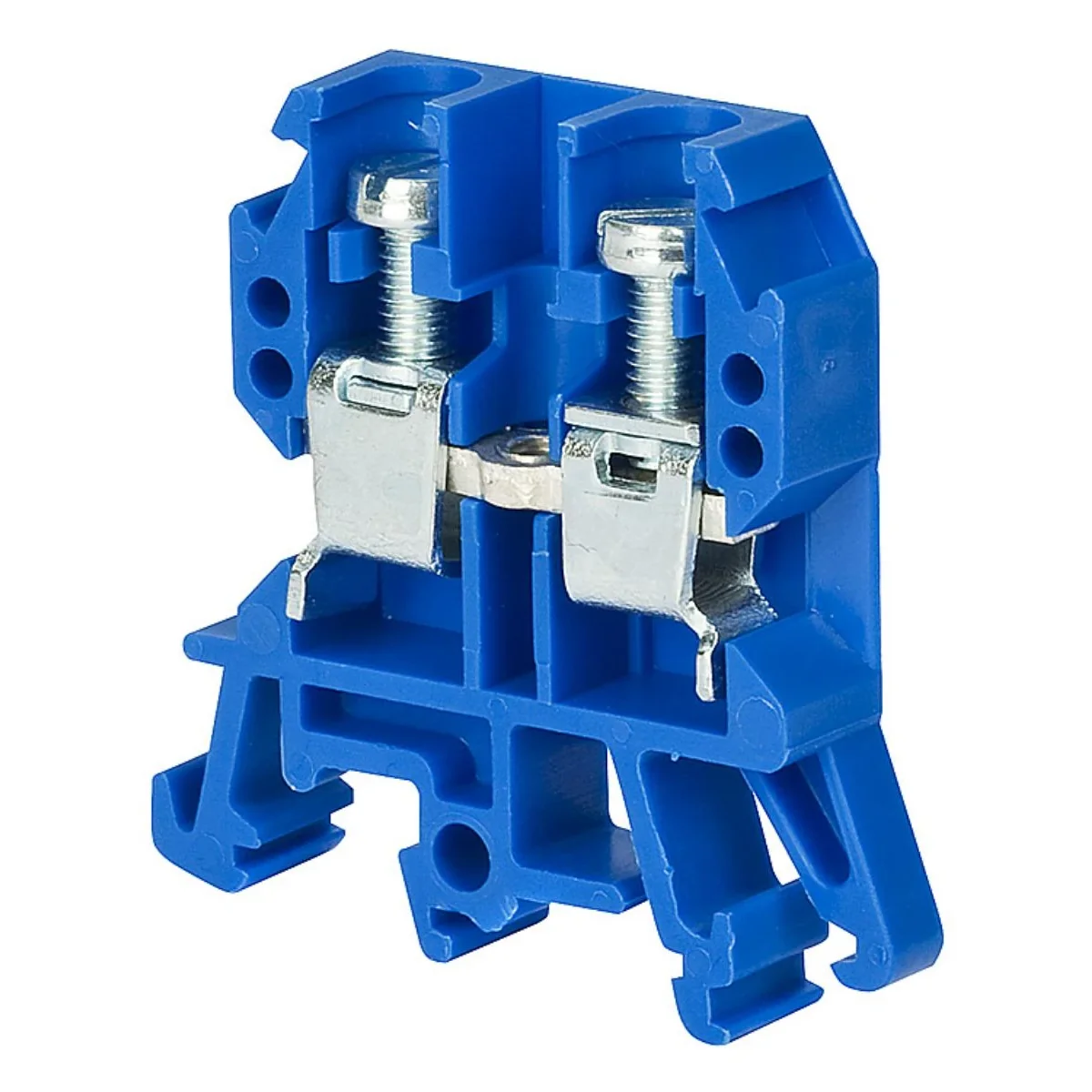

ZUG-G10 connector blue A11-0206
local index:
TES030POKO
Catalog No:
A11-0206
EAN code:
5902626101688
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
Blue
Pieces in the package:
20
See full description
Price:
22,44 €
gross / pkg.
(including VAT 23%)
1,12 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
ZUG-G10 connector blue
Technical data
Color
Blue
PKWIU
27.12.40.0
Pieces in the package
20
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.5 ... 6 mm²
Connectable conductor cross section solid-core
0.5 ... 10 mm²
Rated current In
57 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
45 mm
Explosion-tested version 'Ex e'
No
Colour
Blue
Connectable conductor cross section fine-strand with cable end sleeve
0.5 ... 6 mm²
Connectable conductor cross section multi-wired
0.5 ... 6 mm²
Rated voltage
690 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
-25 ... 100 °C
Width/grid dimension
8 mm
Length
42 mm
Closing plate required
Yes
Internally connected stages
No
