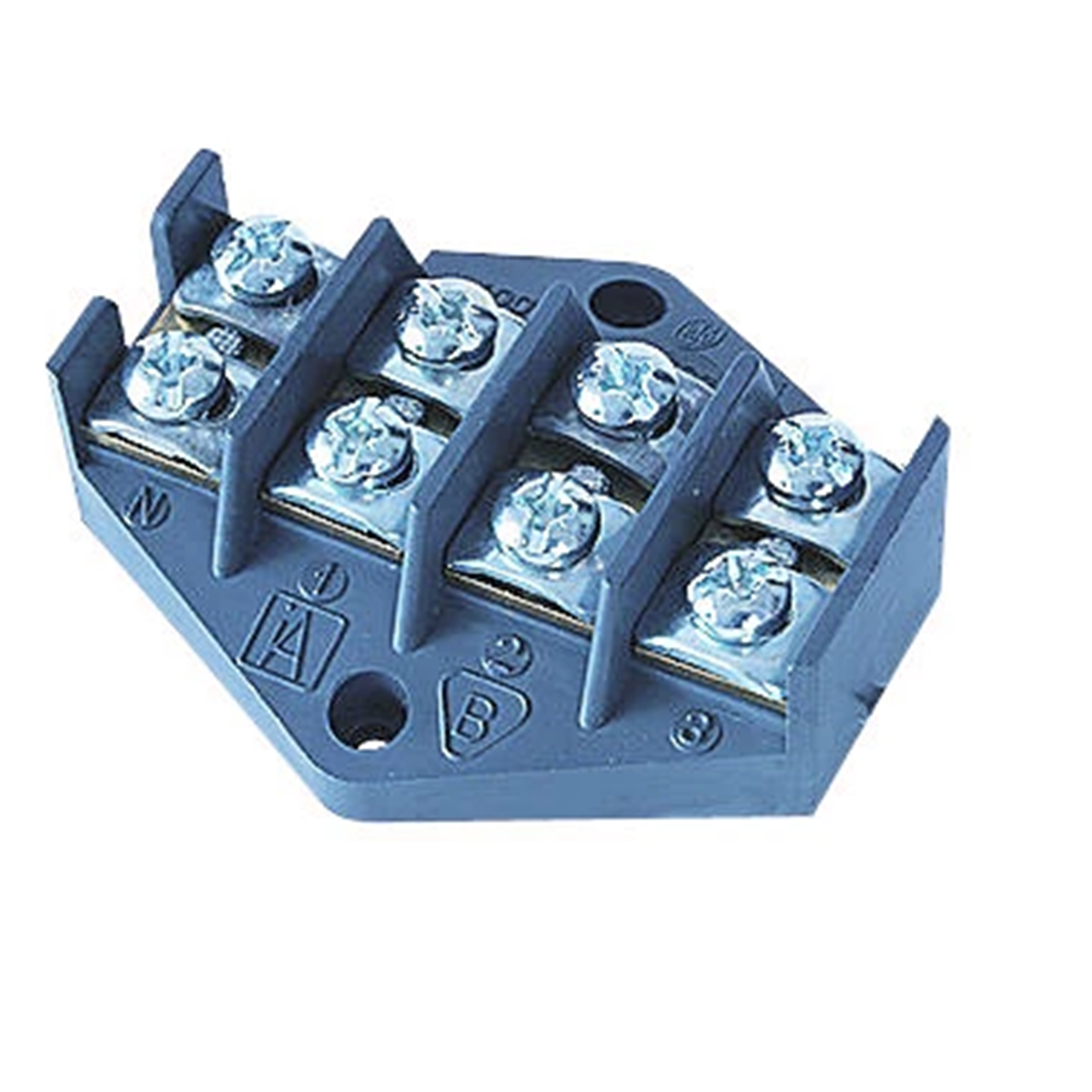

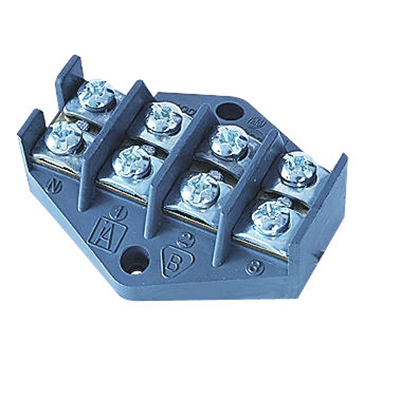

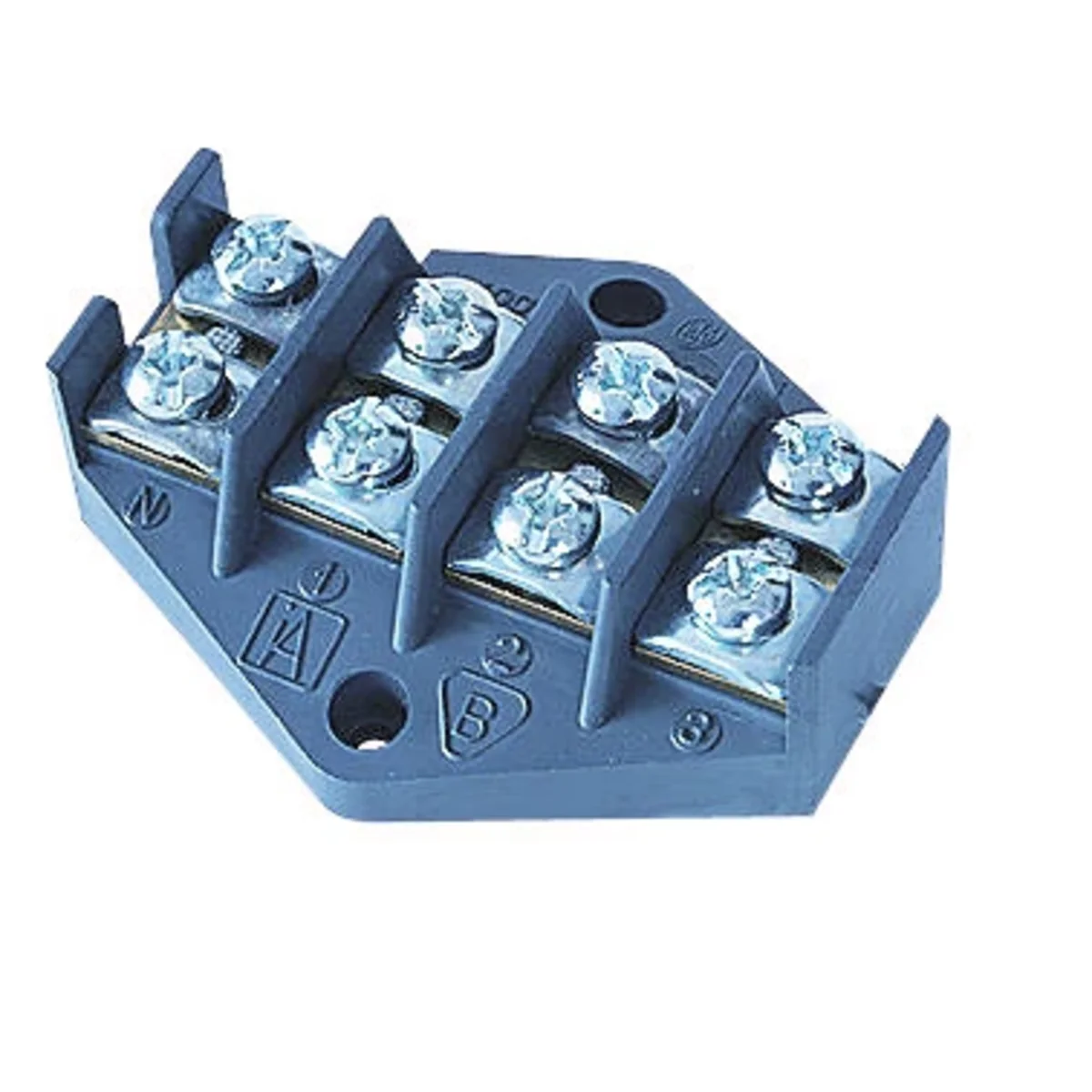

ZPT 10mm2 4-way branch plate 83005007
local index:
TEG020SIME
Catalog No:
83005007
EAN code:
5907813231230
Price:
1,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
ZPT series branch plate, 10, 0mm2, 4 tracks
Technical data
-
Depth [mm]44
-
Width [mm]56
-
Accurate colorBlack
-
ColorBlack
-
Libra61.6
-
PKWIU27.33.13.0
Other technical data
-
Drill hole distance centrically44 mm
-
Connectable conductor cross section fine-strand without cable end sleeve6 ... 25 mm²
-
Connectable conductor cross section solid-core6 ... 25 mm²
-
Rated current In40 A
-
Type of electrical connection 1Screw connection
-
Connection positionSideways
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
Width/grid dimension56 mm
-
Length67 mm
-
ColourBlack
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired6 ... 25 mm²
-
Rated voltage400 V
-
Type of electrical connection 2Screw connection
-
Number of poles4
-
Mounting methodDirect mounting
-
Operating temperature-25 ... 100 °C
-
Wysokość przy najniższym sposobie montażu44 mm
-
Closing plate requiredNo
-
TransparentNo
