Connecting cables and wires
Connectors
Rail connectors

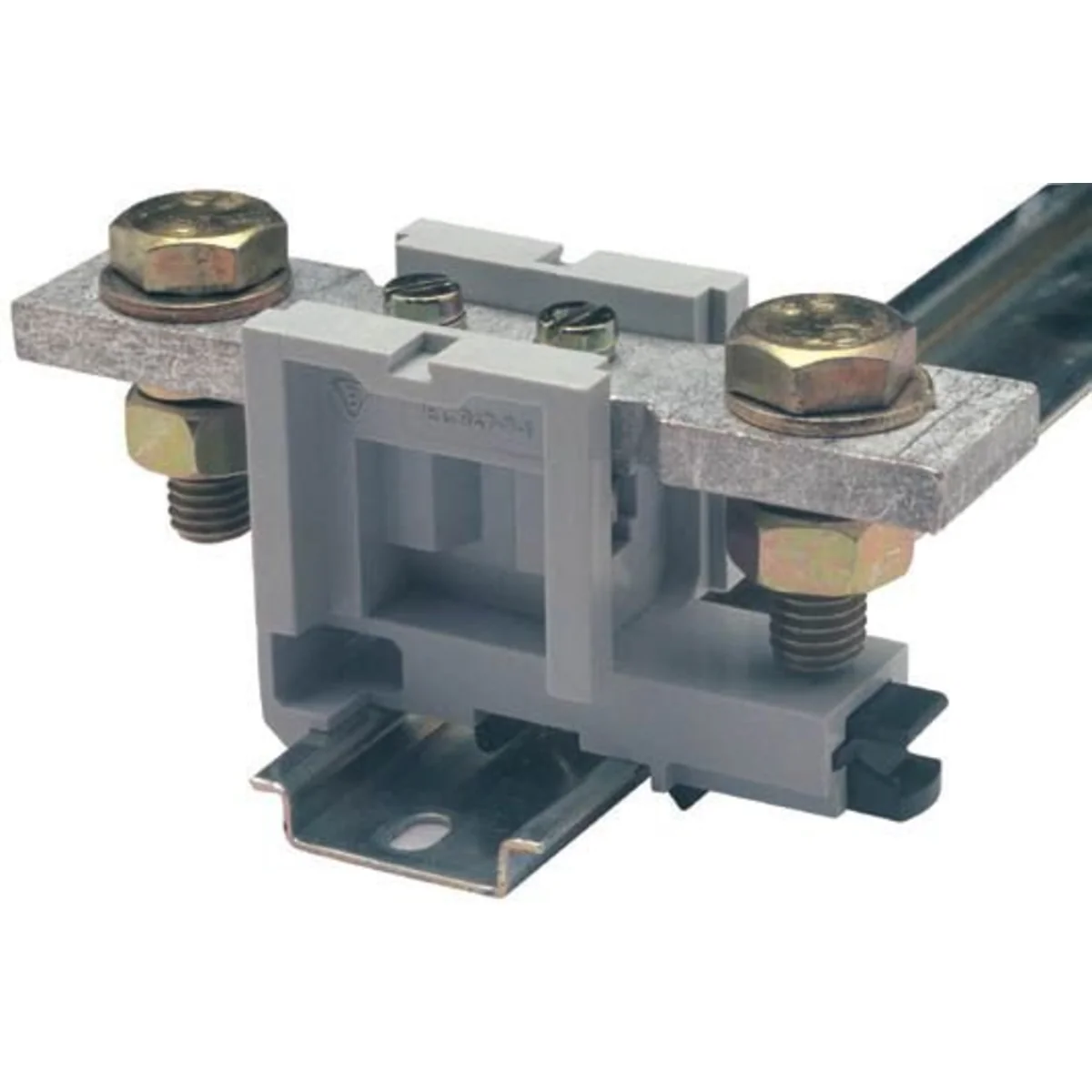

ZPK-K 120 connector yellow A11-1431
local index:
TES070POKO
Catalog No:
A11-1431
EAN code:
5902626102005
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
Yellow
Accurate color:
Yellow
See full description
Price:
14,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
ZPK-K 120 connector yellow
Technical data
Color
Yellow
PKWIU
27.12.40.0
Accurate color
Yellow
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0 ... 120 mm²
Connectable conductor cross section solid-core
0 ... 120 mm²
Rated current In
269 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
63 mm
Explosion-tested version 'Ex e'
No
Colour
Yellow
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 120 mm²
Connectable conductor cross section multi-wired
0 ... 120 mm²
Rated voltage
690 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
Other
Operating temperature
-25 ... 100 °C
Width/grid dimension
38.5 mm
Length
106 mm
Closing plate required
No
Internally connected stages
No
See more >>
