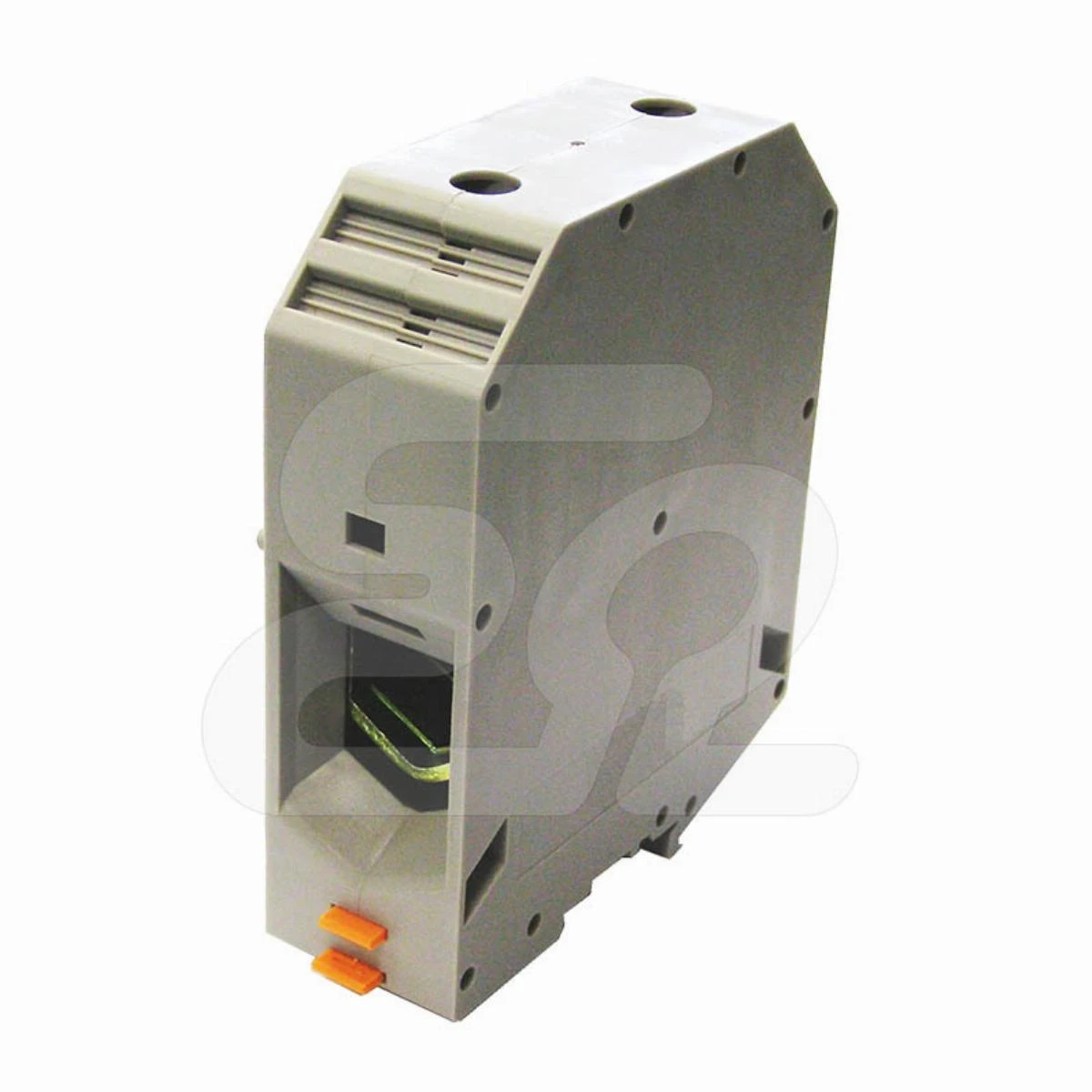

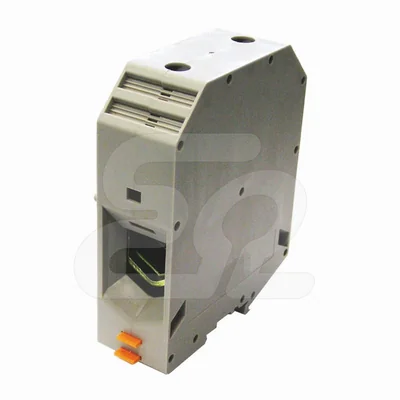

ZJU-24 connector R34RR-07010001003

local index:
TES011ERGO
Catalog No:
R34RR-07010001003
Manufacturer: ERGOM
short name: ZJU-240
Price:
37,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ZJU-24 connector

Technical data

  • short name
    ZJU-240
  • PKWIU
    27.90.33.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    70 ... 240 mm²
  • Connectable conductor cross section solid-core
    70 ... 240 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 55 °C
  • Width/grid dimension
    37 mm
  • Closing plate required
    No
  • With integrated feed-through flange
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    70 ... 195 mm²
  • Rated current In
    415 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey

Bulk packaging

A kind of package Sztuka
Quantity 3 pcs.
Weight (kg) 0,510
