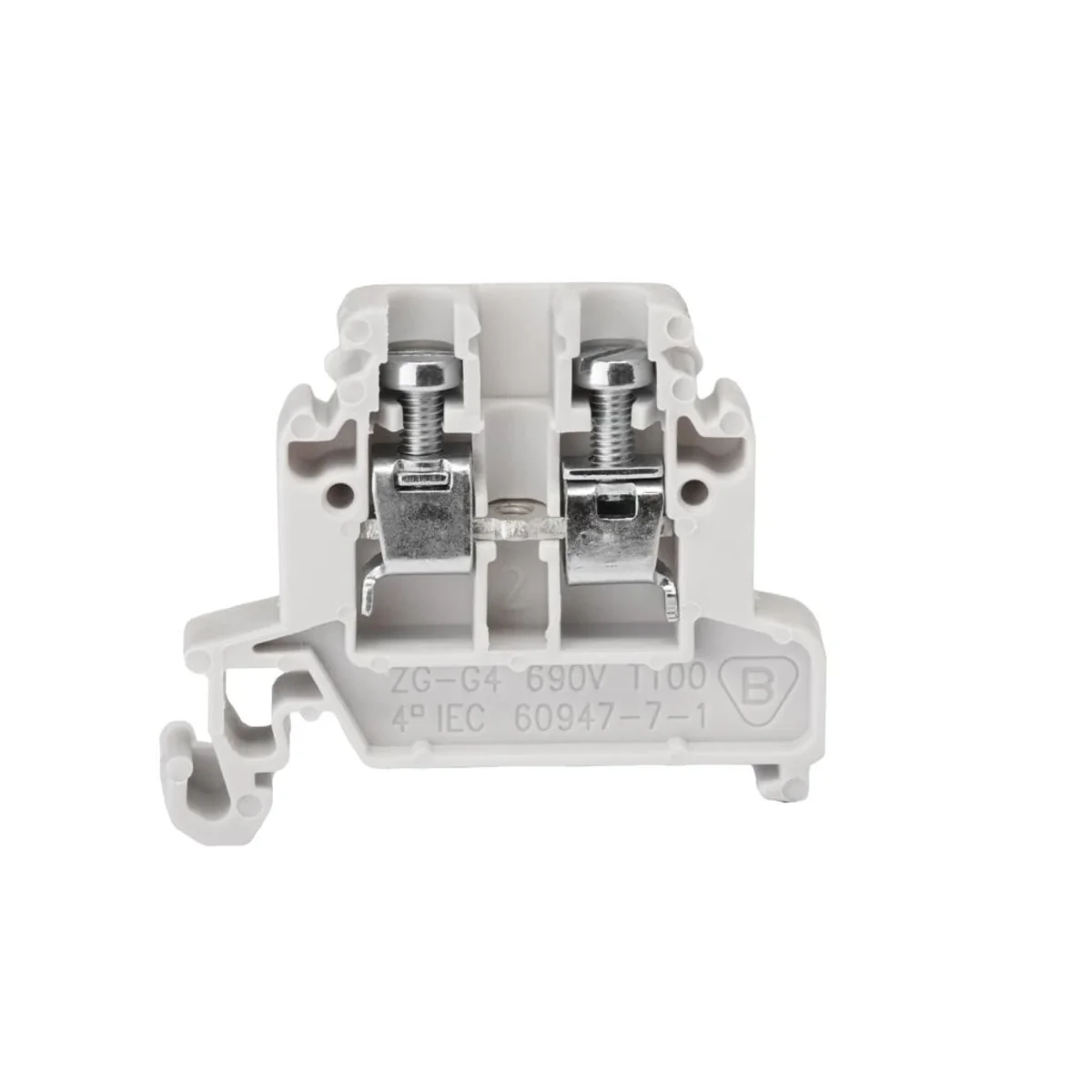

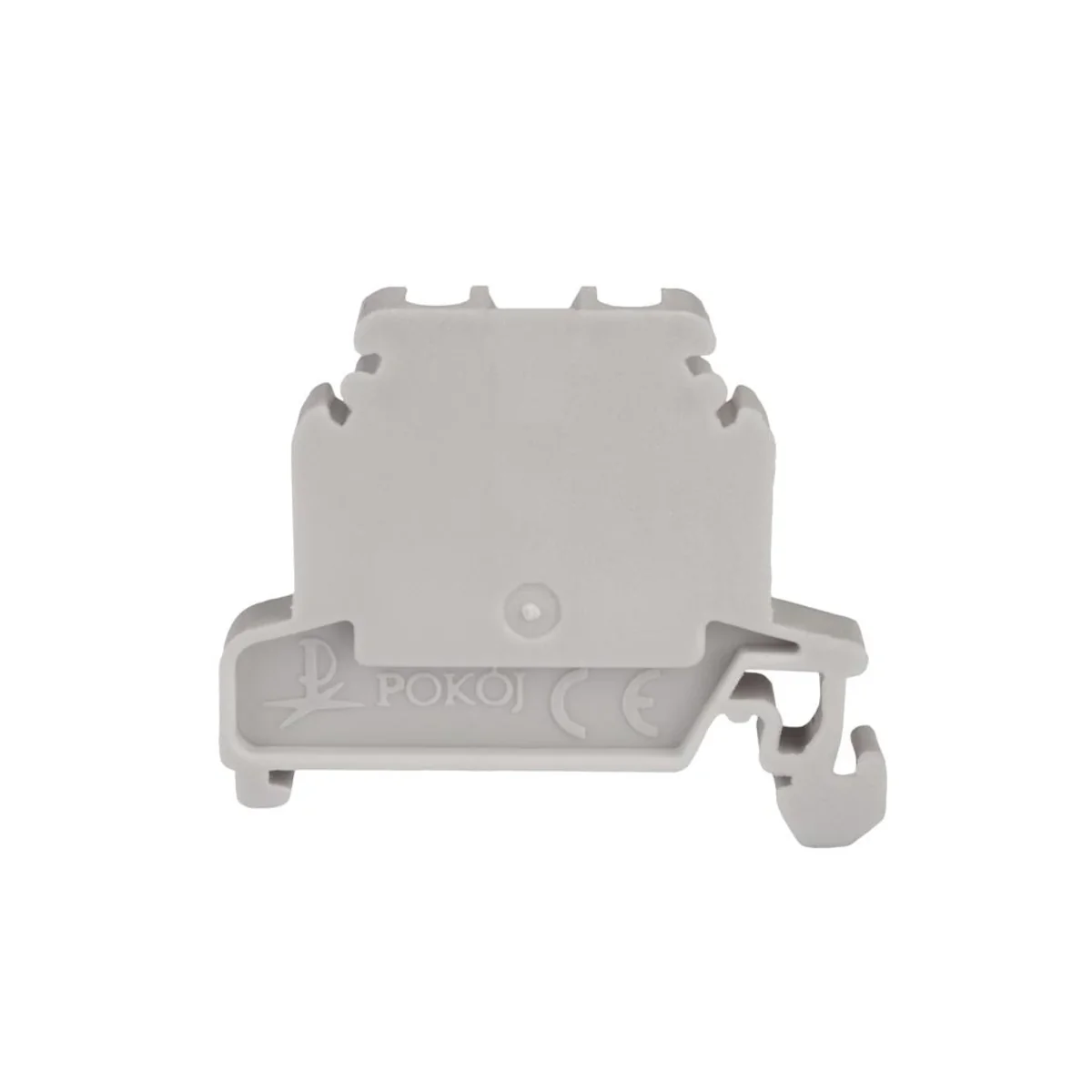

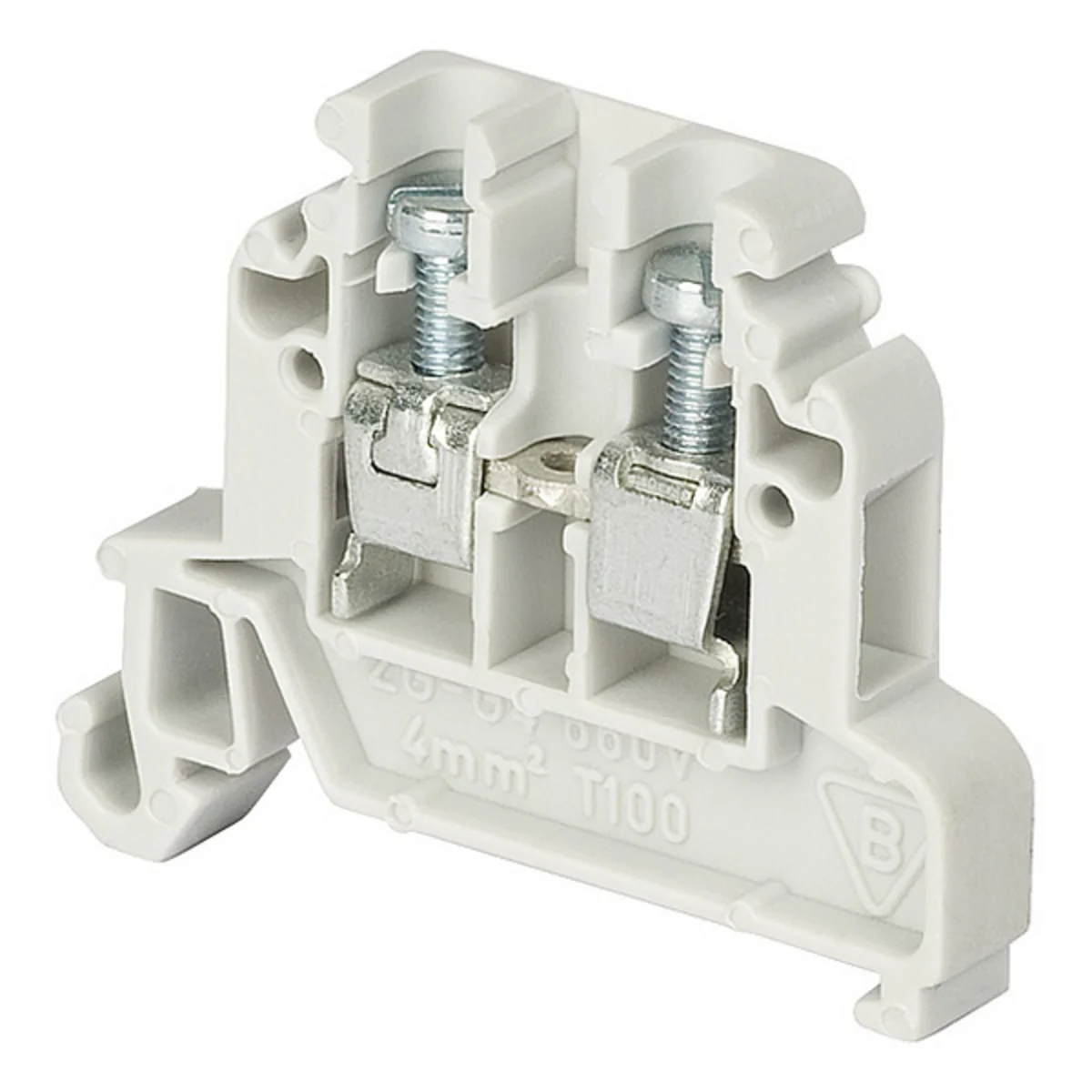

ZG-G4 threaded nipple, grey A11-8208
local index:
TES193POKO
Catalog No:
A11-8208
EAN code:
5902626137014
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
Gray
Accurate color:
Gray
See full description
Price:
0,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 200 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
ZG-G4 threaded nipple, grey
Technical data
Color
Gray
PKWIU
27.12.40.0
Accurate color
Gray
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.5 ... 4 mm²
Connectable conductor cross section solid-core
0.5 ... 4 mm²
Rated current In
32 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
31 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
0.5 ... 4 mm²
Connectable conductor cross section multi-wired
0.5 ... 4 mm²
Rated voltage
690 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
-25 ... 100 °C
Width/grid dimension
6.4 mm
Length
43.5 mm
Closing plate required
Yes
Internally connected stages
No
