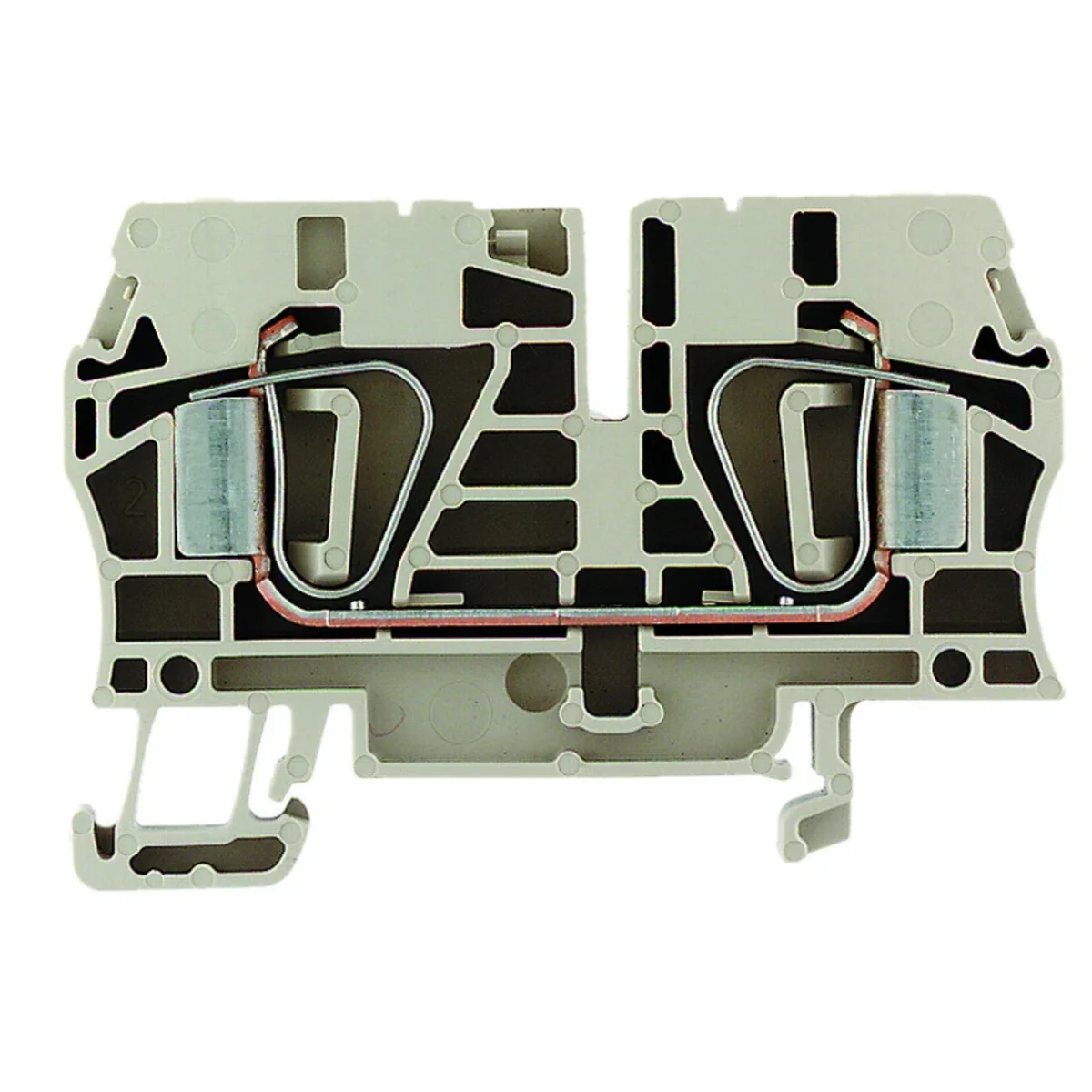

ZDU 6 Rail connector, catalog number 1608620000 1608620000

Name: ZDU 6 Rail connector, catalog number 1608620000
Brand: WEIDMULLER
SKU: TES186WEID
Price: 5.62 PLN
Availability: BackOrder

Índice local:

TES186WEID

Número de catálogo:

1608620000

Código EAN:

4008190207892

Haga clic en la foto para ampliar

Fabricante: WEIDMULLER

Precio:

5,62 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante

Datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

10 ... 0.22 mm²
Connectable conductor cross section solid-core

0.22 ... 10 mm²
Rated current In

41 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Suitable for conductor material

Copper
Material insulation body

Thermoplastic
Width

8.1 mm
Depth

45 mm
Closing plate required

Yes
Internally connected stages

No

Connectable conductor cross section fine-strand with cable end sleeve

6 ... 0.22 mm²
Connectable conductor cross section multi-wired

6 ... 0.22 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

120 ... -50 °C
Height

65 mm
Explosion-tested version 'Ex e'

Yes
Colour

Beige
