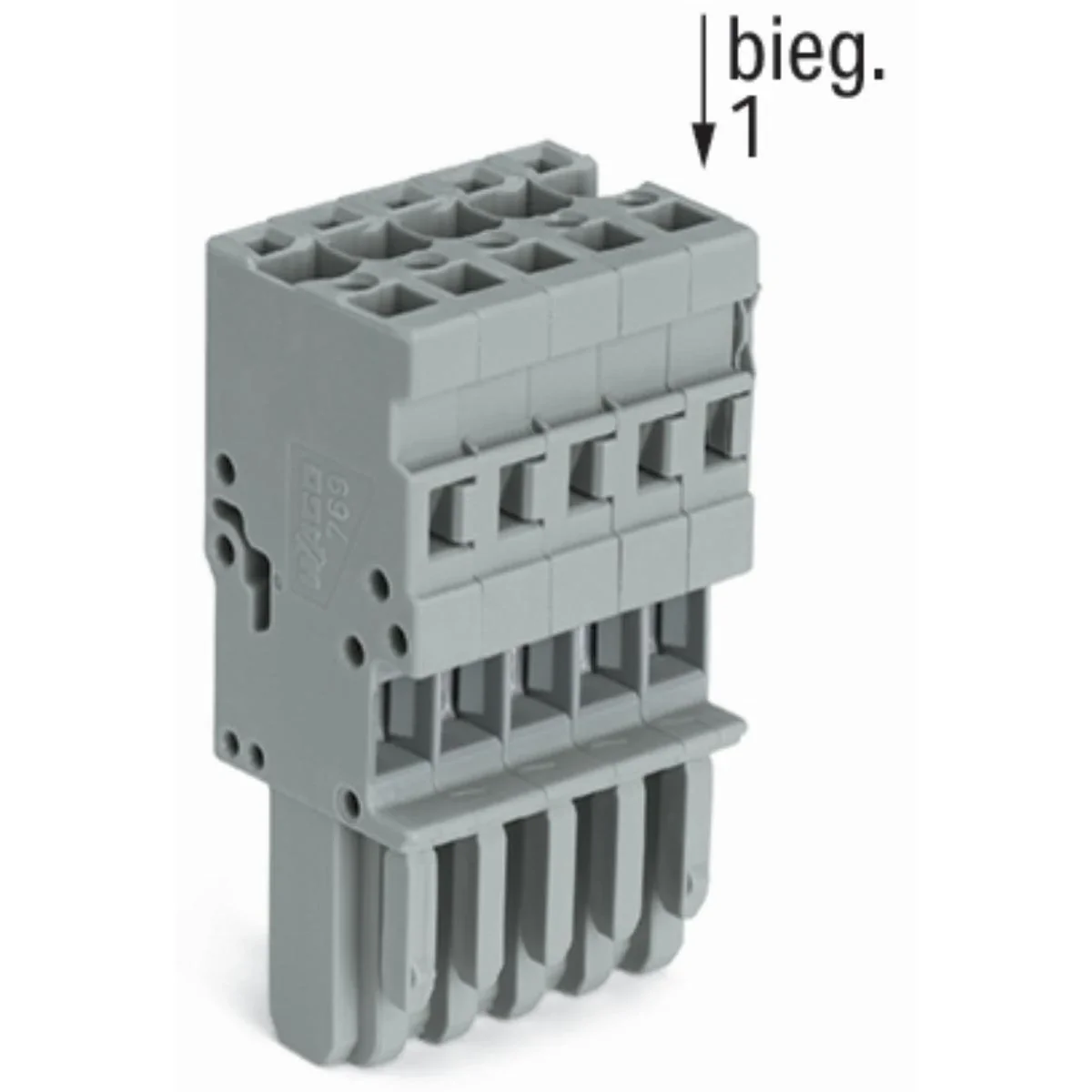

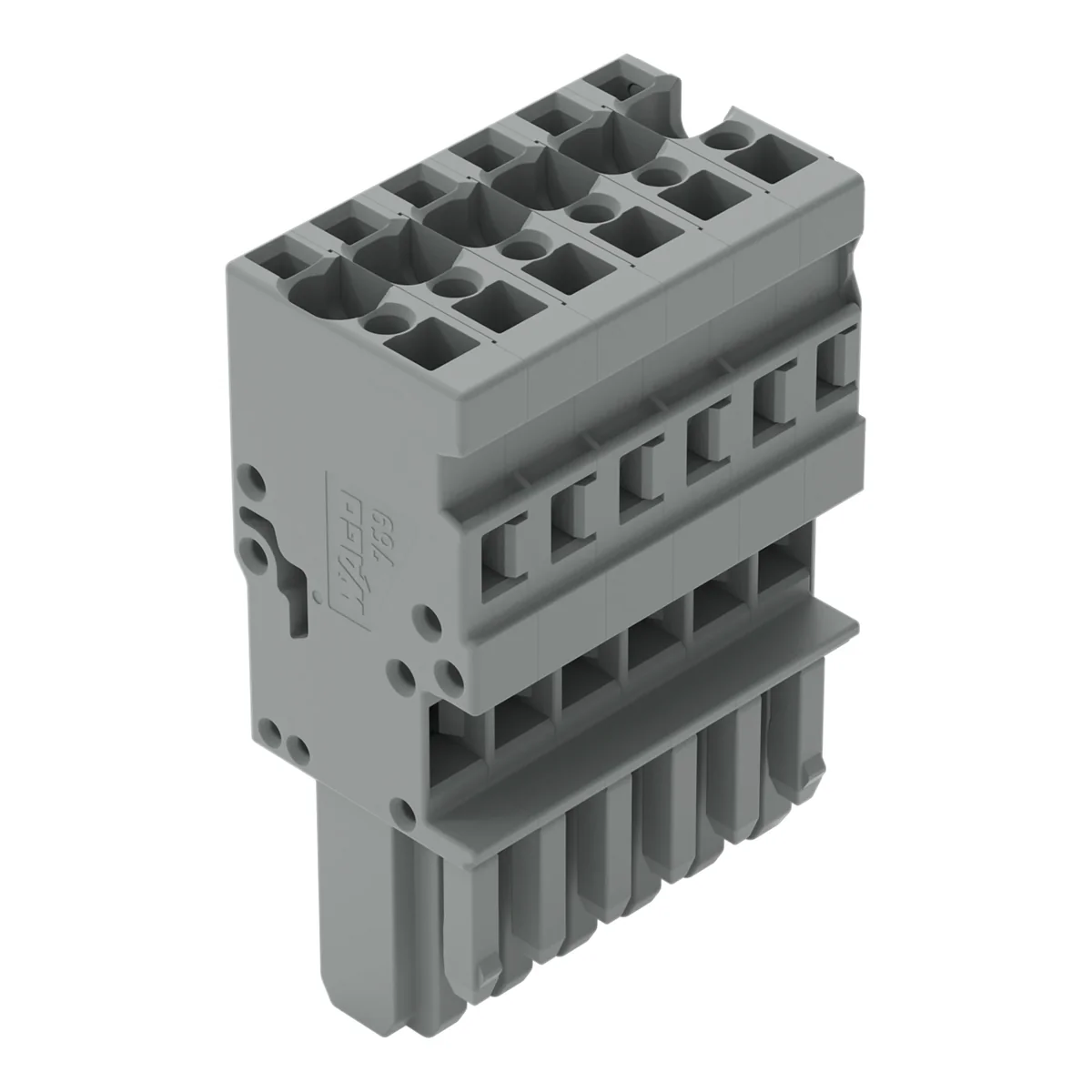

X-COM socket 1-wire 6-pin gray 769-106

local index:
TEB103WAGO
Catalog No:
769-106
EAN code:
4044918471510
Manufacturer: WAGO ELWAG
Depth [mm]: 18.3
Color: Gray
Number of poles: 6
Price:
136,20 €
gross / pkg.
(including VAT 23%)
5,45 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

X-COM socket 1-wire 6-pin gray

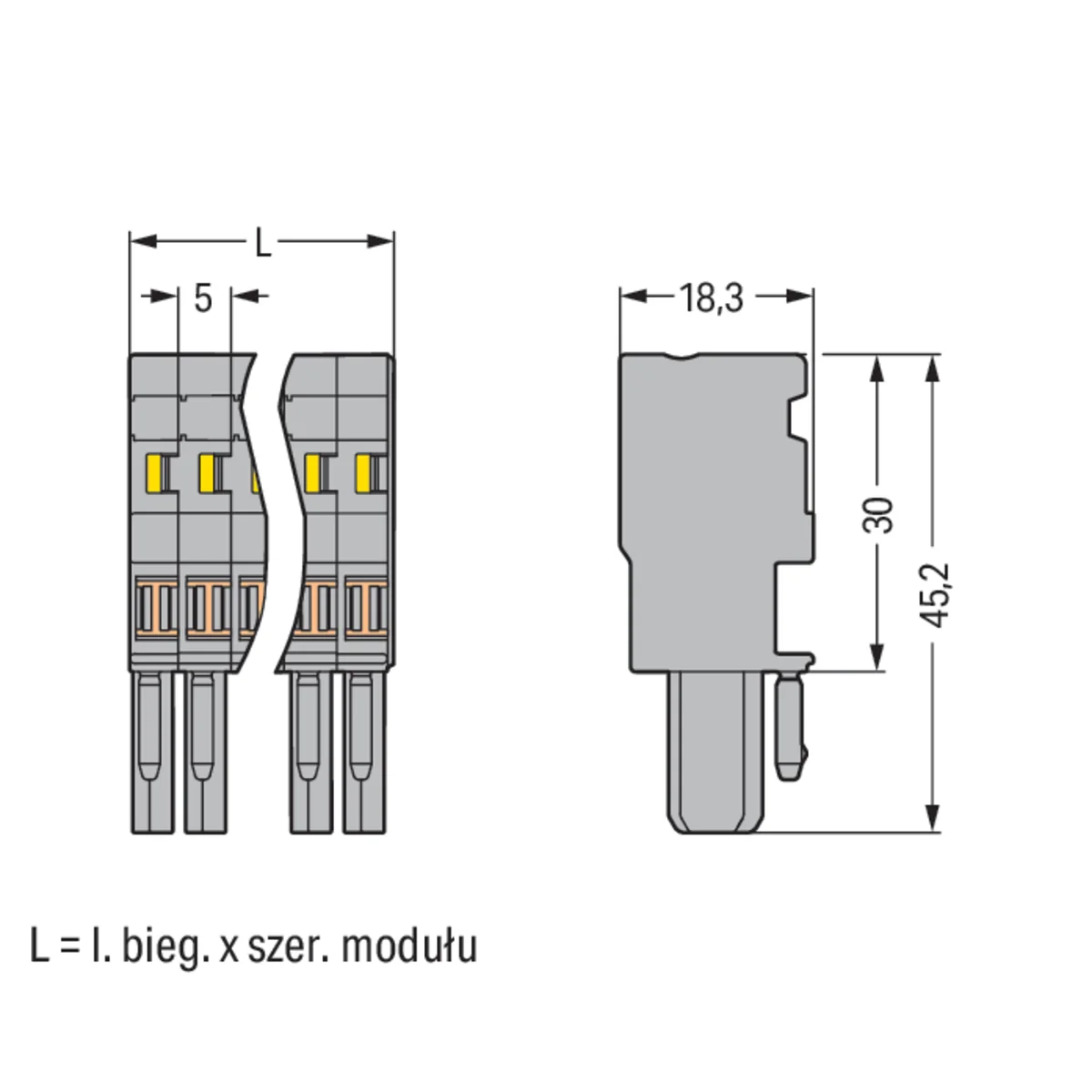

Technical data

  • Depth [mm]
    18.3
  • Number of poles
    6
  • Surge voltage [kV]
    6
  • Fire load [MJ]
    0.32
  • Rated current [A]
    32
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Module width [mm]
    5
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    45.2
  • Maximum stripping length [mm]
    9
  • Number of connectors
    6
  • Color
    Gray
  • Total number of potentials
    6
  • Rated voltage EN [V]
    500
  • The plane of description
    Description on the side
  • Gauge [AWG]
    28
  • Series
    769
  • Width [mm]
    thirty
  • Pieces in the package
    25
  • Weight [g]
    18,856
  • Accurate color
    Gray
  • Minimum stripping length [mm]
    8

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of poles
    6
  • Mounting method
    Other
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    30 mm
  • Length
    18.3 mm
  • Colour
    Grey
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per pole
    1
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    45.2 mm
  • Closing plate required
    No
  • Transparent
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,566
Volume (m3) 0,003
Width (m) 0,134
Length (m) 0,285
Depth (m) 0,072
