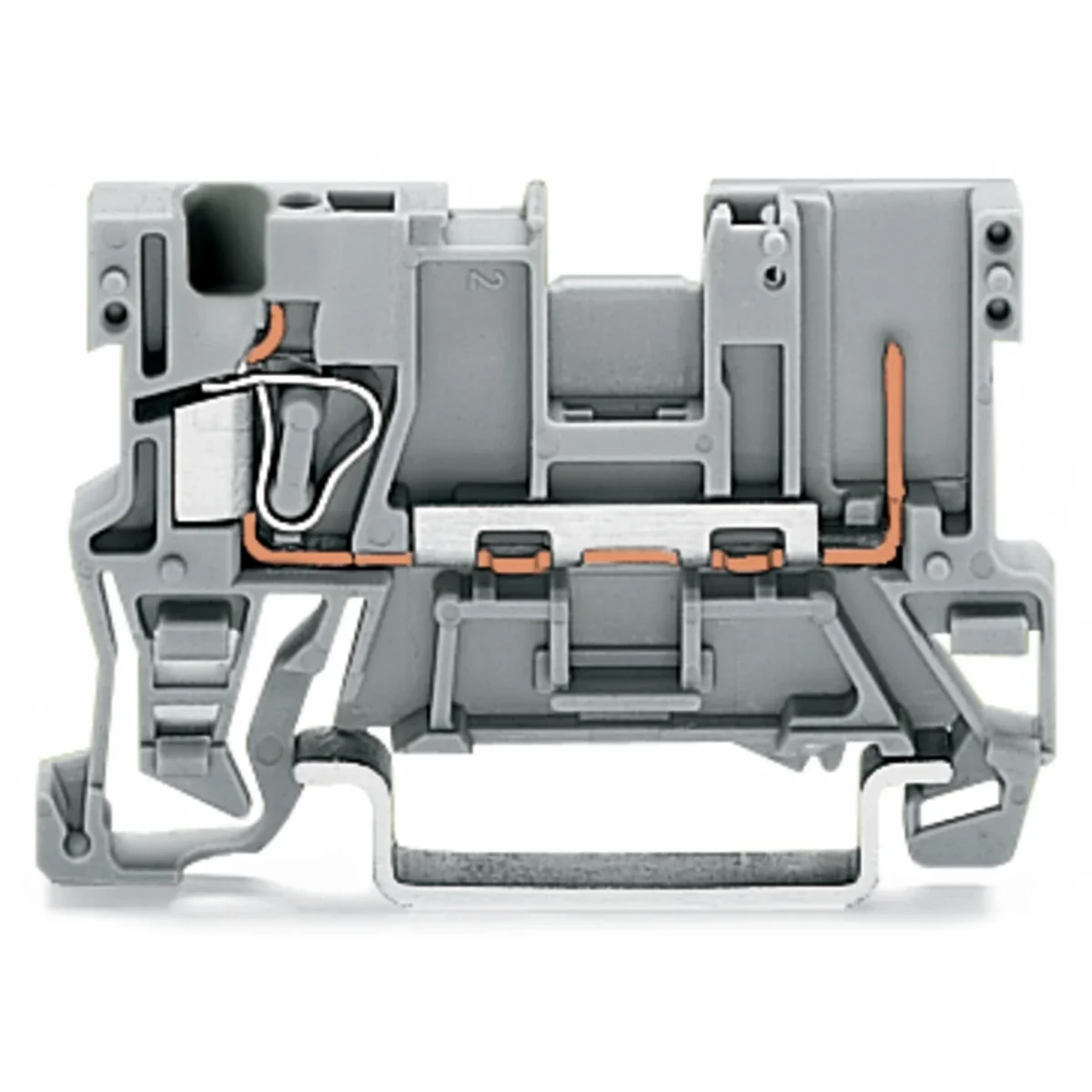

X-COM 1-wire/1-pin gray base connector 769-176

local index:
TEB292WAGO
Catalog No:
769-176
EAN code:
4045454871697
Manufacturer: WAGO ELWAG
Color: Gray
Rated current [A]: 32
Gauge [AWG]: 2014-12-28 00:00:00
Price:
110,38 €
gross / pkg.
(including VAT 23%)
1,10 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Base terminal block 1-conductor/1-pin according to EN 60715,

Technical data

  • Color
    Gray
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Dirt zone
    3
  • Weight [g]
    5.453
  • Accurate color
    Gray
  • Rated current [A]
    32
  • Series
    769
  • Pieces in the package
    100
  • Rated impulse voltage [kV]
    6

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    28.5 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Plug-in connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    52.5 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,583
Volume (m3) 0,002
Width (m) 0,110
Length (m) 0,275
Depth (m) 0,050
