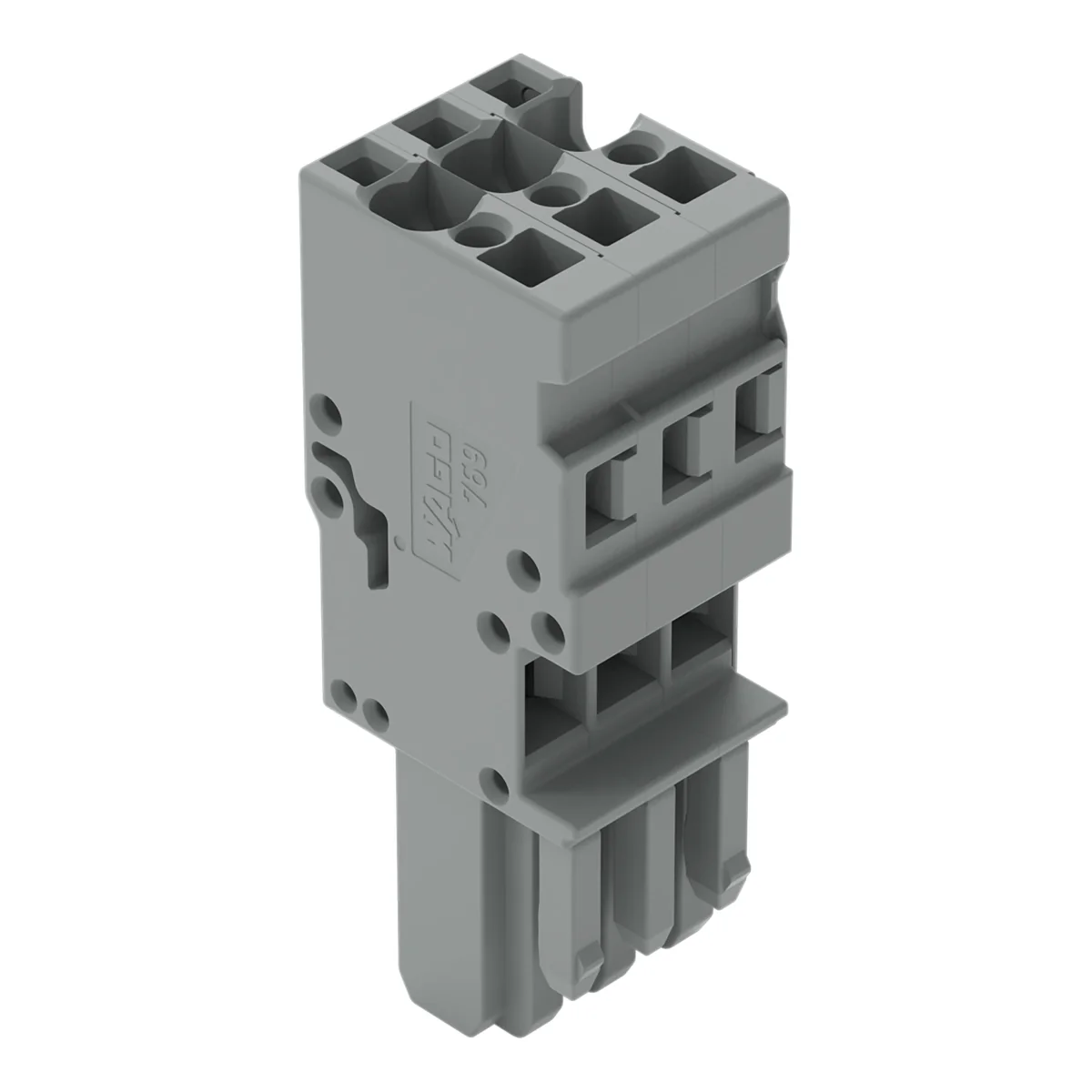

X-COM 1-wire 3-pole gray socket 769-103

Внутрішній артикул:
TEB104WAGO
№ каталоговий:
769-103
Код EAN:
4044918471343
Виробник: WAGO ELWAG
Stripping length [mm]: 0.33
Depth [mm]: 18.3
Color: Gray
Ціна:
166,91 €
gross / пак.
(з ПДВ 23%)
3,34 € gross/шт.
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість пак.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

X-COM 1-wire 3-pole gray socket

Технічні дані

  • Stripping length [mm]
    0.33
  • Color
    Gray
  • Total number of potentials
    3
  • Rated voltage EN [V]
    500
  • The plane of description
    Description on the side
  • Gauge [AWG]
    28
  • Series
    769
  • Width [mm]
    15
  • Pieces in the package
    50
  • Weight [g]
    9.7
  • Accurate color
    Gray
  • Minimum stripping length [mm]
    8
  • Depth [mm]
    18.3
  • Number of poles
    3
  • Surge voltage [kV]
    6
  • Fire load [MJ]
    0.161
  • Rated current [A]
    32
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Module width [mm]
    5
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    45.2
  • Maximum stripping length [mm]
    9
  • Number of connectors
    3

Інші технічні дані

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of poles
    3
  • Mounting method
    Other
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    15 mm
  • Length
    18.3 mm
  • Colour
    Grey
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per pole
    1
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    45.2 mm
  • Closing plate required
    No
  • Transparent
    No
