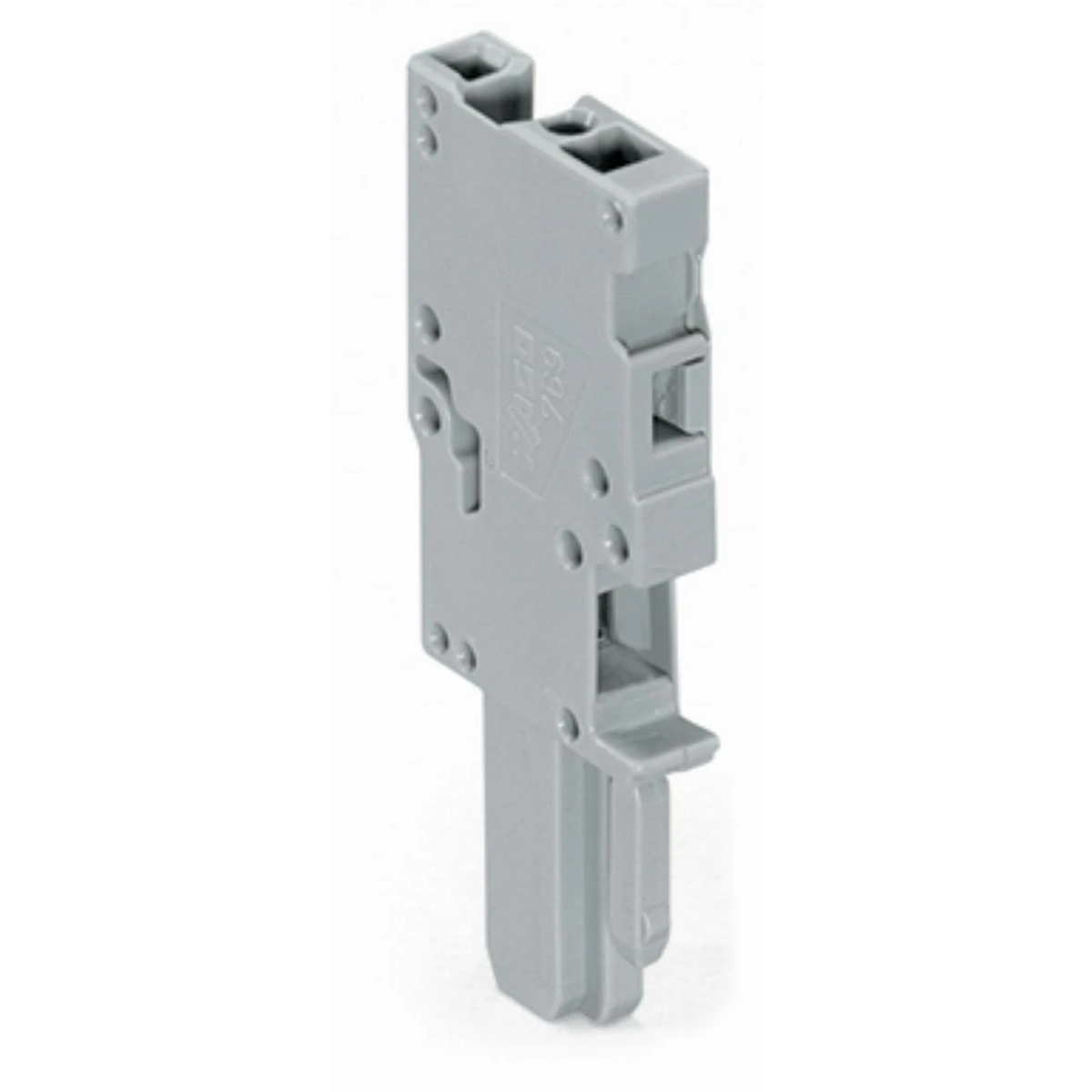

X-COM 1-wire 1-pole gray socket 769-101
local index:
TEO010WAGO
Catalog No:
769-101
EAN code:
4044918471268
Price:
282,56 €
gross / pkg.
(including VAT 23%)
1,41 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
X-COM 1-wire 1-pole gray socket

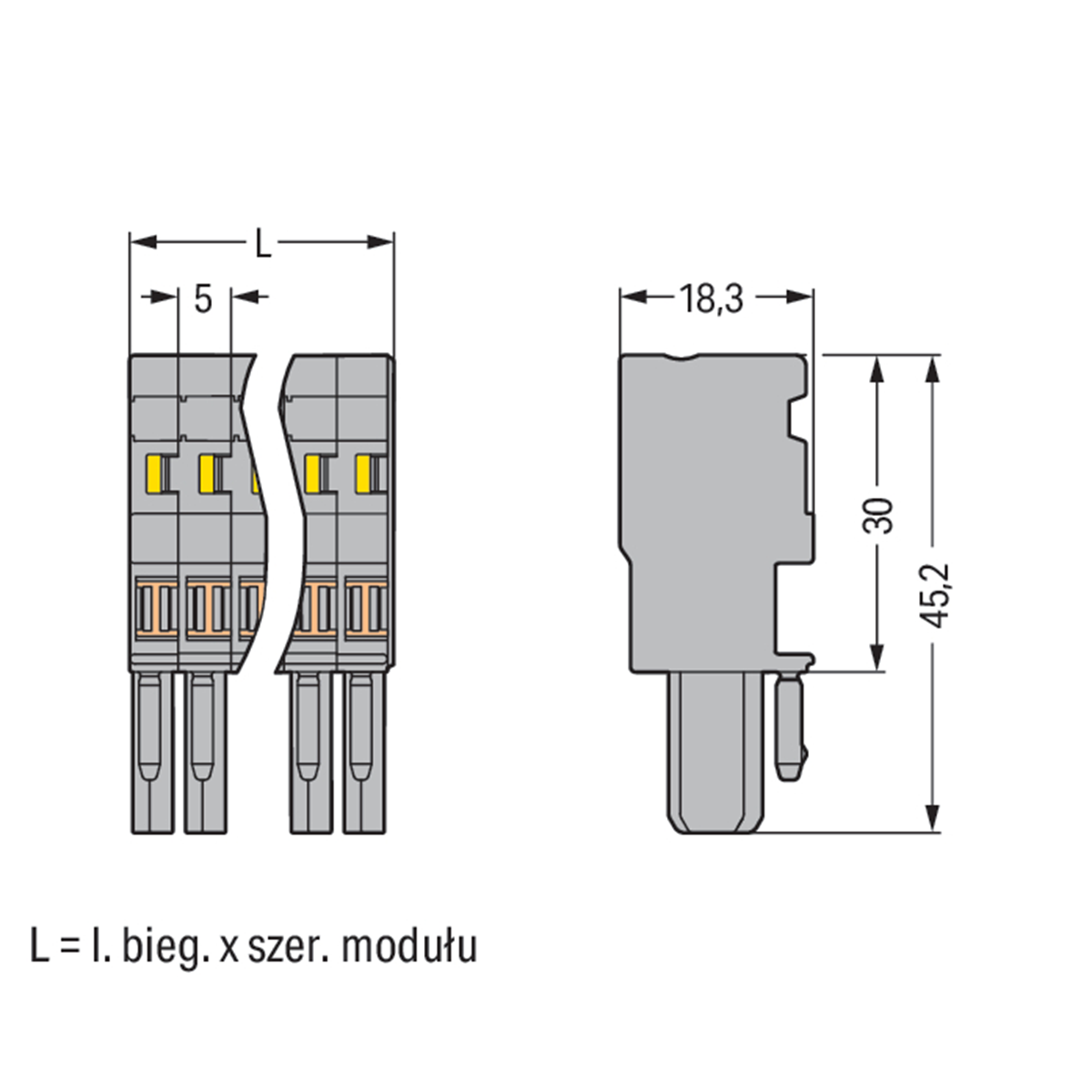

Technical data
-
Length [mm]18.3
-
Number of poles1
-
Connection positionIn advance
-
Cross-section of connected single-wire cable [mm]0.08 - 4
-
Cross-section of the connected stranded wire with a ferrule [mm]0.25 - 2.5
-
Type of electrical connectionSpring clip
-
Width [mm]5
-
Explosion-proof execution Ex-e - confirmedNO
-
ColorGray
-
Number of terminals per pole1
-
Rated current [A]32
-
Cross-section of the connected stranded wire without ferrule [mm]0.08 - 4
-
Cross-section of connected multicore cable [mm]0.08 - 4
-
Series769
-
Pieces in the package200
-
Height [mm]45.2
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 4 mm²
-
Rated voltage500 V
-
Type of electrical connection 2Spring clamp connection
-
Number of poles1
-
Mounting methodOther
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length18.3 mm
-
ColourGrey
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 4 mm²
-
Connectable conductor cross section solid-core0.08 ... 4 mm²
-
Rated current In32 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per pole1
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu45.2 mm
-
Closing plate requiredNo
-
TransparentNo
Manufacturer details
-
ManufacturerWAGO ELWAG SP. Z O.O.
-
Address50-506 UL.PIĘKNA 58A
-
E-mail
-
Tax identification number8961025689
Bulk packaging
| A kind of package | Karton | Karton |
| Quantity | 1 pkg. | 1 pkg. |
| Weight (kg) | 0,731 | 0,731 |
| Volume (m3) | 0,003 | 0,003 |
| Width (m) | 0,134 | 0,134 |
| Length (m) | 0,285 | 0,285 |
| Depth (m) | 0,072 | 0,072 |
