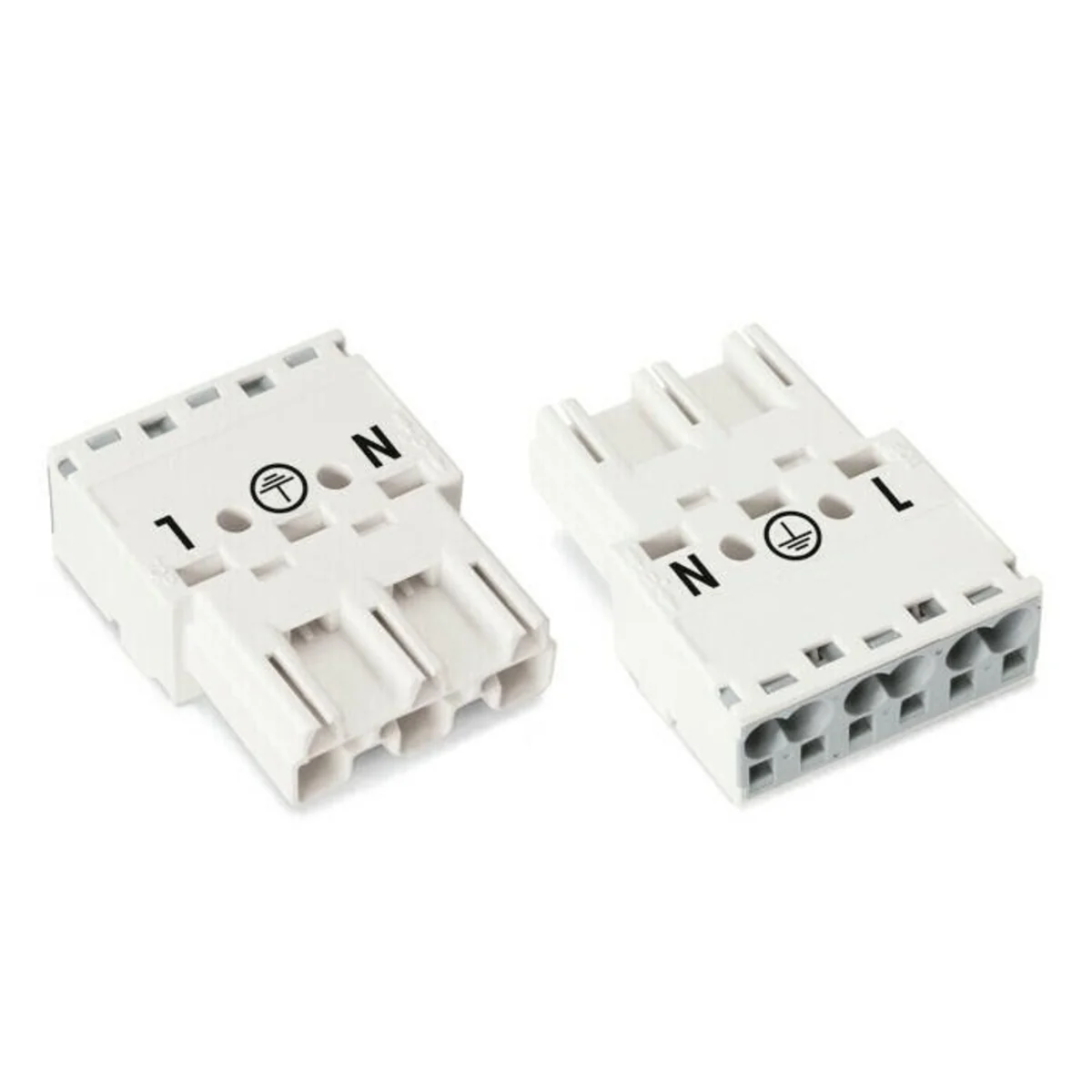

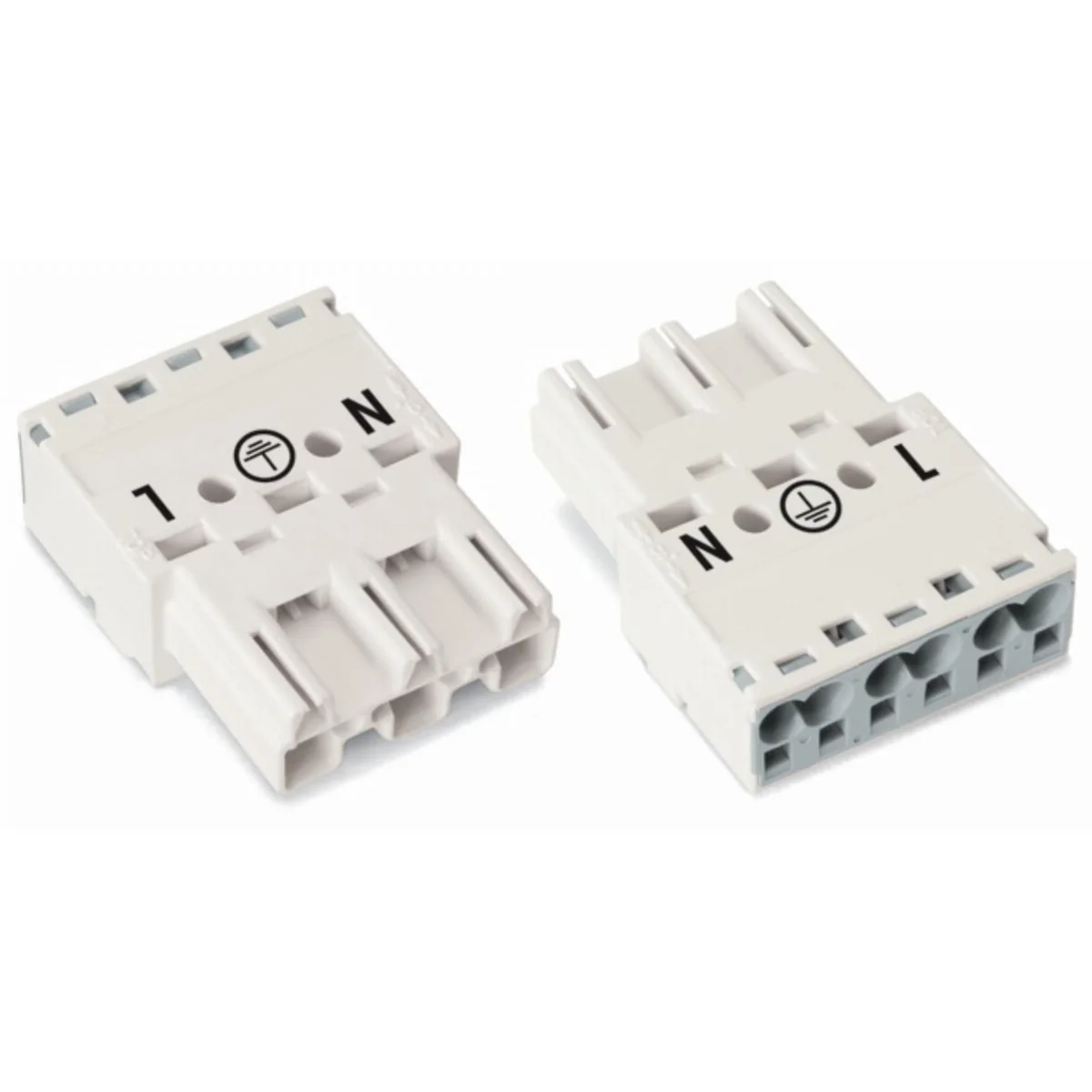

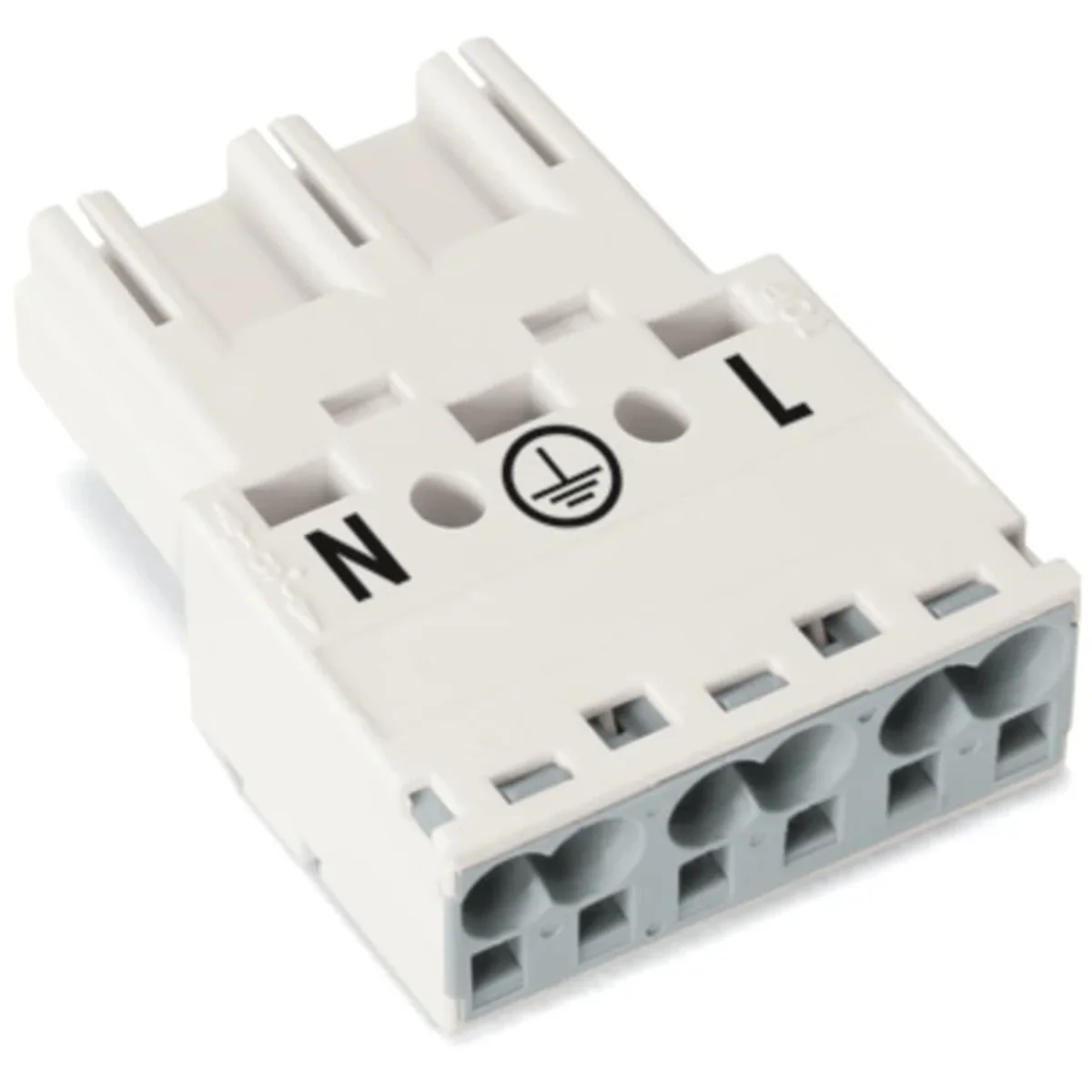

WINSTA 3-way white plug 770-233

local index:
TEB535WAGO
Catalog No:
770-233
EAN code:
4044918254182
Manufacturer: WAGO ELWAG
Series: 770
Price:
3,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 5 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

WINSTA 3-way white plug

Technical data

  • Series
    770

Other technical data

  • Rated voltage
    250 V
  • Number of poles
    3
  • Connection type
    Spring clamp connection
  • Connection cross section (fine-strand)
    0.5 ... 4 mm²
  • Number of connections per pole
    2
  • Mechanical coding
    Yes
  • Type of locking
    Separate
  • Max. continuous temperature resistance contact part
    85 °C
  • Housing material
    Polyamide (PA)
  • Contact material
    Other
  • Pollution degree
    3
  • Rated surge voltage
    4 kV
  • Height
    12.9 mm
  • Rated current
    25 A
  • Degree of protection (IP)
    IP20
  • Model
    Plug
  • Connection cross section (solid-core)
    0.5 ... 4 mm²
  • Pole codification
    L, N, PE
  • Colour coding/contact insert
    White
  • With strain relief
    No
  • Max. continuous temperature resistance strain relief
    105 °C
  • Halogen free
    No
  • Surface treatment contacts
    Other
  • Continuity resistance
    3 mΩ
  • Length
    37.5 mm
  • Width
    30 mm

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 1,053
Volume (m3) 0,002
Width (m) 0,160
Length (m) 0,285
Depth (m) 0,040
