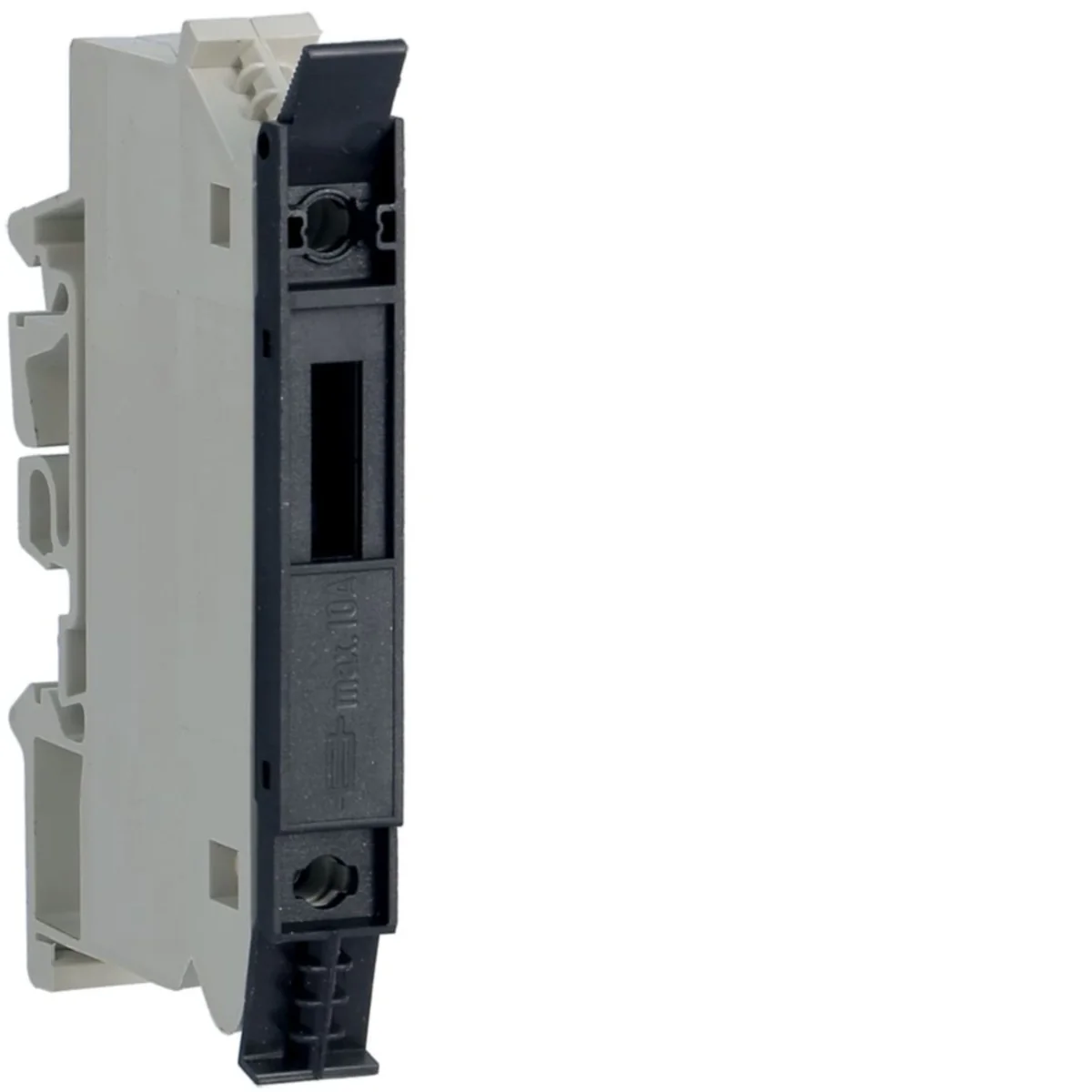

Wide terminal with space for gG(6x32) 4mm2 fuse KXB04F6

local index:
TES129HAGE
Catalog No:
KXB04F6
EAN code:
3250613942137
Manufacturer: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 10
Color: Gray
Price:
11,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse terminal with a place for a fuse, from the series of screw terminals:

  • gG(6x32)
  • Open with the seal in place
  • The value of the permissible current flowing through the terminal depends on the protection value

Series characteristics:

< ul>
  • Creep current resistance: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two wires with the same cross-section to one terminal screw (in the case of PE only 1 wire)
  • Easy wire entry into open terminal due to conical entry
  • Easy to insert screwdriver into lowered terminal screws
  • Idle/idle after loosening terminal screws – especially important for mechanical screwdrivers
  • All parts permanently fixed in the terminal carrier
  • Equal level up to 35 mm2 in order to maintain the required insulation distances between individual groups of terminals, possibly at the beginning or end of a group of terminals place a partition/end plate.
  • Technical data

    • Energy lost in cables [W]
      1
    • Color
      Gray
    • Rated current [A]
      10
    • Wire cross-section (cord) [mm²]
      0.5 - 4
    • PKWIU
      27.33.13.0
    • Depth [mm]
      10
    • Material
      Polyamide
    • power loss [W]
      1
    • Conductor cross-section (wire) [mm²]
      0.5 - 6

    Other technical data

    • Rated current In
      10 A
    • Material insulation body
      Thermoplastic
    • Mounting method
      Other
    • Colour
      Grey

    Bulk packaging

    A kind of package Karton Paleta
    Quantity 1 pcs. 50 pcs. 10000 pcs.
    Weight (kg) 0,021 1,100 243,000
    Width (m) 0,055 0,165 0,800
    Length (m) 0,010 0,055 1,050
    Depth (m) 0,078 0,220 1,200
