WDU 70N/35 BL Through rail connector, catalog number 9512420000 9512420000

Name: WDU 70N/35 BL Through rail connector, catalog number 9512420000
Brand: WEIDMULLER
SKU: TES269WEID
Price: 44.42 PLN
Availability: BackOrder

Índice local:

TES269WEID

Número de catálogo:

9512420000

Código EAN:

4008190403973

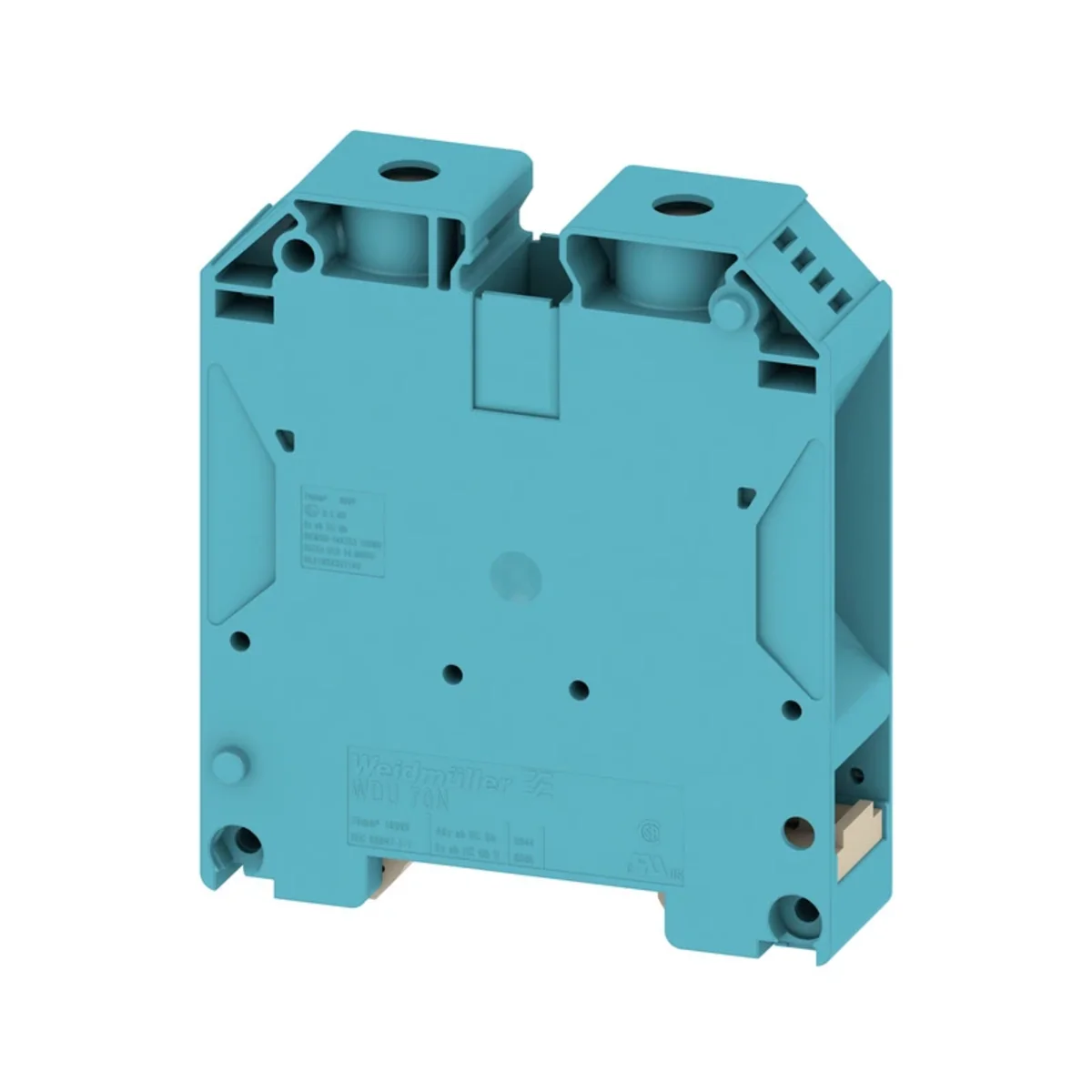

WDU 70N/35 BL Through rail connector, catalog number 9512420000

Haga clic en la foto para ampliar

Fabricante: WEIDMULLER

Precio:

44,42 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante

Datos técnicos

Otros datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

70 ... 16 mm²
Connectable conductor cross section solid-core

16 ... 16 mm²
Rated current In

192 A
Type of electrical connection 1

Screw connection
Number of levels

1
Suitable for conductor material

Copper
Material insulation body

Thermoplastic
Width

20.5 mm
Depth

85 mm
Closing plate required

No
Internally connected stages

No

Connectable conductor cross section fine-strand with cable end sleeve

70 ... 16 mm²
Connectable conductor cross section multi-wired

95 ... 16 mm²
Rated voltage

1000 V
Type of electrical connection 2

Screw connection
Number of clamp positions per level

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

130 ... -60 °C
Height

75 mm
Explosion-tested version 'Ex e'

Yes
Colour

Blue
