WDU 2.5 RT Feed-through terminal block 1020040000
local index:
TES017WEID
Catalog No:
1020040000
EAN code:
4008190143015
Manufacturer:
WEIDMULLER
Color: Red
Price:
0,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

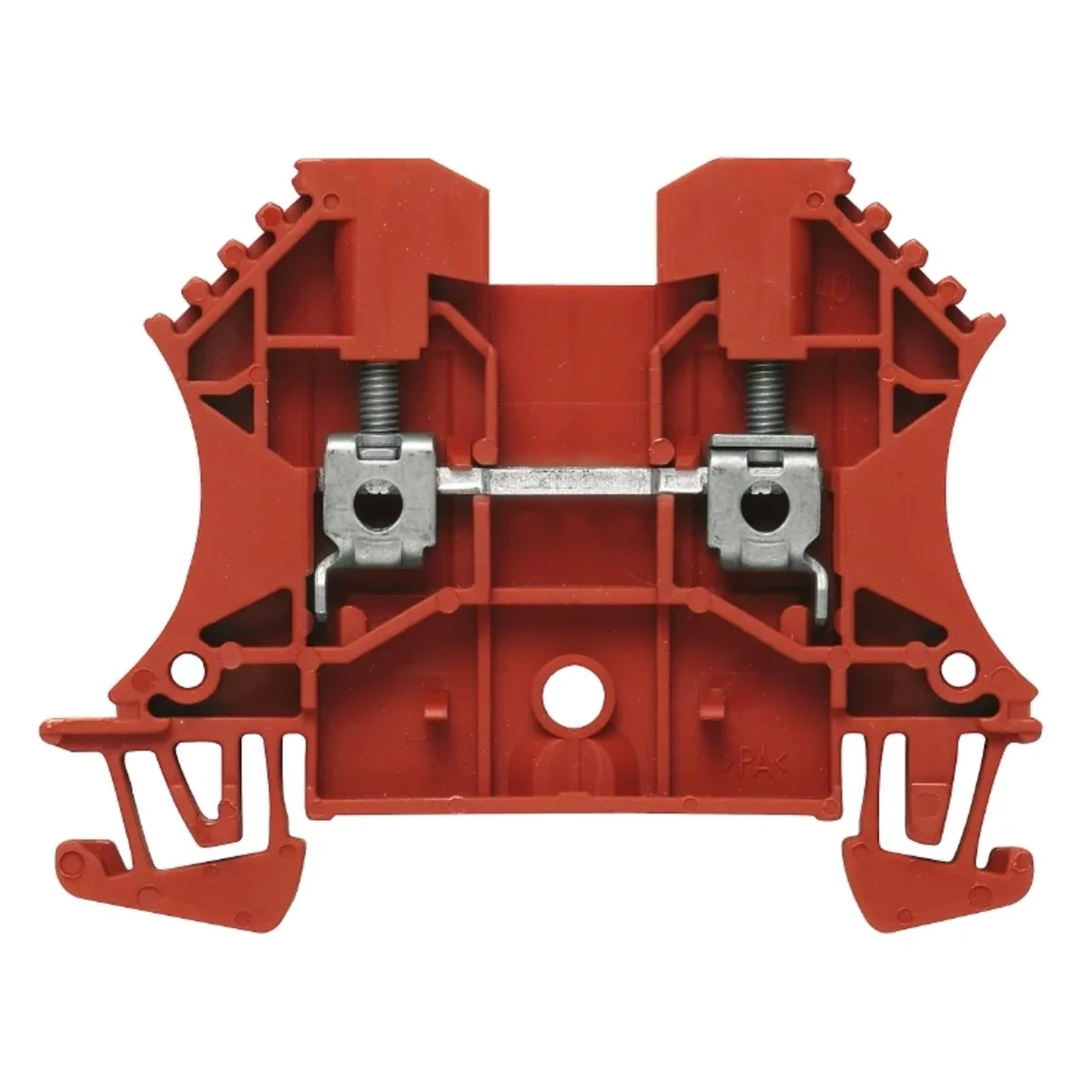

WDU 2.5 RT Feed-through terminal block
Technical data
-
ColorRed
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
-
Connectable conductor cross section solid-core0.5 ... 4 mm²
-
Rated current In24 A
-
Type of electrical connection 1Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-60 ... 130 °C
-
Width/grid dimension5.1 mm
-
Length60 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
-
Connectable conductor cross section multi-wired1.5 ... 4 mm²
-
Rated voltage800 V
-
Connection positionSideways
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu46.5 mm
-
Explosion-tested version 'Ex e'Yes
-
ColourRed
