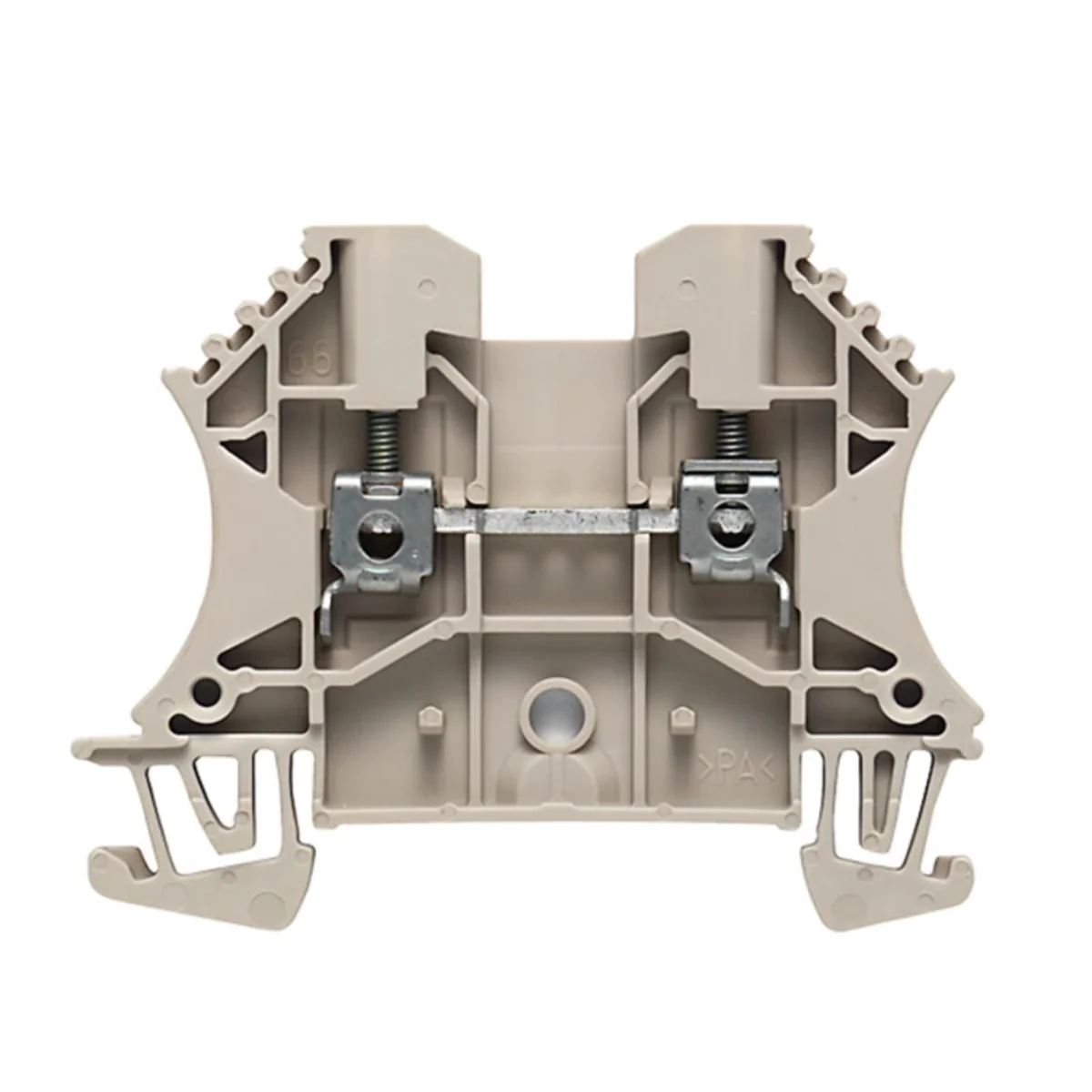

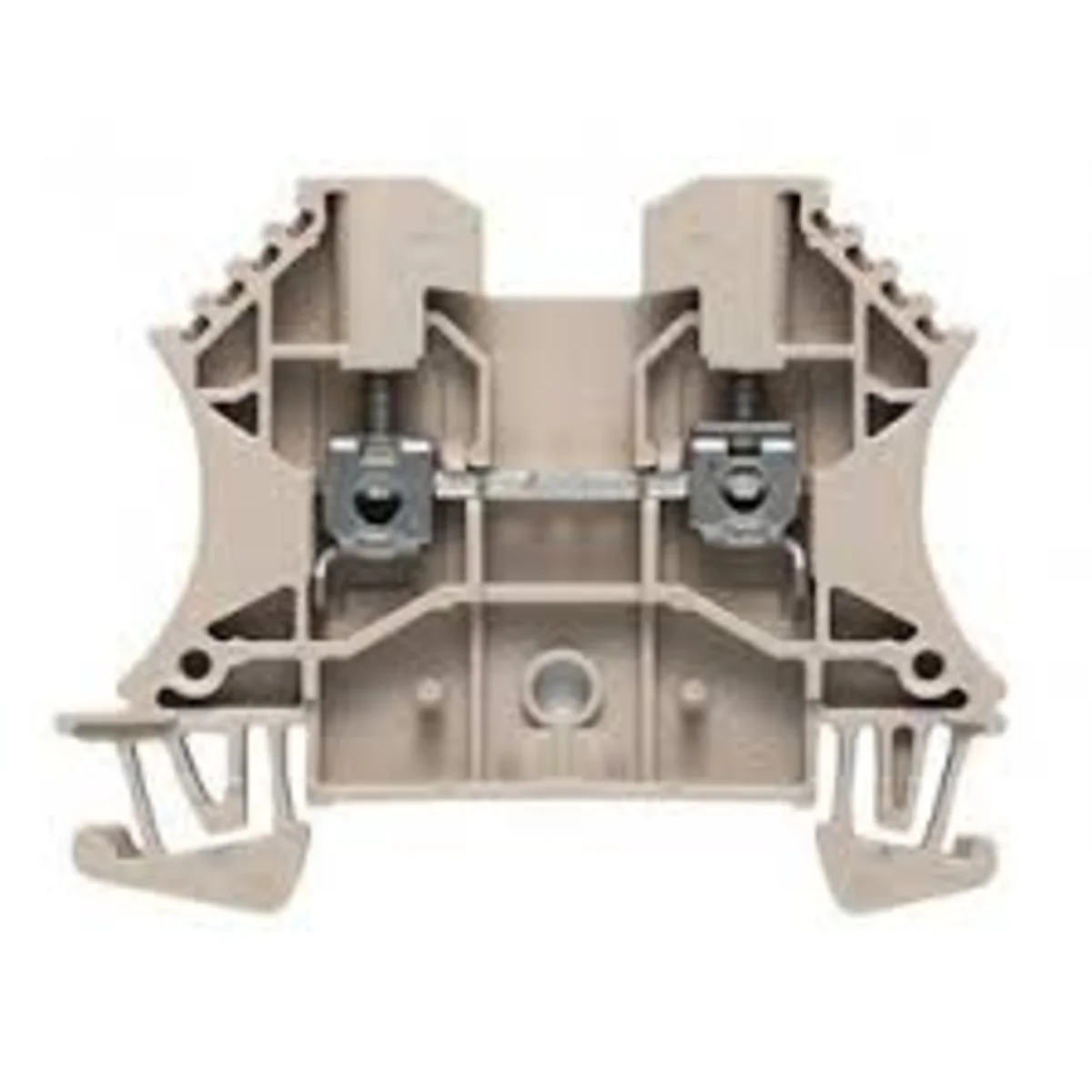

WDU 2.5 connector 1020000000

local index:
TES006WEID
Catalog No:
1020000000
EAN code:
4008190099633
Manufacturer: WEIDMULLER
Installation: On the TH-35 rail
Cable section [mm2]: 2.5
Price:
0,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 54 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

WDU 2.5 connector

Technical data

  • Installation
    On the TH-35 rail
  • Cable section [mm2]
    2.5

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 4 mm²
  • Rated current In
    24 A
  • Type of electrical connection 1
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -60 ... 130 °C
  • Width/grid dimension
    5.1 mm
  • Length
    60 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    1.5 ... 4 mm²
  • Rated voltage
    800 V
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    46.5 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Beige
