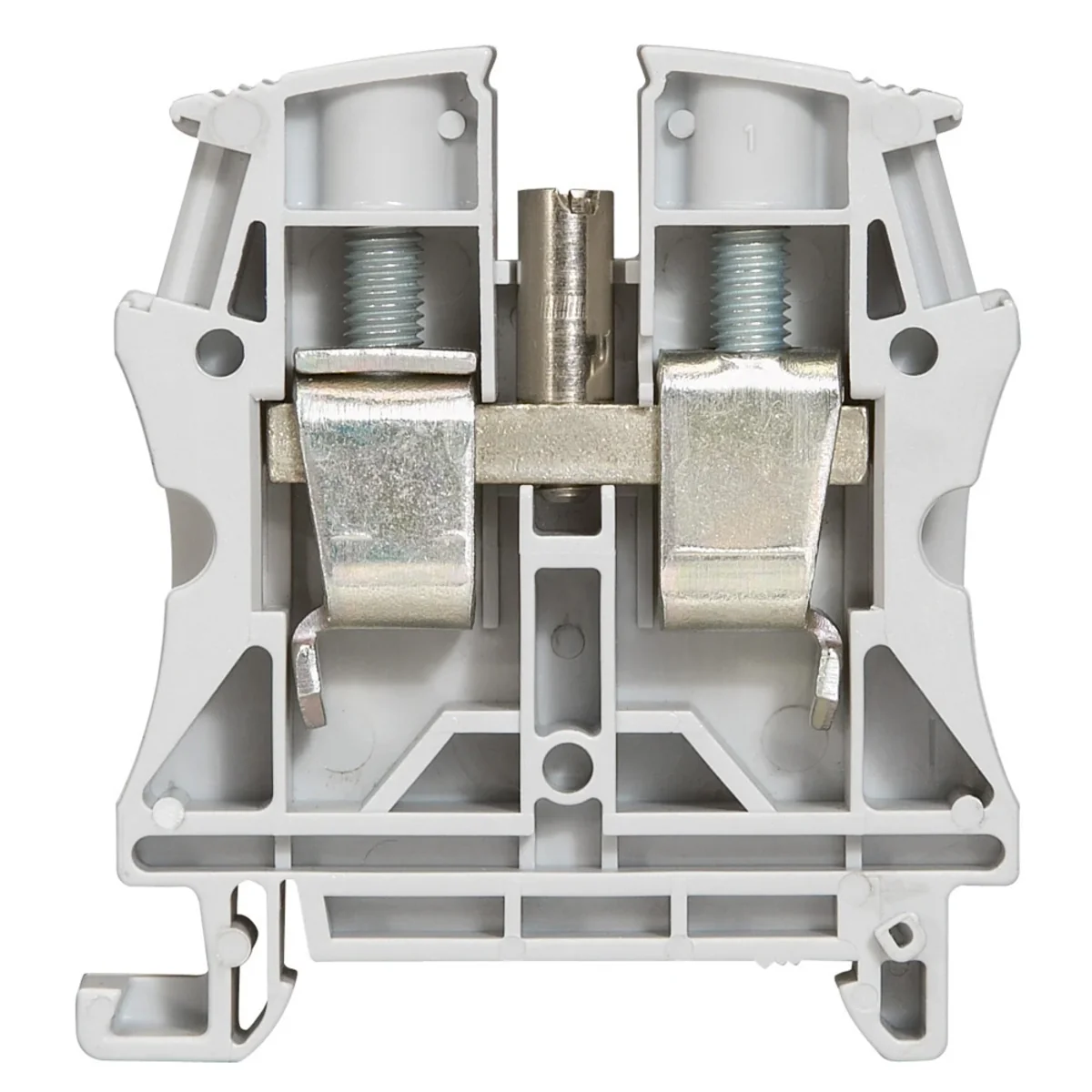

Viking connector 1 TOR 35mm2 grey 037165

Viking connector 1 TOR 35mm2 grey. Viking 3 screw connectors
Electrical installation connectors are used to make electrical and
mechanical connections of two copper wires (wires and cables)
To be mounted on a symmetrical TH35 support with a depth
7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for equipotential bonding, for terminal blocks up to 8 mm wide

Standard terminal blocks:
- in gray for standard circuits< br>- in blue for neutral circuits
- in orange for separating circuits
- in red for special circuits (emergency circuits, fire protection circuits, etc.)


Product parameters
Standard terminal blocks
Single-circuit - 1 input / 1 output
Insulating body: polyamide. Temperature range: -30°C to 100°C
Color: Grey
Nominal cross-section: 35.0 mm2
Cable diameter: 2.5 to 50.0 mm2
Flexible conductor cross-section: from 4.0 to 35.0 mm2
width: 15 mm
