Viking connector 1 TOR 2.5mm2 gray 60pcs. 037160

Name: Viking connector 1 TOR 2.5mm2 gray 60pcs.
Brand: LEGRAND
SKU: TES049LEGR
Price: 526.46 PLN
Availability: BackOrder

local index:

TES049LEGR

Catalog number:

037160

EAN code:

3245060371609

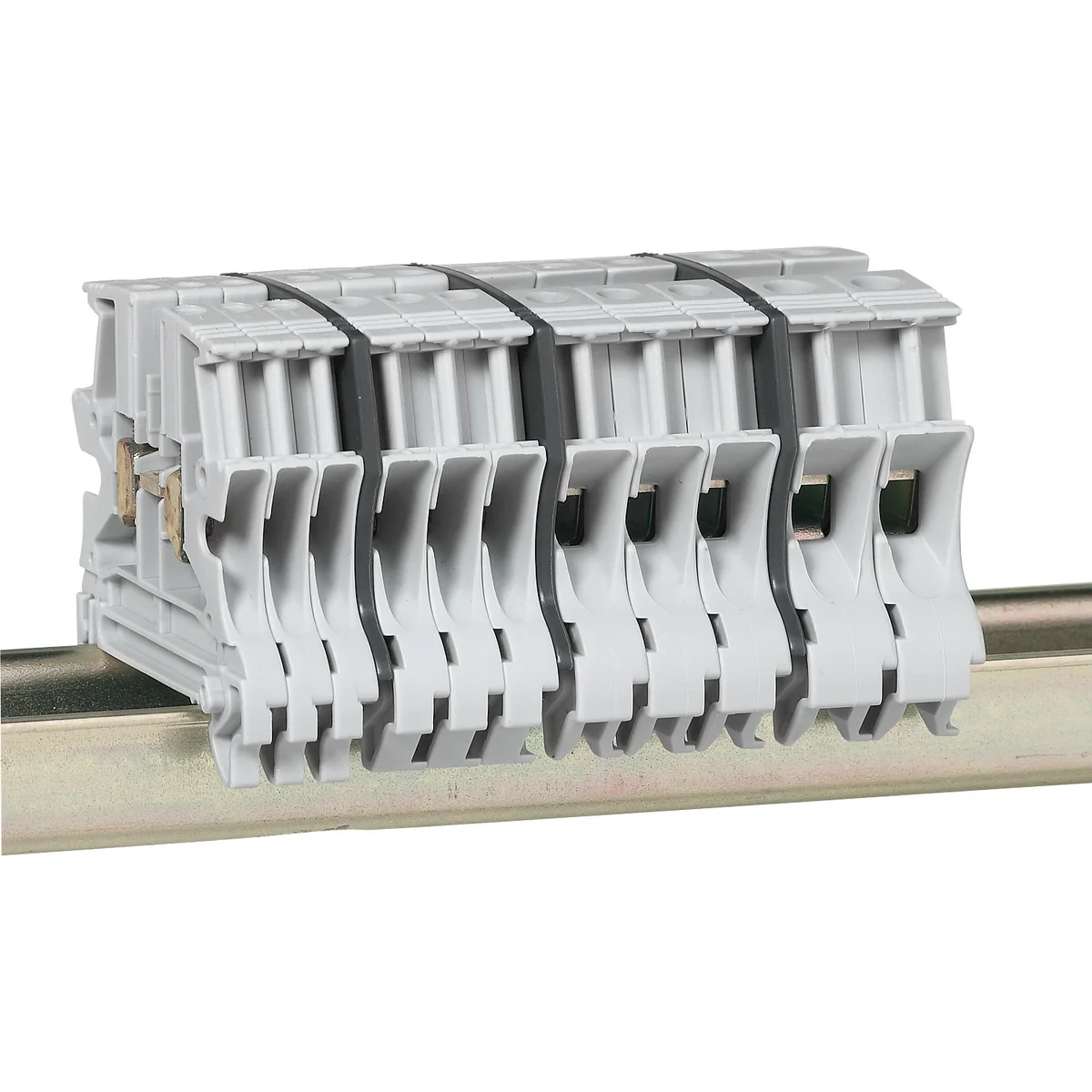

Viking connector 1 TOR 2.5mm2 gray 60pcs.

Click on the photo to enlarge

Manufacturer: LEGRAND

Pieces in the package: 60

See full description

Price:

526,46 zł

gross / pkg.

(including VAT 23%)

8,77 zł gross/pcs.

up to 4 weeks

On request

Quantity pkg.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

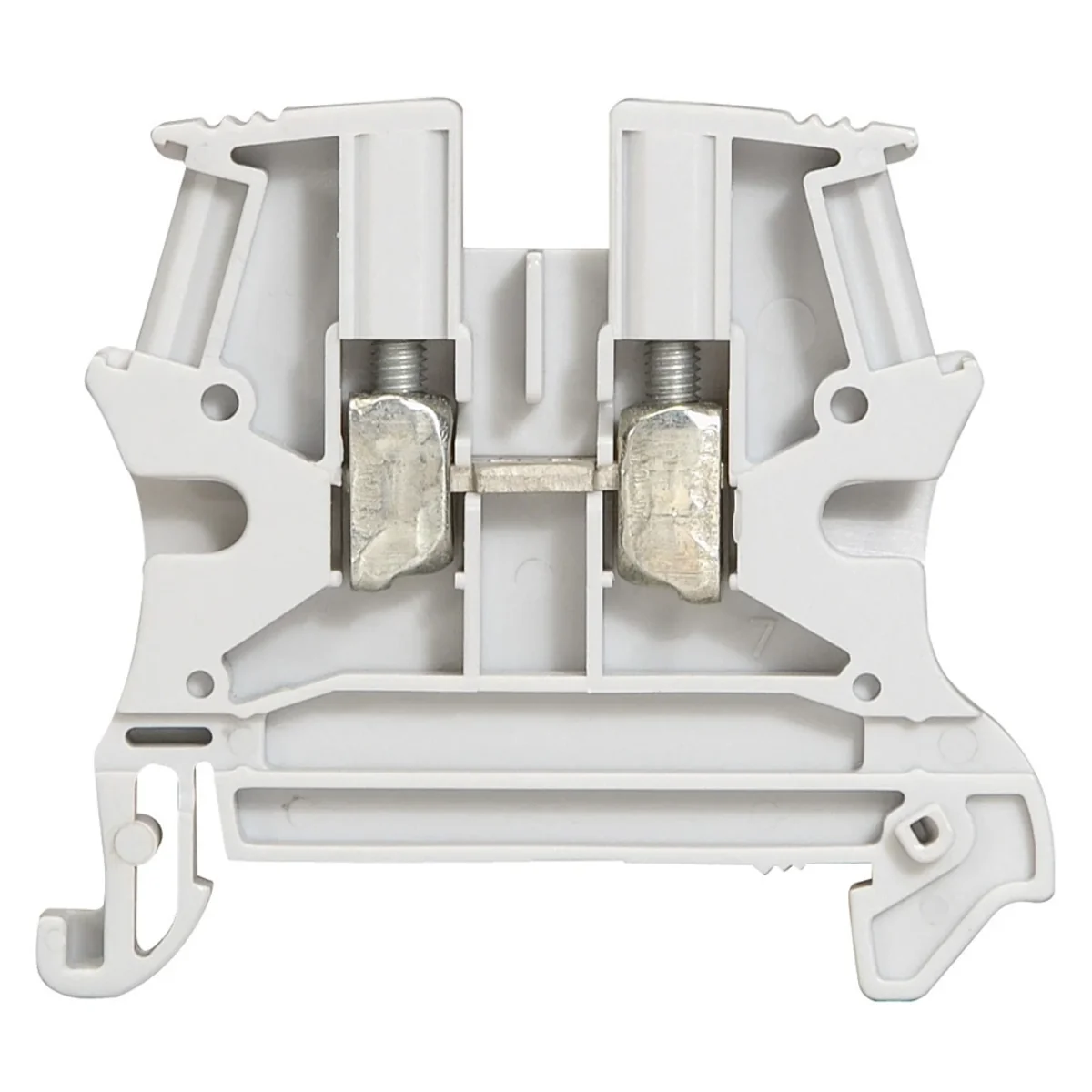

Viking 3 screw connectors
Electrical installation connectors are used to make electrical connections and
mechanical two copper conductors (wires and strands)

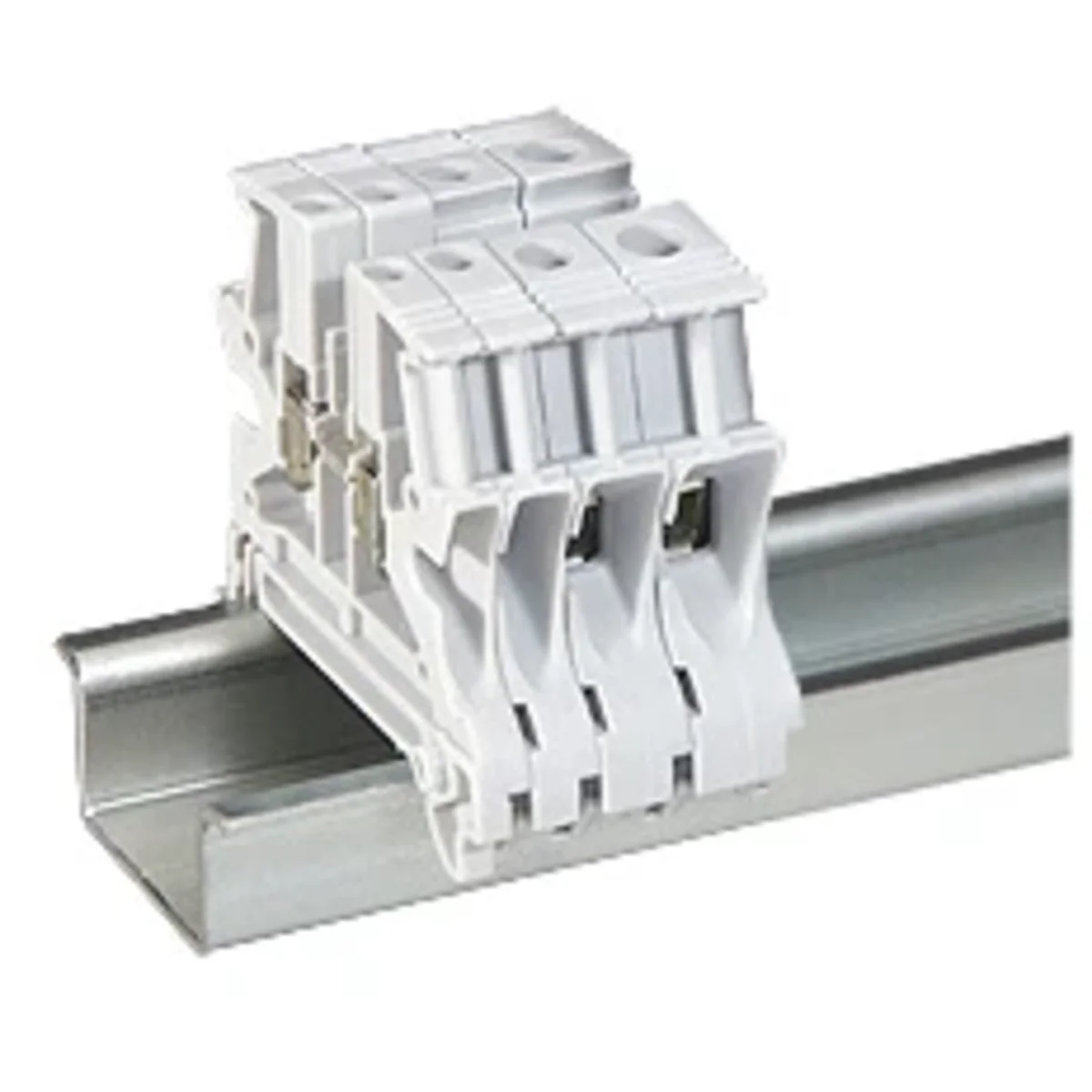

To be mounted on a TH35 symmetrical support
deep 7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for making connections
equipotential bonding, for terminal blocks up to 8 mm wide

Special fittings

Product Parameters

Standard connectors
Single track - 1 input / 1 output
Insulating body: polyamide. Temperature range: -30°C to 100°C
Color: Gray
Nominal cross-section: 2.5 mm2
Cross section of a rigid conductor (wire): from 0.25 to 4.0 mm2
Cross-section of the flexible wire (strings): from 0.25 to 2.5 mm2
width: 5mm

Technical data

Pieces in the package

60

PKWIU

27.12.40.0

Other technical data

Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.25 ... 4 mm²
Rated current In

24 A
Type of electrical connection 1

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-5 ... 40 °C
Height

46.5 mm
Explosion-tested version 'Ex e'

Yes
Colour

Grey
Klasa palności materiału izolacyjnego zgodnie z UL94

V2

Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 2.5 mm²
Rated voltage

800 V
Type of electrical connection 2

Screw connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

5 mm
Depth

52.5 mm
Closing plate required

Yes
Internally connected stages

No

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pkg.	20 pkg.	400 pkg.
Weight (kg)	0,413	8,640	172,800
Volume (m3)	0,001	0,032	0,846
Width (m)	0,121	0,300	1,200
Length (m)	0,060	0,270	0,705
Depth (m)	0,173	0,400	1,000
