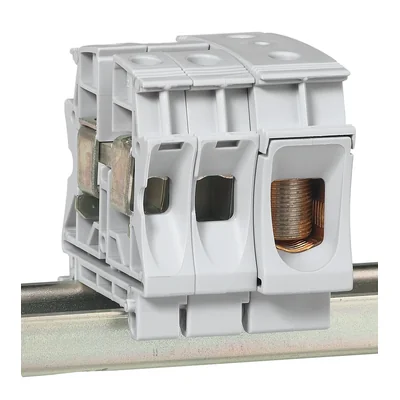

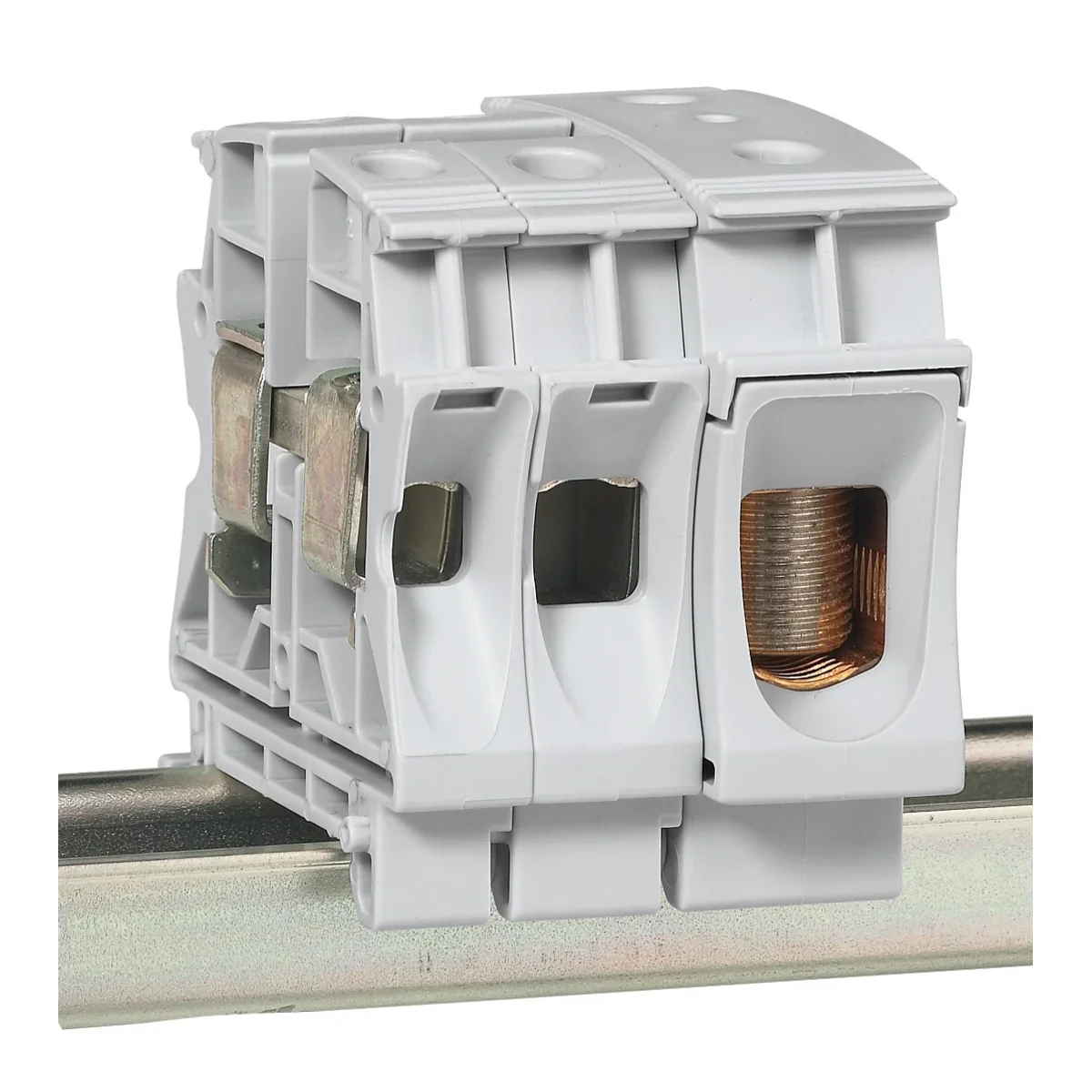

Viking connector 1 TOR 16mm2 grey 037164
Místní index:
TES066LEGR
Katalogové číslo.:
037164
EAN kód:
3245060371647
Výrobce:
LEGRAND
Color: Gray
20
98
zł
gross / kusů.
(včetně DPH 23%)
Dostupnost
Dostępne do 2 týdnů
Na zakázku
Dostępność w oddziale
Vyberte si svého velkoobchodníka
Vyberte
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu

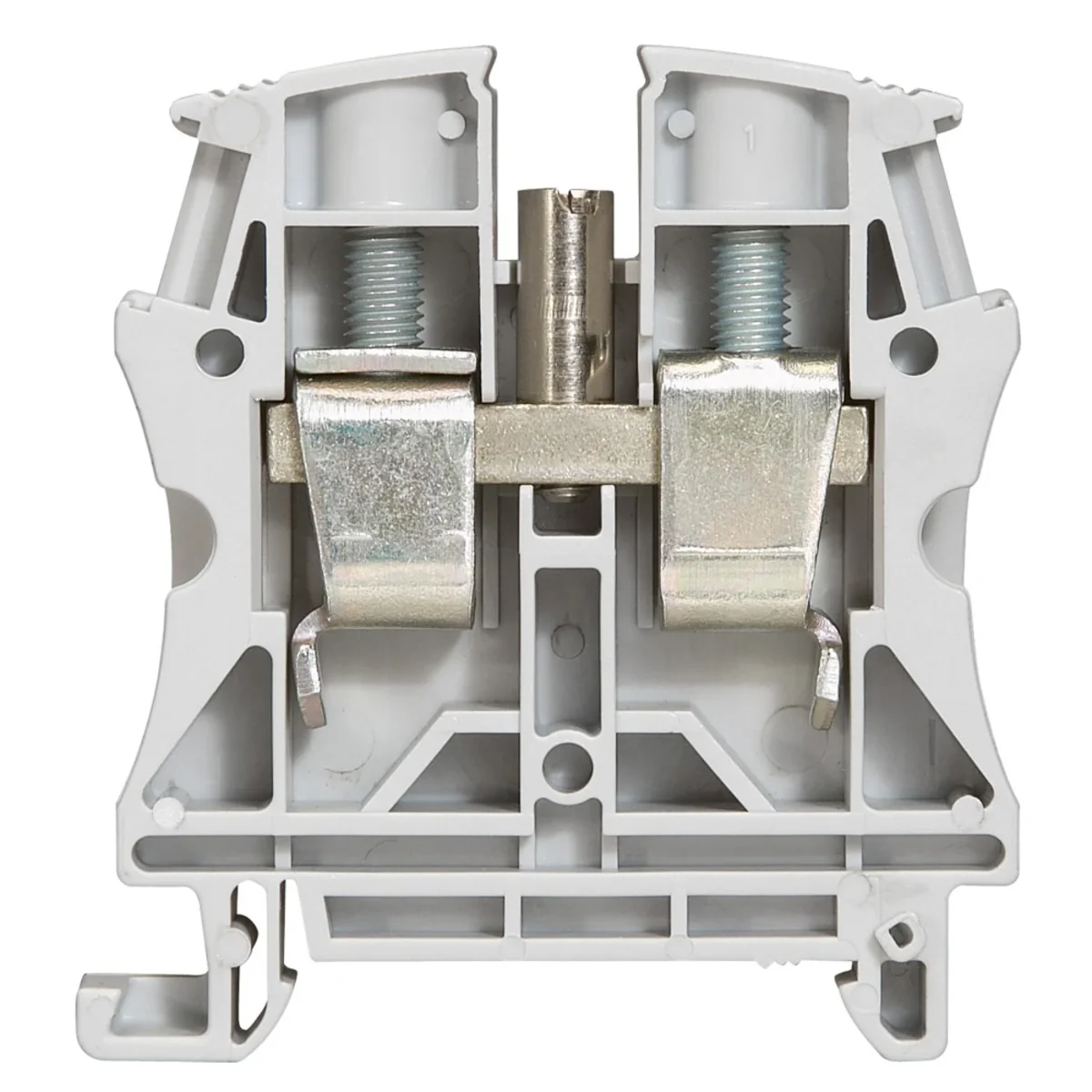

Viking 3 screw connectors
Electrical connectors are used to make electrical and
mechanical connections of two copper wires (wires and cables)
To be mounted on a symmetrical TH35 support with a depth
7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for equipotential bonding, for terminal blocks up to 8 mm wide
Standard terminal blocks:
- in gray for standard circuits< br>- in blue for neutral circuits
- in orange for separating circuits
- in red for special circuits (emergency circuits, fire protection circuits, etc.)
Product parameters
Standard terminal blocks
Single-circuit - 1 input / 1 output
Insulating body: polyamide. Temperature range: -30°C to 100°C
Color: Grey
Nominal cross-section: 16.0 mm2
Cable diameter: 1.5 to 25.0 mm2
Flexible conductor cross-section: from 4.0 to 16.0 mm2
width: 12 mm
Electrical connectors are used to make electrical and
mechanical connections of two copper wires (wires and cables)
To be mounted on a symmetrical TH35 support with a depth
7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for equipotential bonding, for terminal blocks up to 8 mm wide
Standard terminal blocks:
- in gray for standard circuits< br>- in blue for neutral circuits
- in orange for separating circuits
- in red for special circuits (emergency circuits, fire protection circuits, etc.)
Product parameters
Standard terminal blocks
Single-circuit - 1 input / 1 output
Insulating body: polyamide. Temperature range: -30°C to 100°C
Color: Grey
Nominal cross-section: 16.0 mm2
Cable diameter: 1.5 to 25.0 mm2
Flexible conductor cross-section: from 4.0 to 16.0 mm2
width: 12 mm
Technické údaje
-
ColorGray
-
PKWIU27.12.40.0
Další technické údaje
-
Connectable conductor cross section fine-strand without cable end sleeve1.5 ... 25 mm²
-
Connectable conductor cross section solid-core1.5 ... 25 mm²
-
Rated current In76 A
-
Type of electrical connection 1Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-5 ... 40 °C
-
Height63 mm
-
Explosion-tested version 'Ex e'Yes
-
ColourGrey
-
Klasa palności materiału izolacyjnego zgodnie z UL94V2
-
Connectable conductor cross section fine-strand with cable end sleeve4 ... 16 mm²
-
Connectable conductor cross section multi-wired4 ... 16 mm²
-
Rated voltage800 V
-
Type of electrical connection 2Screw connection
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Width12 mm
-
Depth57 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Podrobnosti o výrobci
-
VýrobceLegrand Polska Sp. z o.o.
-
Adresa57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Pudełko | Karton | Paleta |
| Množství | 20 kusů. | 180 kusů. | 5400 kusů. |
| Hmotnost (kg) | 0,816 | 8,000 | 240,000 |
| Objem (m3) | 0,002 | 0,019 | 0,652 |
| Šířka (m) | 0,129 | 0,300 | 1,200 |
| Délka (m) | 0,072 | 0,160 | 0,543 |
| Hloubka (m) | 0,164 | 0,400 | 1,000 |
