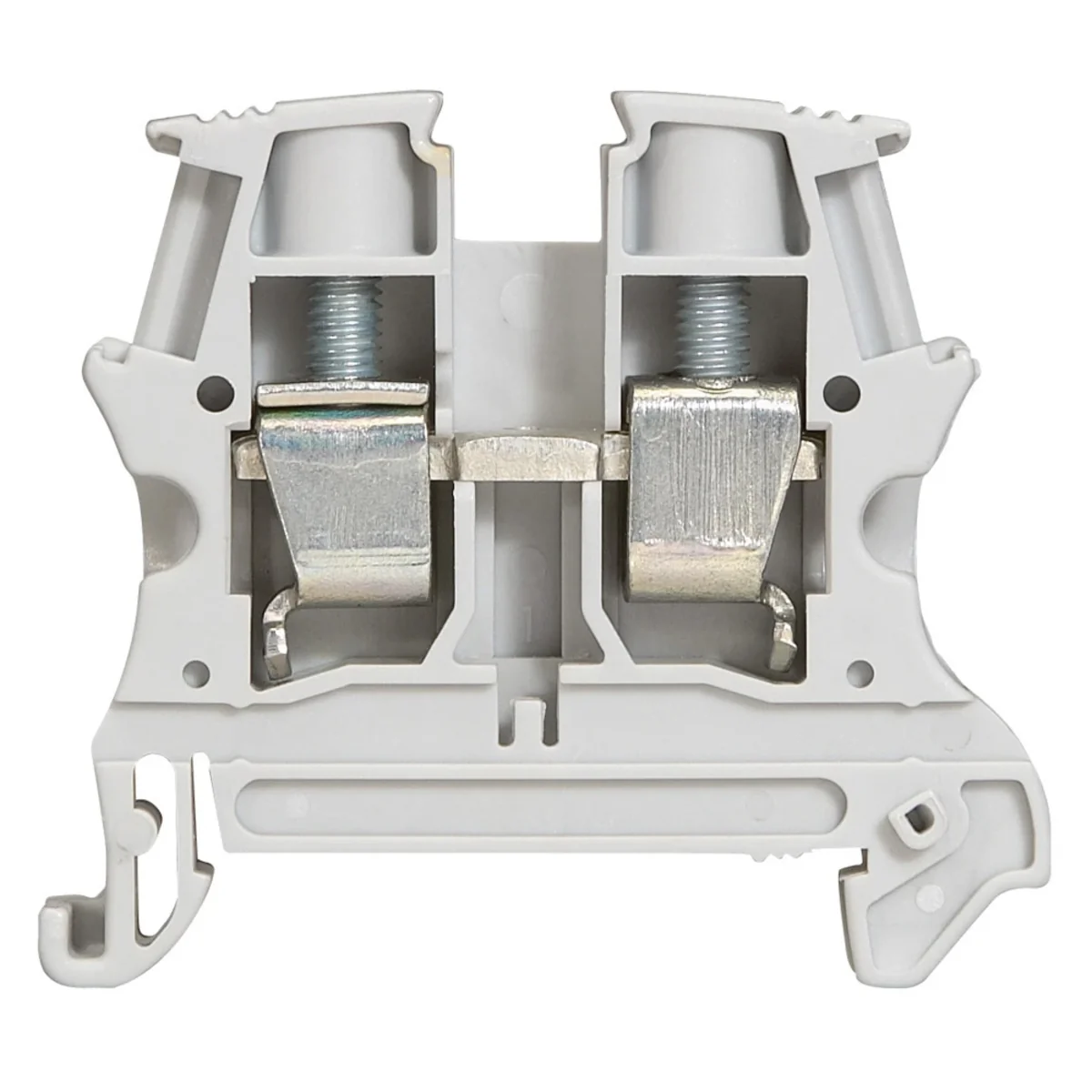

Viking connector 1 TOR 10mm2 gray 30pcs. 037163

Viking 3 screw connectors
Electrical installation connectors are used to make electrical connections and
mechanical two copper conductors (wires and strands)
To be mounted on a TH35 symmetrical support
deep 7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for making connections
equipotential bonding, for terminal blocks up to 8 mm wide

Standard fittings :
- in gray for standard circuits
- in blue for neutral circuits
- in orange for separating circuits
- in red for special circuits (emergency circuits, fire protection circuits, etc.)


Product Parameters

Standard connectors
Single track - 1 input / 1 output
Insulating body: polyamide. Temperature range: -30°C to 100°C
Color: Gray
Nominal cross-section: 10.0 mm2
Cross-sectional area of a rigid conductor (wire): from 1.5 to 16.0 mm2
Cross-section of the flexible conductor (cords): from 2.5 to 10.0 mm2
width: 10mm
