Universal connector 3x4mm 50pcs. 222-413

local index:
TEB792WAGO
Catalog No:
222-413
EAN code:
4017332955676
Manufacturer: WAGO ELWAG
Color: Gray
Rated current [A]: 32
Gauge [AWG]: 28 - 14
Price:
24,11 €
gross / pkg.
(including VAT 23%)
0,48 € gross/pcs.
Delivery in 3h
Accessible 6 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

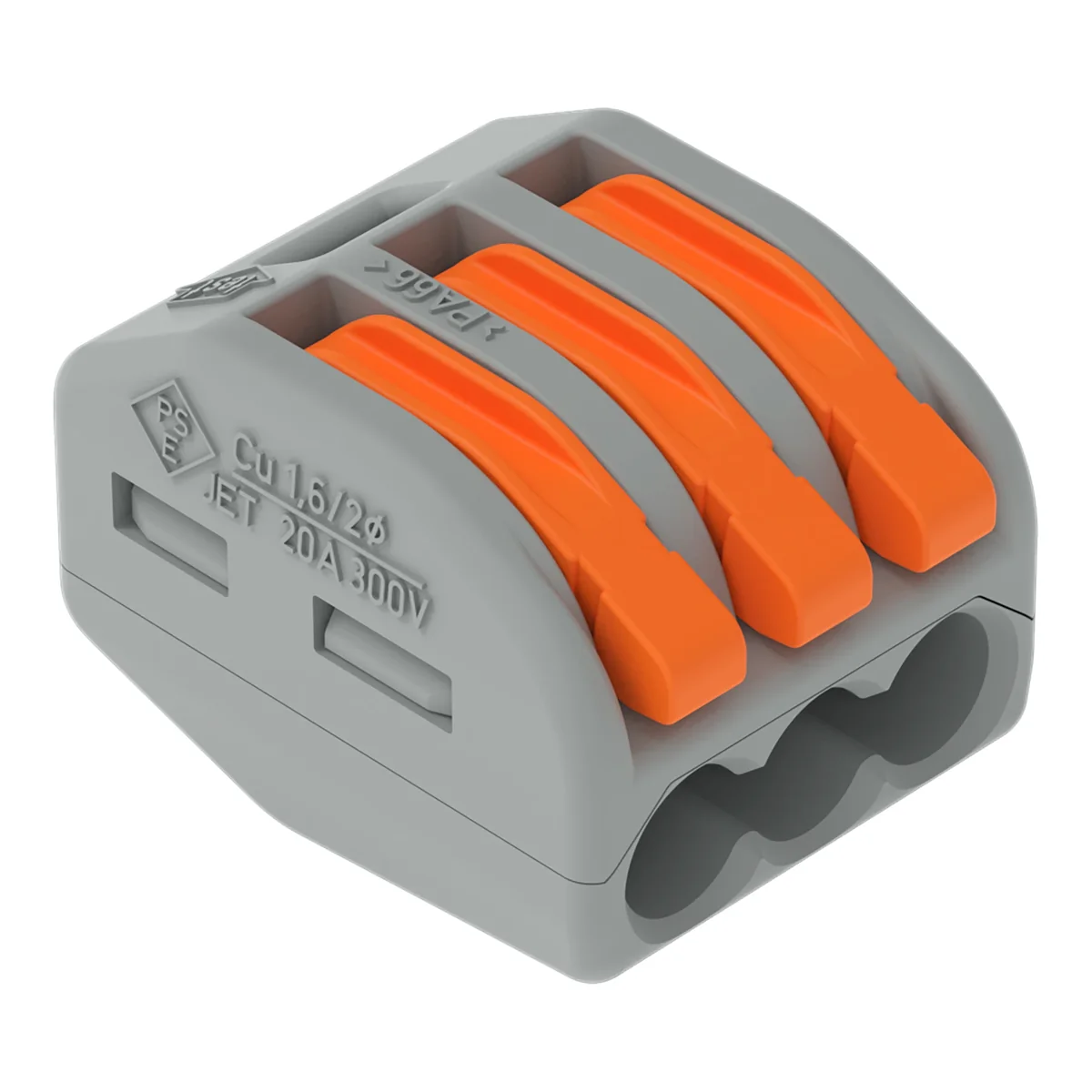

3-wire universal connector with cable release levers, maximum operating temperature 85°C.

Technical data

  • Color
    Gray
  • Gauge [AWG]
    28 - 14
  • Clamp type
    CAGE CLAMP
  • Dirt zone
    2
  • Weight [g]
    4.153
  • Rated current [A]
    32
  • Cable type
    E+f
  • Series
    222
  • Pieces in the package
    50
  • Rated impulse voltage [kV]
    4

Other technical data

  • Number of clamp positions
    3
  • With operation lever
    Yes
  • Nominal voltage
    400 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    Yes
  • AWG-range
    28 ... 12
  • Nominal cross section
    0.8 ... 4 mm²
  • Colour
    Other
  • Nominal current
    32 A
  • Suitable for flexible conductors
    Yes
  • Conductor cross section solid (solid, stranded)
    0.08 ... 2.5 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 2,441
Volume (m3) 0,000
Width (m) 0,170
Length (m) 0,310
Depth (m) 0,110
