Click on the photo to enlarge

TRYTYT

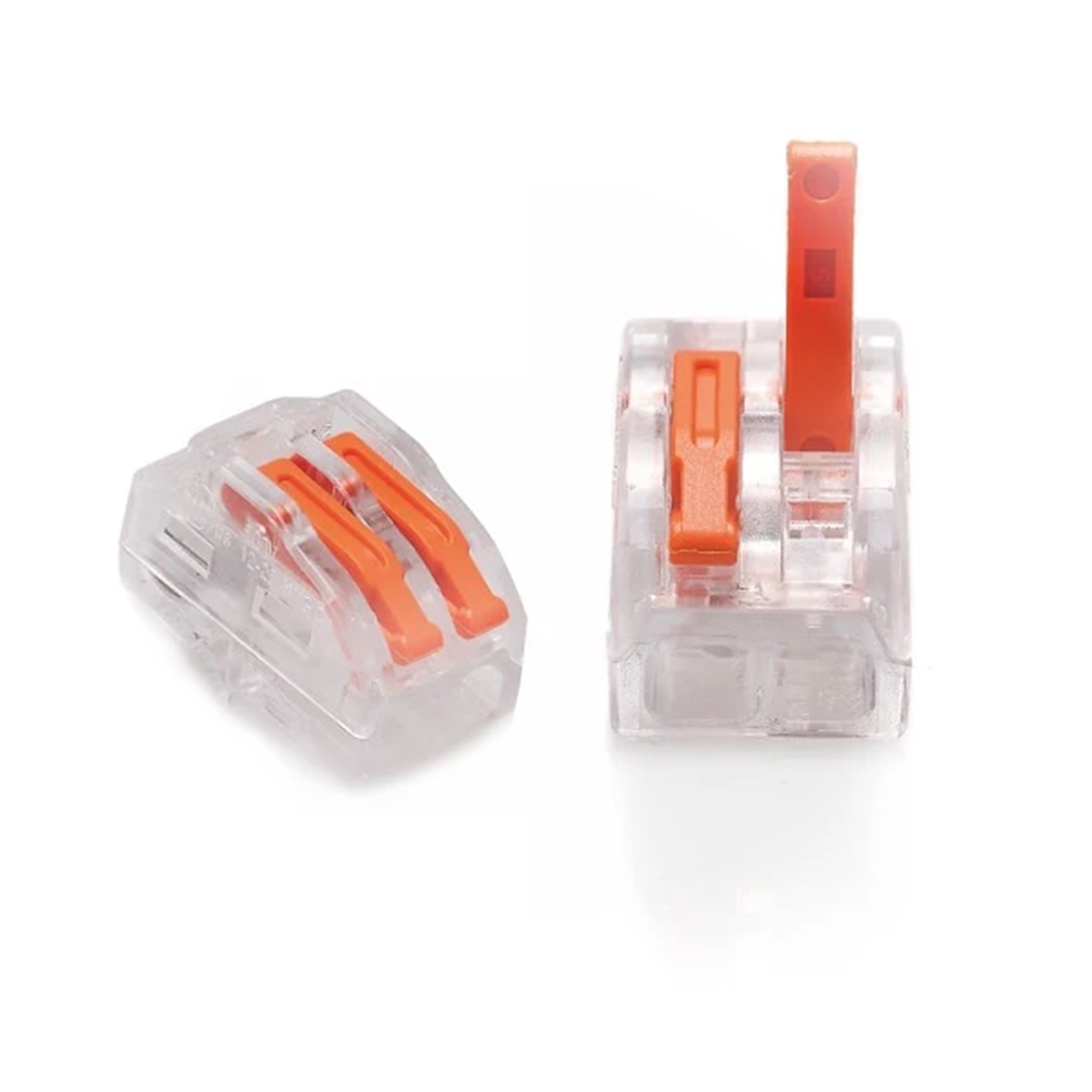

Universal connector 2x4mm2 PC232 50 pcs. PC-232

local index:
TEB015BORP
Catalog No:
PC-232
EAN code:
5901924534877
Price:
14,43 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

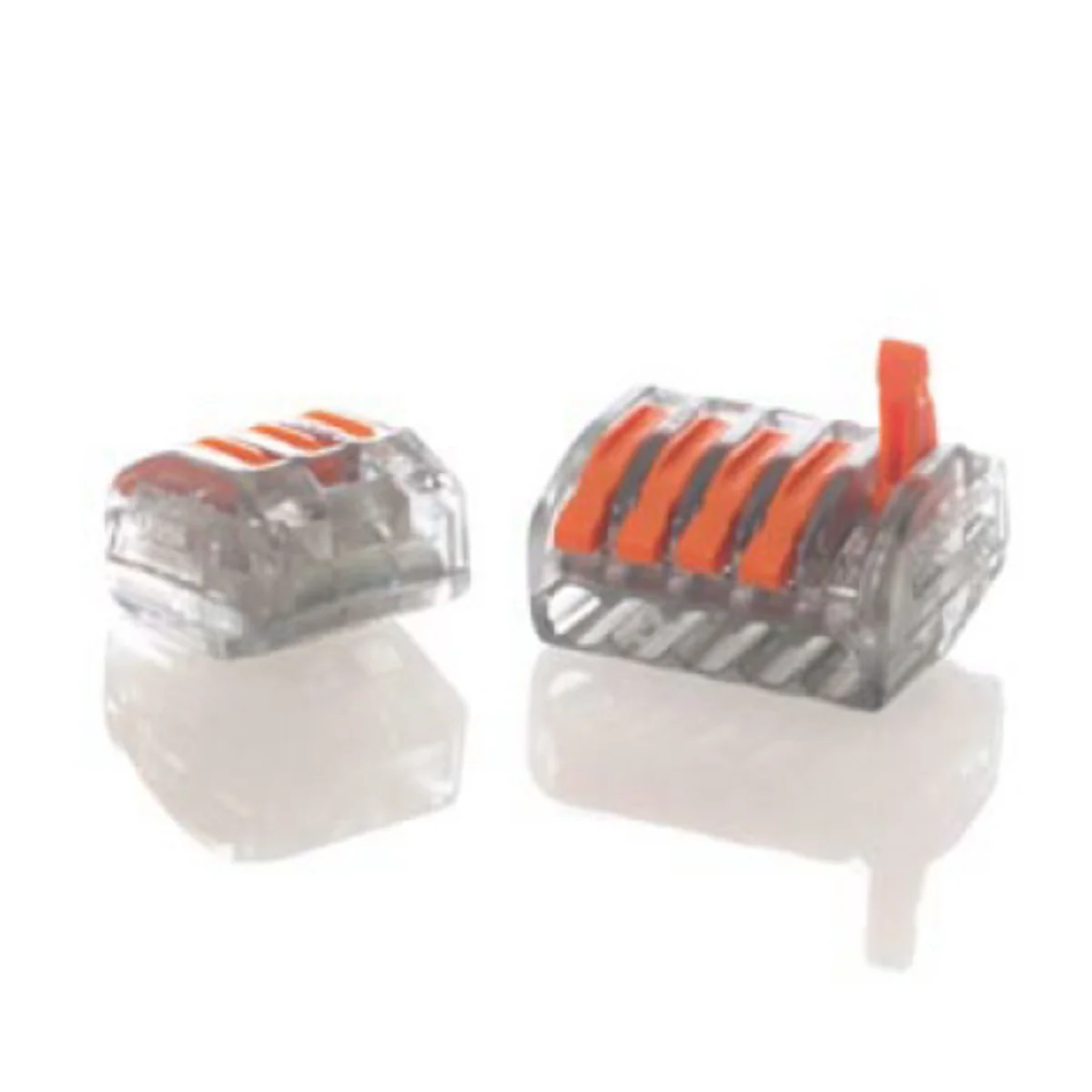

PC23x series universal connectors used to connect solid and stranded wires in the range from 0.08 mm2 to 4mm2. Due to their versatility, connectors are most often used to connect wires in lighting fixtures, control and sound systems, etc. The great advantage of this type of connectors is the ease and speed of assembly without the use of any tools. The universality of the connectors results from, among others, with the possibility of connecting stranded wires with wires of the same or different cross-sections in one connector. Due to the fact that the lever is fully immersed in the housing, there is no risk of the connector opening by itself.

Technical data

  • Material
    Plastic
  • Rated current [A]
    32
  • Rated impulse voltage [kV]
    4
  • Rated voltage [V]
    400
  • Pieces in the package
    50
  • Number of wires
    2
