Triple floor terminal Ph N PE for busbars 10x3mm 4mm2 KXA04I3

local index:
TES117HAGE
Catalog No:
KXA04I3
EAN code:
3250613941727
Manufacturer: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 6
Color: Gray
Price:
6,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

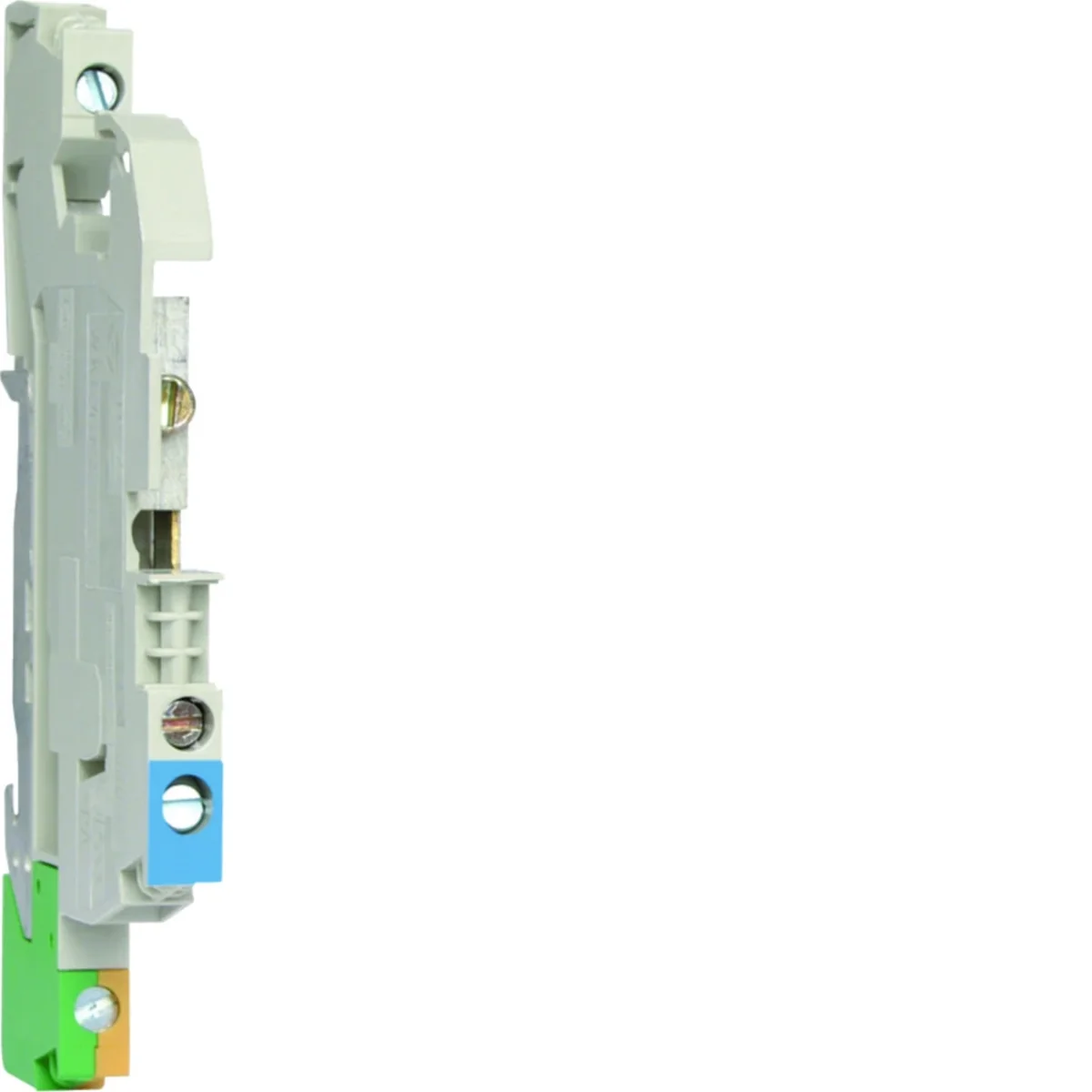

Stack terminal, triple, with neutral barrier, Ph/N/PE, for 10x3mm busbars, series screw terminals.

Characteristics of the series:

  • Creep current resistance: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two wires with the same cross-section for one terminal screw (for PE only 1 conductor)
  • Easy insertion of the conductor into the open terminal thanks to the conical inlet
  • Easy insertion of the screwdriver into the lowered terminal screws
  • Rotation idle/idle motion after loosening the clamping screws - especially important for mechanical screwdrivers
  • All parts permanently fixed in the terminal carrier
  • Equal level up to 35 mm2 to maintain the required insulation distances between individual groups of terminals , possibly at the beginning or end of the group of terminals, a partition/end plate should be placed.

Technical data

  • Energy lost in cables [W]
    1
  • Color
    Gray
  • Rated current [A]
    26
  • Connection type
    With a screw
  • Conductor cross-section (wire) [mm²]
    0.5 - 6
  • Depth [mm]
    6
  • Material
    Polyamide
  • power loss [W]
    1
  • Wire cross-section (cord) [mm²]
    0.5 - 4
  • PKWIU
    27.33.13.0

Other technical data

  • Rated current In
    26 A
  • Type of electrical connection 2
    Screw connection
  • Material insulation body
    Thermoplastic
  • Type of electrical connection 1
    Screw connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Basic colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,016 1,460 315,000
Width (m) 0,052 0,157 0,800
Length (m) 0,006 0,055 1,050
Depth (m) 0,090 0,195 1,200
