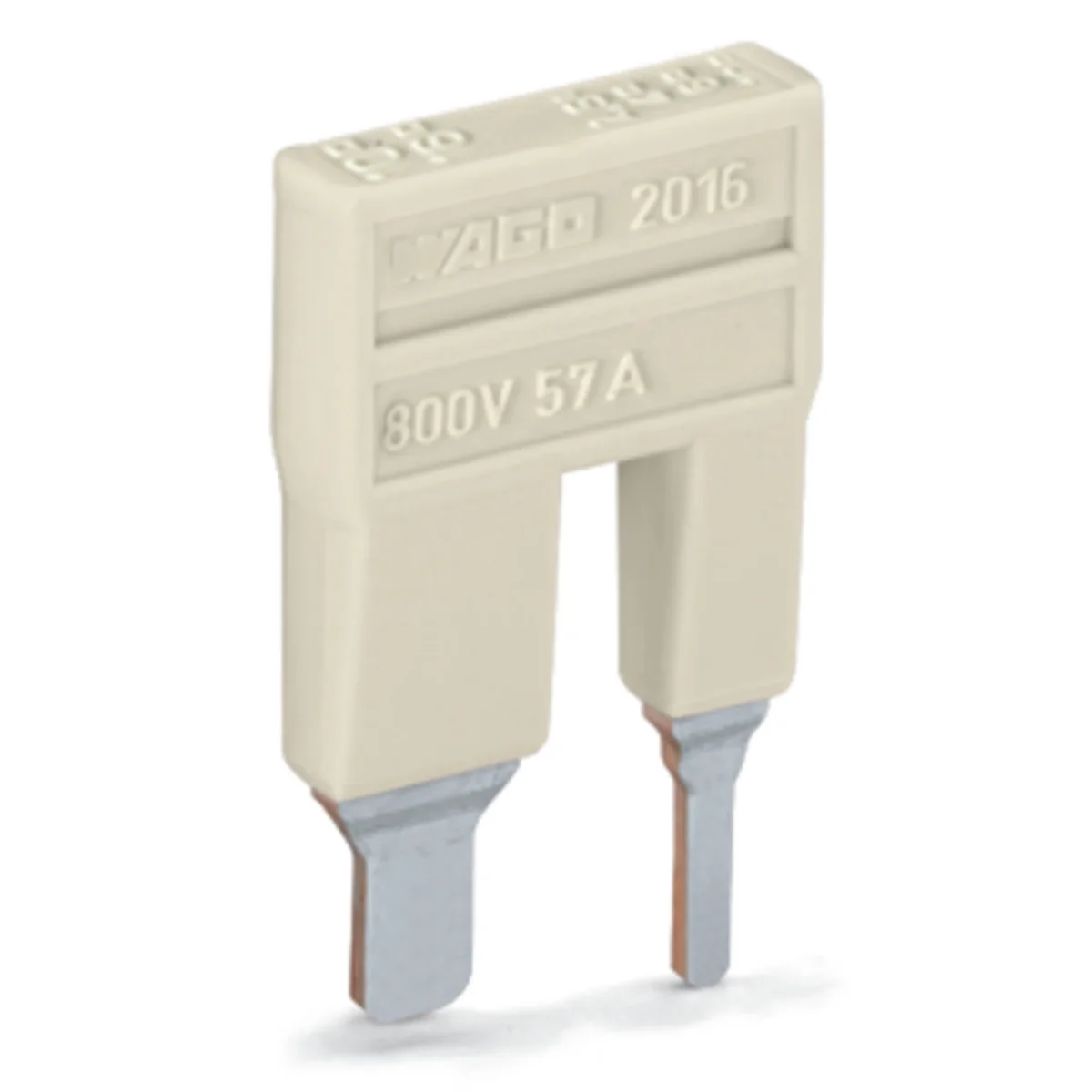

TOPJOBS reducer bridge with light gray insulation 2016-499

local index:
TEB433WAGO
Catalog No:
2016-499
EAN code:
4055143702461
Manufacturer: WAGO ELWAG
Color: Gray
Rated current [A]: 57
Accurate color: light gray
Price:
1,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Reducing bridges enable the connection of through connectors for larger cross-sections with connectors for smaller cross-sections, without taking up space for wires. This is an optimal solution when, due to long distances (voltage drop), wires with a larger cross-section are used than it results from the rated load.

Reducing bridging can be done both from the open and closed side of the connector and also simultaneously in both directions. Terminal blocks for smaller conductor cross-sections can be connected in parallel, if necessary, using a saddle jumper.

Technical data

  • Color
    Gray
  • Accurate color
    light gray
  • Rated current [A]
    57

Other technical data

  • Model
    Reducing connector
  • Explosion-tested version 'Ex e'
    No
  • Rated voltage
    800 V
  • With shock protection
    Yes
  • Modular spacing
    9.1 mm
  • Number of bridged clamps
    2
  • Rated current In
    57 A
  • Insulated
    Yes
  • Mounting method
    Pluggable
  • Colour
    Grey

Bulk packaging

A kind of package Torebka
Quantity 25 pcs.
Weight (kg) 0,083
Volume (m3) 0,000
Width (m) 0,172
Length (m) 0,100
Depth (m) 0,005
