TOPJOBS Double Deck Fuse Terminal Block with Swivel Fuse Base 2.5mm2 Gray 2002-2611

Name: TOPJOBS Double Deck Fuse Terminal Block with Swivel Fuse Base 2.5mm2 Gray
Brand: WAGO ELWAG
SKU: TEB430WAGO
Price: 21.51 PLN

Índice local:

TEB430WAGO

Número de catálogo:

2002-2611

Código EAN:

4055143146234

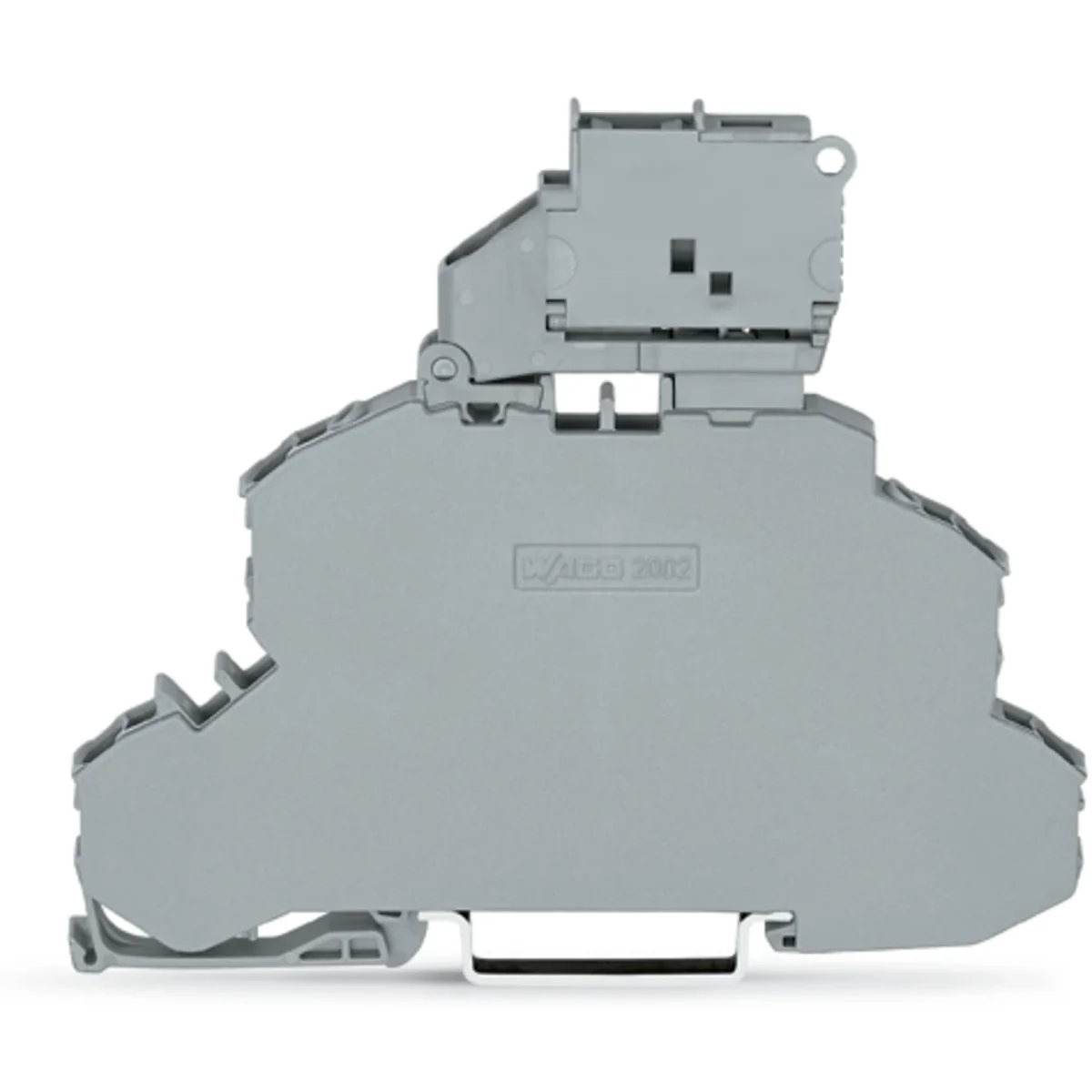

TOPJOBS Double Deck Fuse Terminal Block with Swivel Fuse Base 2.5mm2 Gray

Haga clic en la foto para ampliar

Fabricante: WAGO ELWAG

Depth [mm]: 76.4

Number of terminals: 4

Color: Gray

Ver descripción completa

Precio:

21,51 zł

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 4 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

TOPJOB® S is a group of products intended for use in industry and in modern installation solutions, guaranteeing reliable performance of necessary cable connections.

Datos técnicos

Depth [mm]

76.4
Color

Gray
Material

Polyamide 66
Rated voltage [V]

250
The plane of description

Description in the middle/side
Nominal cross-section [mm²]

2.5
Width [mm]

6.2
Height [mm]

93

Number of terminals

4
Number of potentials

2
Installation

On the TH35 rail
Rated voltage EN (Ex e II) [V]

275
Rated current [A]

6.3
Family

TopJobs
Wire connection technique

Push-in CAGE CLAMP
Rated impulse voltage [kV]

6

Otros datos técnicos

Type of fuse insert

G-fuse 5x20 mm
Type of indication element for defect indication

None
Connectable conductor cross section fine-strand with cable end sleeve

0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 4 mm²
Rated voltage

400 V
Type of electrical connection 2

Spring clamp connection
Connection position

Atop
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

76.4 mm
Closing plate required

Yes

Type of fuse holder

Swivelling
Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.75 ... 4 mm²
Rated current In

16 A
Type of electrical connection 1

Spring clamp connection
Number of levels

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Width/grid dimension

6.2 mm
Length

93 mm
Colour

Grey

Detalles del fabricante

Fabricante

WAGO GmbH & Co. KG
Dirección

32423 Minden Hansastraße 27 Niemcy
Email

wago.elwag@wago.com

Empaquetado a granel

una especie de paquete	Karton
Cantidad	25 uds.
Peso (kg)	0,620
Volumen (m3)	0,002
Ancho (m)	0,125
Longitud (m)	0,190
Profundidad (m)	0,090
