Connecting cables and wires
Connectors
Rail connectors

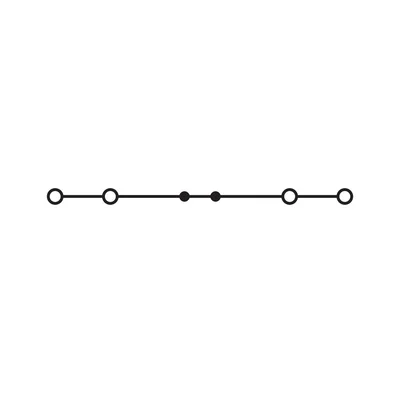

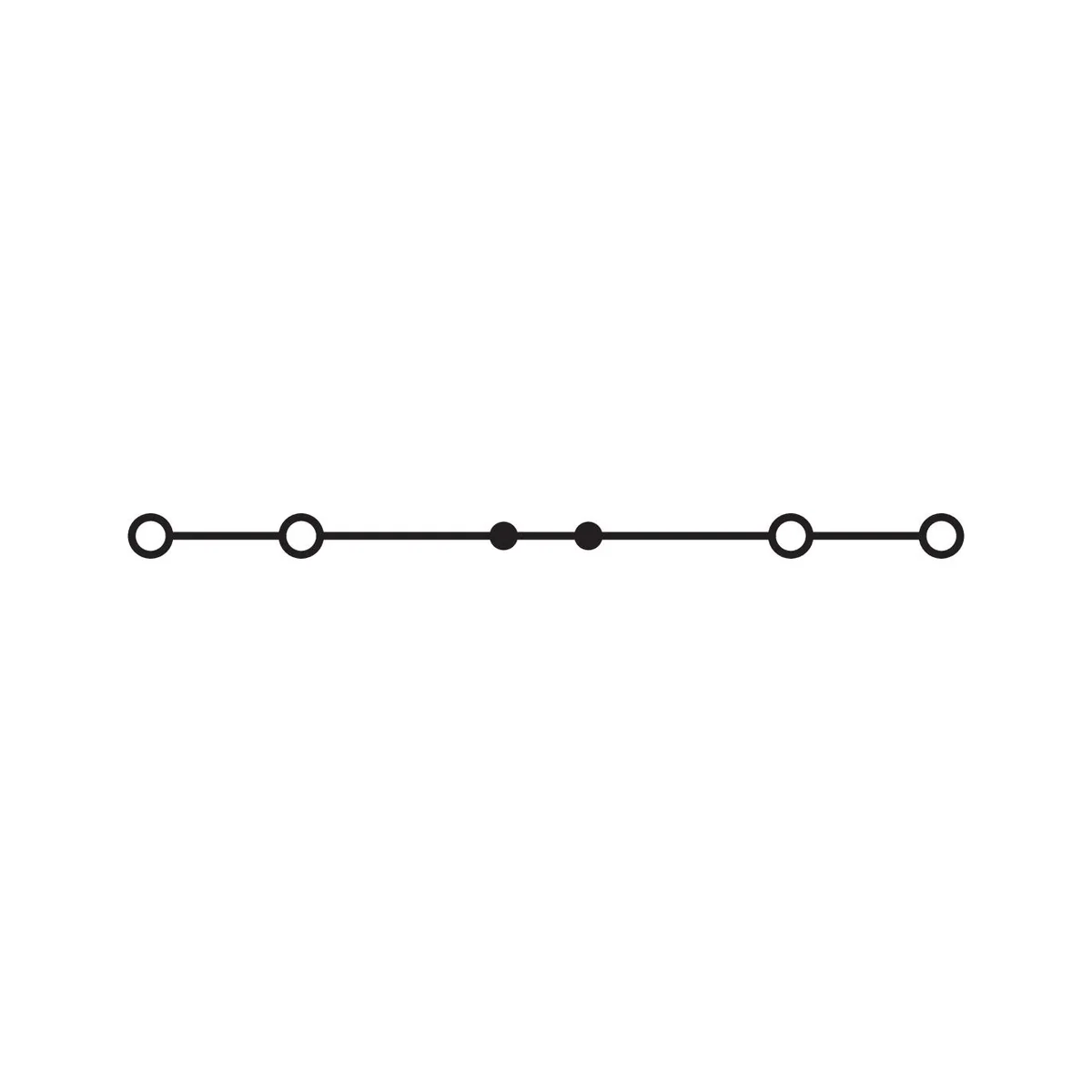

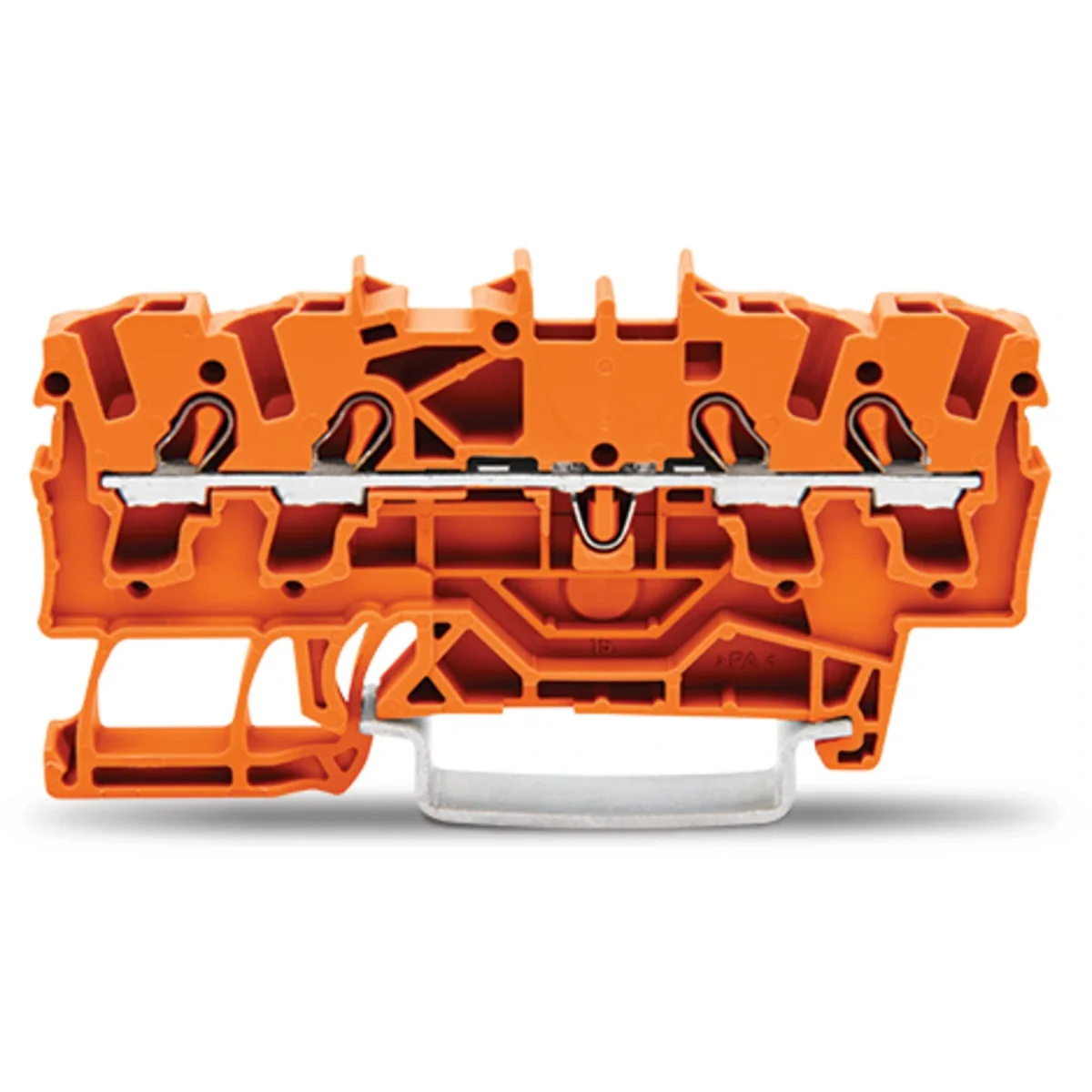

TOPJOBS 4-wire terminal block 2.5mm² orange 100pcs 2002-1402
local index:
TES037WAGO
Catalog No:
2002-1402
EAN code:
4017332999298
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Certifications/Standards:
IEC/EN 60947-7-1
Color:
Silver
Number of poles:
4
See full description
Price:
122,20 €
gross / pkg.
(including VAT 23%)
1,22 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
TOPJOBS 4-wire connector 2.5 mm2 orange
Technical data
Certifications/Standards
IEC/EN 60947-7-1
Number of poles
4
Surge voltage [kV]
8
Rated voltage EN [V]
800
Gauge [AWG]
22
Series
2002
Pieces in the package
100
Accurate color
Orange
Minimum stripping length [mm]
10
Color
Silver
Total number of potentials
1
Rated voltage EN (Ex e II) [V]
550
Rated current [A]
24
Type of wiring
Front wiring
Degree of contamination
3
Wire connection technique
CAGE CLAMP®
Maximum stripping length [mm]
12
Number of connectors
4
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
4
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
32.9 mm
Explosion-tested version 'Ex e'
Yes
Colour
Orange
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
70 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,807
Volume (m3)
0,002
Width (m)
0,155
Length (m)
0,275
Depth (m)
0,048
See more >>
