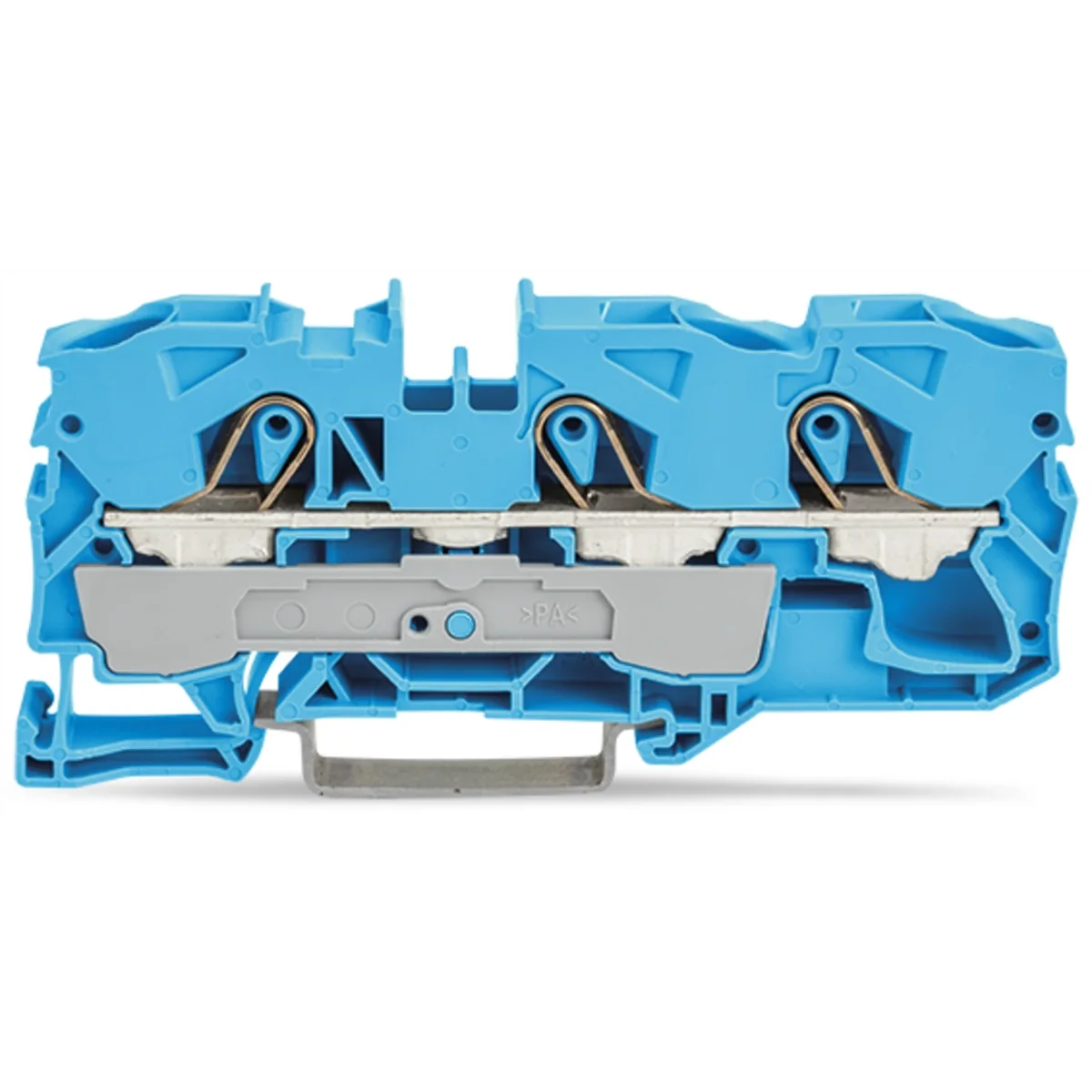

Name: TOPJOBS 3-wire connector 10mm² blue
Brand: WAGO ELWAG
SKU: TEB771WAGO
Price: 3.06 PLN
Availability: InStock

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 16 mm²
Connectable conductor cross section solid-core

2.5 ... 16 mm²
Rated current In

57 A
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per level

3
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

37 mm
Explosion-tested version 'Ex e'

Yes
Colour

Blue

Connectable conductor cross section fine-strand with cable end sleeve

2.5 ... 10 mm²
Connectable conductor cross section multi-wired

0.5 ... 10 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Width/grid dimension

10 mm
Length

89 mm
Closing plate required

Yes
Internally connected stages

No
