Connecting cables and wires
Connectors
Screwless connectors

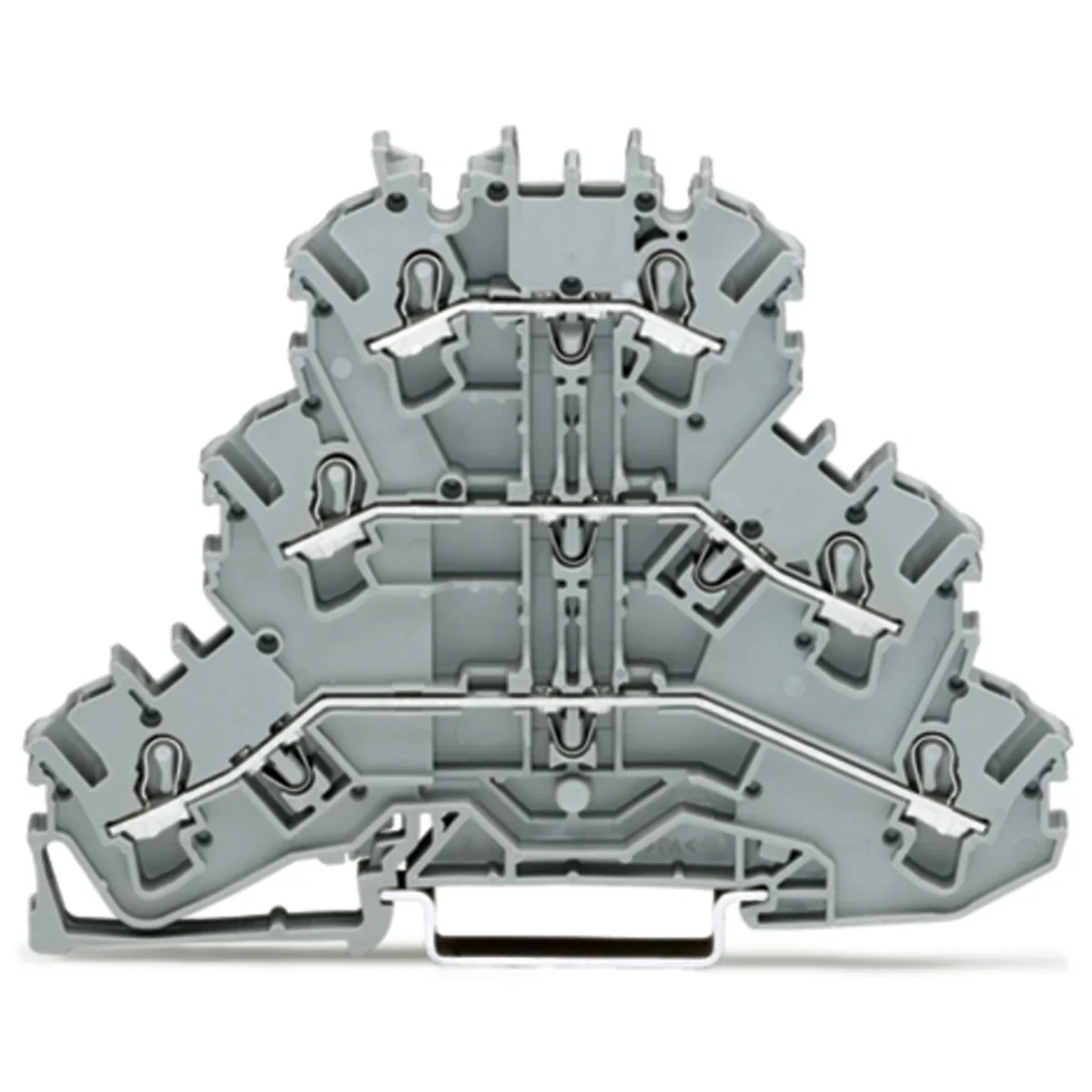

TOPJOBS 3-Deck Splice 2.5mm² L/L/L Gray 50pcs 2002-3201
local index:
TEB132WAGO
Catalog No:
2002-3201
EAN code:
4044918691185
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Series:
2002
Pieces in the package:
50
See full description
Price:
2,92 €
gross / pcs.
(including VAT 23%)
0,06 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
TOPJOBS 3-deck terminal block 2.5 mm2 L/L/L gray
Technical data
Series
2002
Pieces in the package
50
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
69.5 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
500 V
Type of electrical connection 2
Spring clamp connection
Number of levels
3
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
93.5 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
50 pcs.
Weight (kg)
0,919
Volume (m3)
0,002
Width (m)
0,105
Length (m)
0,285
Depth (m)
0,094
