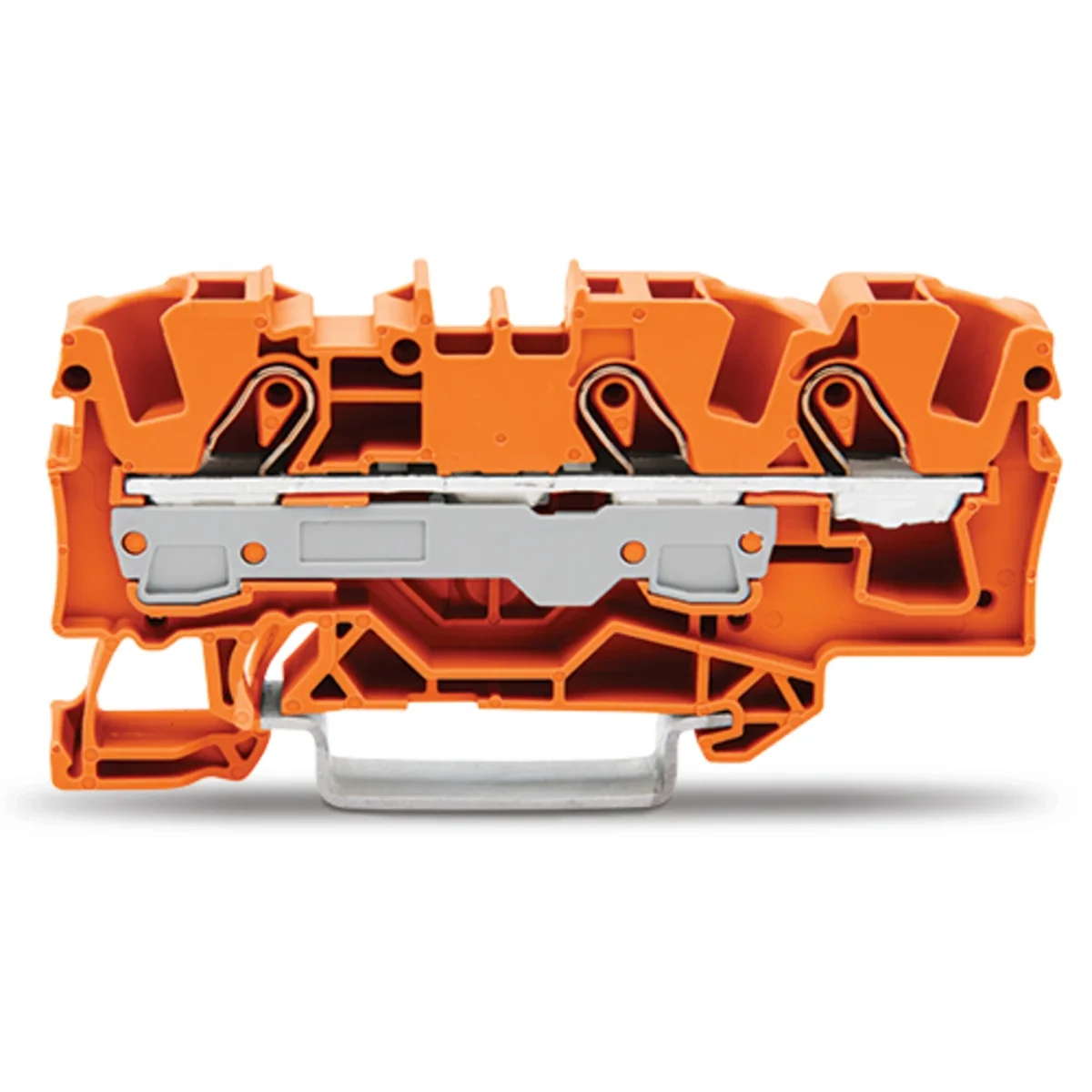

TOPJOBS 3-Conductor Ex e II 6mm2 Through Terminal Block Orange 2006-1302

Внутрішній артикул:
TEB311WAGO
№ каталоговий:
2006-1302
Код EAN:
4017332999700
Виробник: WAGO ELWAG
Depth [mm]: 32.9
Number of terminals: 3
Color: Orange
Розпродаж

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Ціна:
5,52 zł
gross / шт.
(з ПДВ 23%)
Найнижча ціна від 30 днів до знижки: 5,52 zł gross
Ціна виробника: 15,90 zł gross
Доступний 7 шт.
Самовивіз через 1 год
Доставка за 3 години
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

TOPJOB® S is a group of products intended for use in industry and in modern installation solutions, guaranteeing reliable performance of necessary cable connections.

Технічні дані

  • Depth [mm]
    32.9
  • Color
    Orange
  • Material
    Polyamide 66
  • Rated voltage [V]
    800
  • The plane of description
    Description in the middle/side
  • Nominal cross-section [mm²]
    6
  • Width [mm]
    7.5
  • Height [mm]
    73.3
  • Number of terminals
    3
  • Number of potentials
    1
  • Installation
    On the TH35 rail
  • Rated voltage EN (Ex e II) [V]
    550
  • Rated current [A]
    41
  • Family
    TopJobs
  • Wire connection technique
    Push-in CAGE CLAMP
  • Rated impulse voltage [kV]
    8

Інші технічні дані

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 10 mm²
  • Connectable conductor cross section solid-core
    1 ... 10 mm²
  • Rated current In
    41 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    3
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    33 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Orange
  • Connectable conductor cross section fine-strand with cable end sleeve
    1.5 ... 6 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 6 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    7.5 mm
  • Length
    73.5 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No

Інформація про виробника

  • Виробник
    WAGO GmbH & Co. KG
  • Адреса
    32423 Minden Hansastraße 27 Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton
Кількість 25 шт.
Вага (кг) 0,339
Об'єм (м3) 0,001
Ширина (м) 0,094
Довжина (м) 0,222
Глибина (м) 0,048
