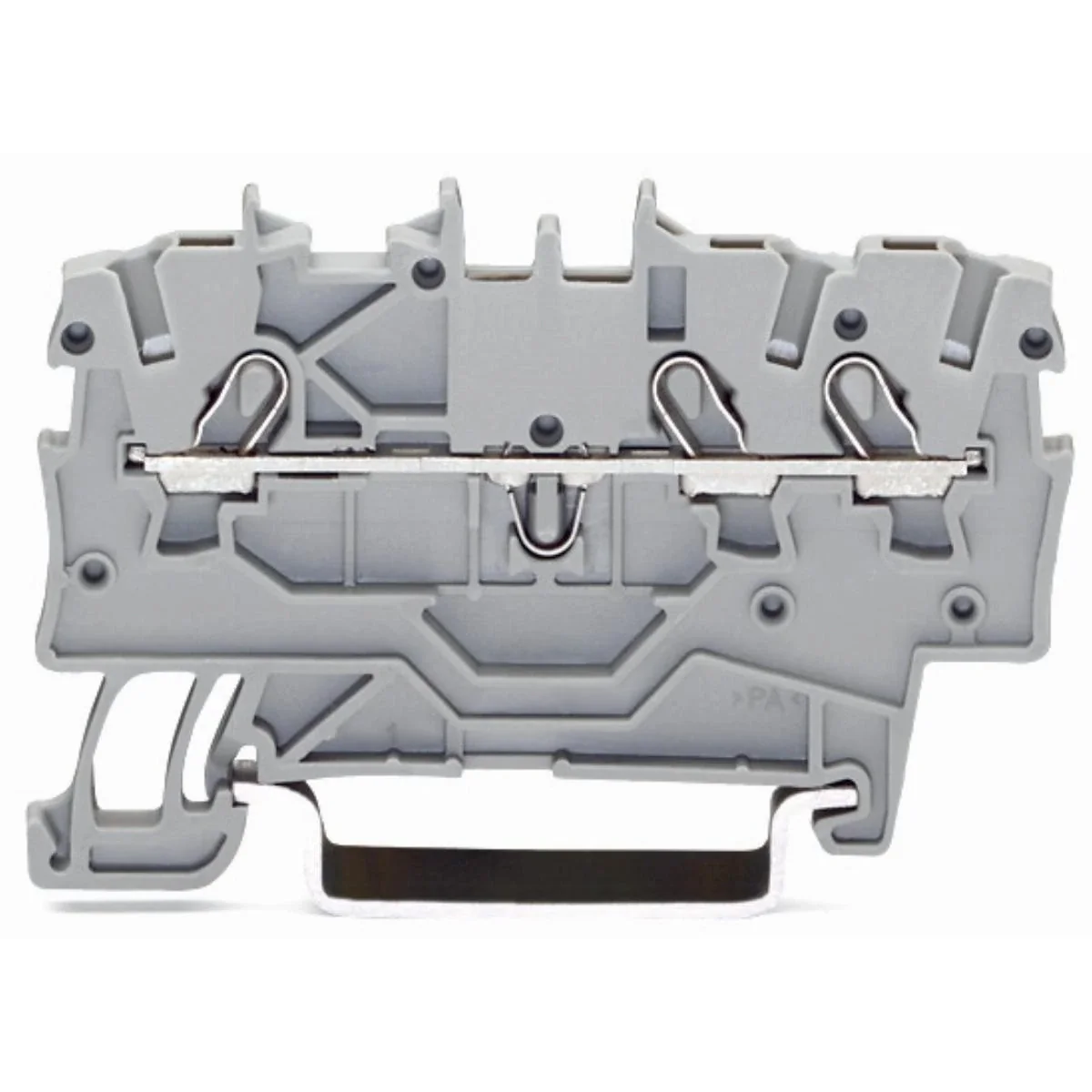

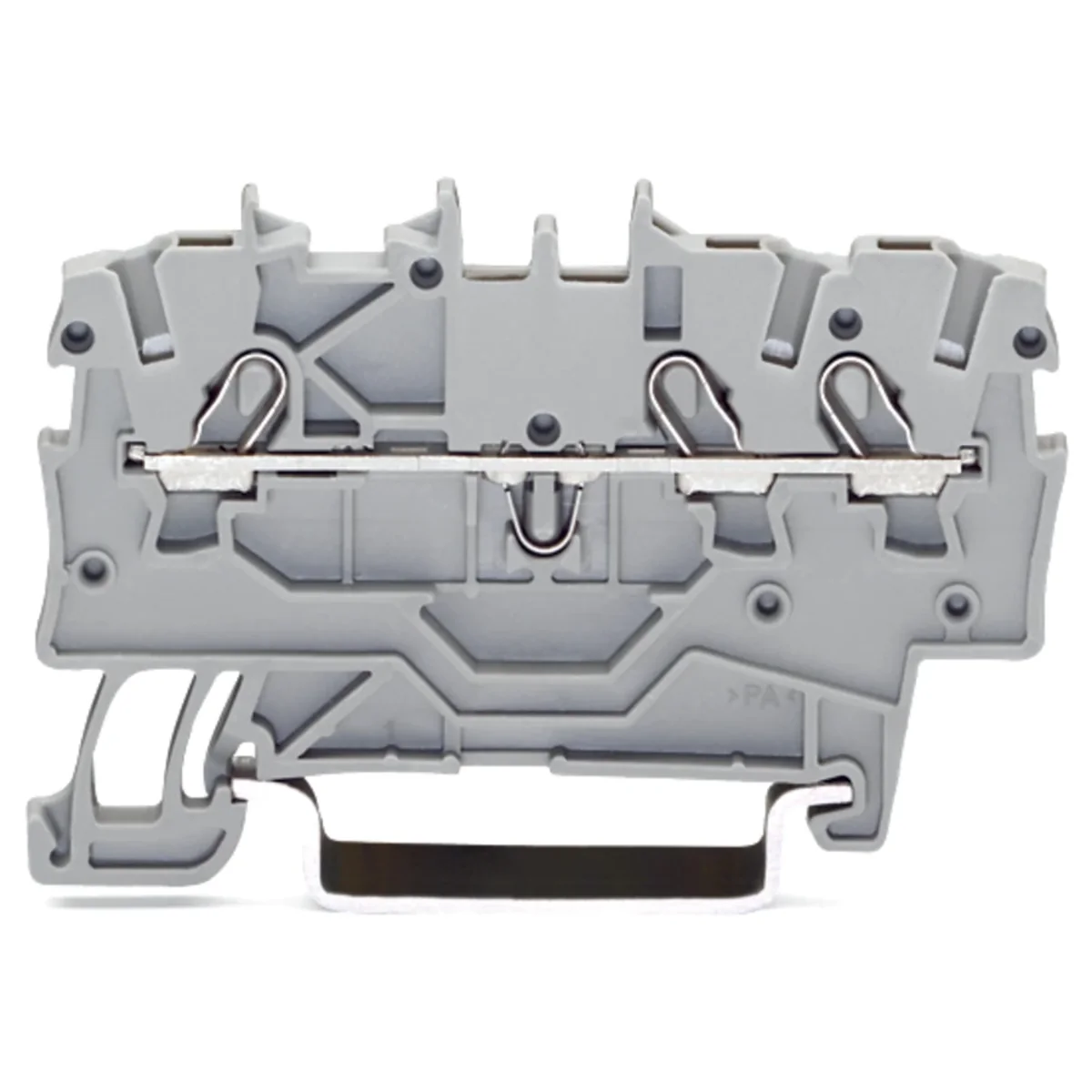

TOPJOBS 3-Conductor Ex e II 1mm2 Blue Through Terminal Block 2000-1304

local index:
TES168WAGO
Catalog No:
2000-1304
EAN code:
4045454966874
Manufacturer: WAGO ELWAG
Depth [mm]: 32.9
Number of terminals: 3
Color: Blue
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,55 €
gross / pcs.
(including VAT 23%)
Last lowest price: 1,35 € gross
Base price: 1,39 € gross -60%
Delivery in 3h
Accessible 109 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

TOPJOB® S is a group of products intended for use in industry and in modern installation solutions, guaranteeing reliable performance of necessary cable connections.

Technical data

  • Depth [mm]
    32.9
  • Color
    Blue
  • Material
    Polyamide 66
  • Rated voltage [V]
    800
  • The plane of description
    Description in the middle/side
  • Nominal cross-section [mm²]
    1
  • Width [mm]
    3.5
  • Height [mm]
    58.2
  • Number of terminals
    3
  • Number of potentials
    1
  • Installation
    On the TH35 rail
  • Rated voltage EN (Ex e II) [V]
    550
  • Rated current [A]
    13.5
  • Family
    TopJobs
  • Wire connection technique
    Push-in CAGE CLAMP
  • Rated impulse voltage [kV]
    8

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14 ... 1.5 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 1.5 mm²
  • Rated current In
    13.5 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    3
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    33 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 0.75 mm²
  • Connectable conductor cross section multi-wired
    0.14 ... 1 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    3.5 mm
  • Length
    58.2 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 0,492
Volume (m3) 0,001
Width (m) 0,137
Length (m) 0,227
Depth (m) 0,048
