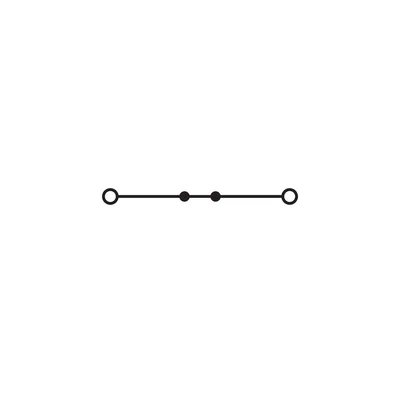

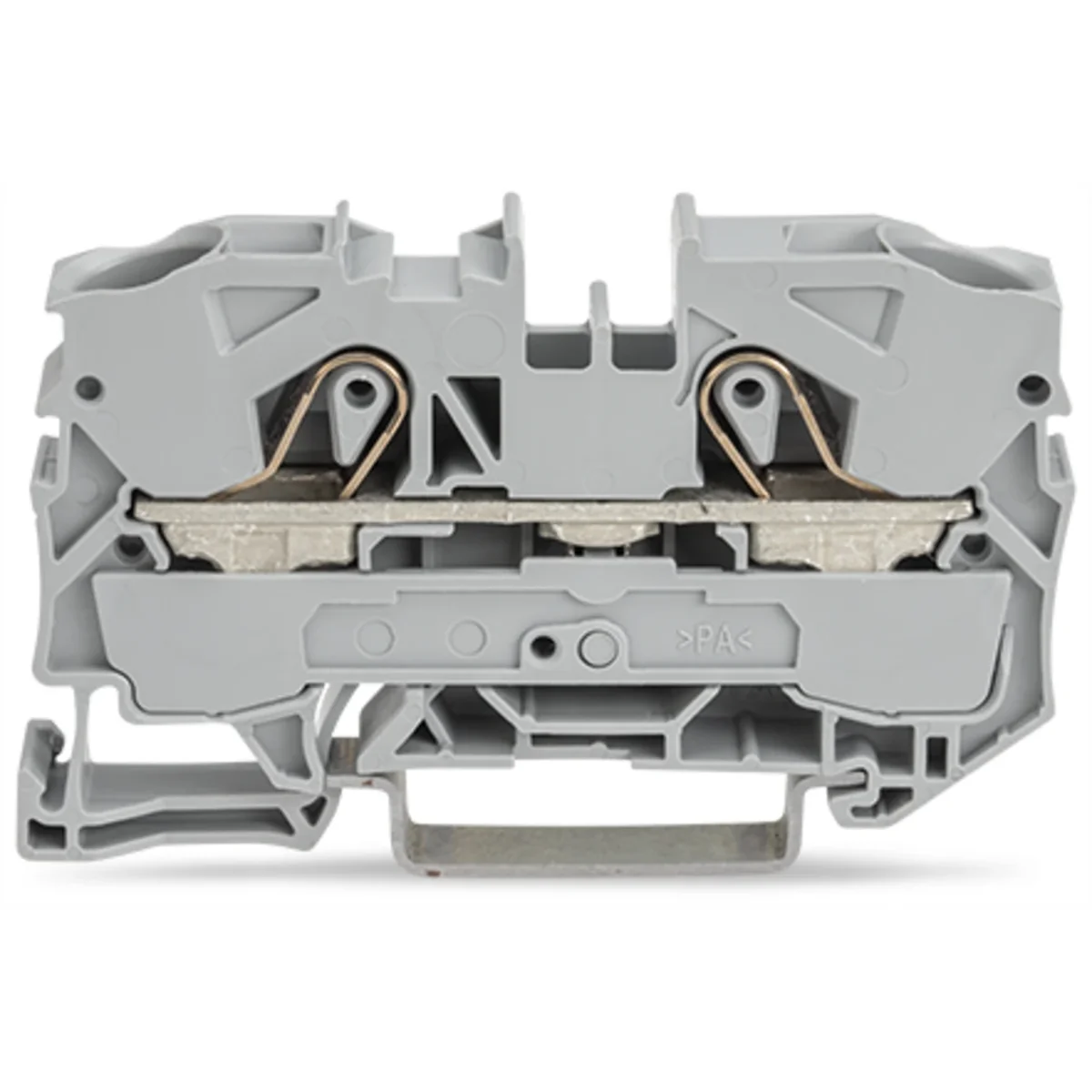

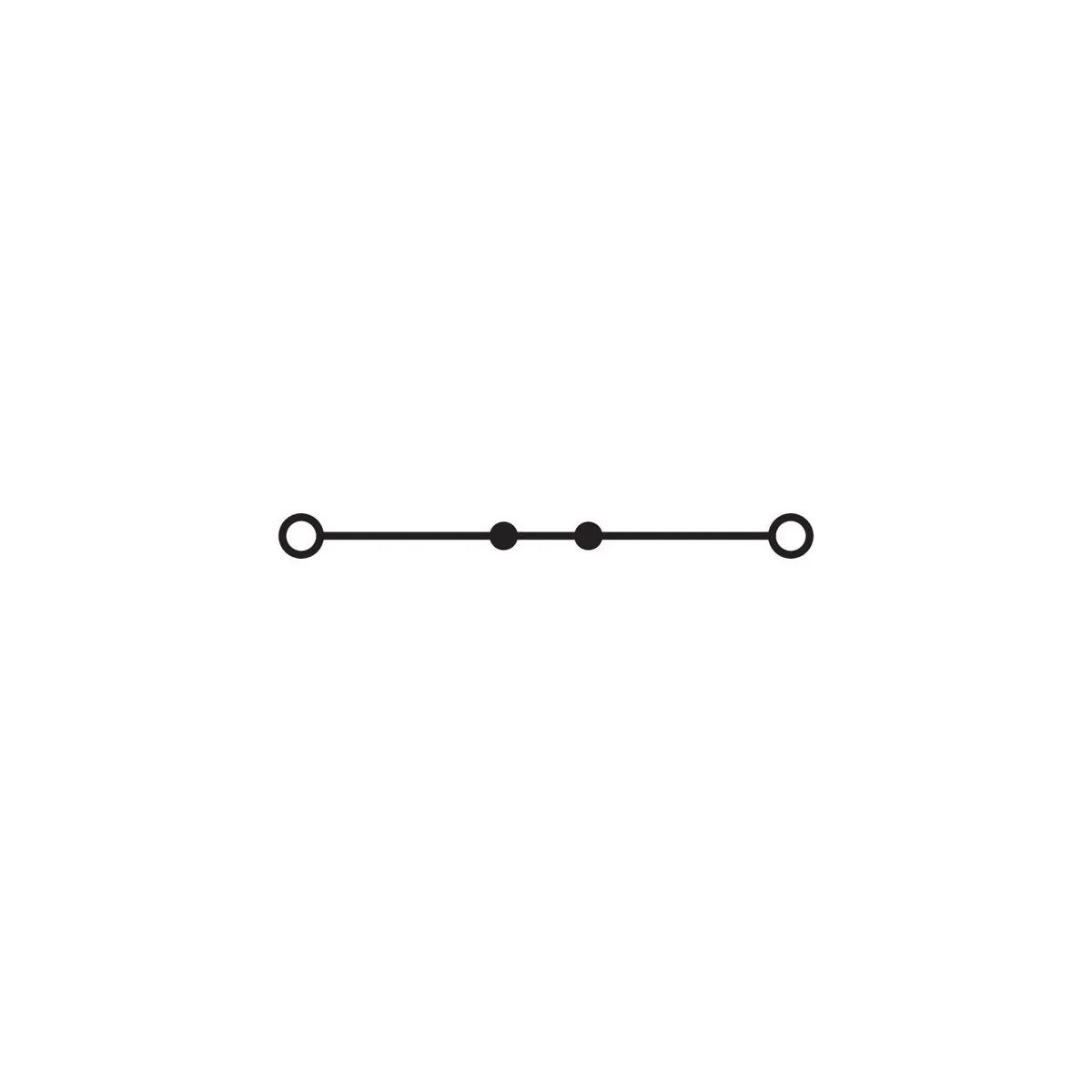

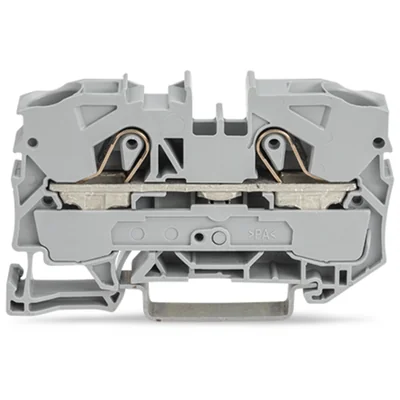

TOPJOBS 2-wire terminal block 10mm² grey 2010-1201
local index:
TES014WAGO
Catalog No:
2010-1201
EAN code:
4017332076005
Price:
1,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
10 mm2 TOPJOBS 2-wire terminal block grey
Technical data
-
Length [mm]68
-
ColorGray
-
Number of clamps per level2
-
Rated current [A]57
-
Cross-section of the connected stranded wire without ferrule [mm]0.5 - 16
-
Type of electrical connectionSpring clip
-
Explosion-proof execution Ex-e - confirmedYes
-
Height with the lowest mounting method [mm]37
-
Insulation materialThermoplastic
-
number of phases1
-
Number of levels1
-
InstallationOn the TH-35 rail
-
Cross-section of connected single-wire cable [mm]2.5 - 16
-
Cross-section of the connected stranded wire with a ferrule [mm]2.5 - 10
-
Series2010
-
Closing plate requiredYes
-
Accurate colorGray
-
Number of connectors1
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 16 mm²
-
Connectable conductor cross section solid-core2.5 ... 16 mm²
-
Rated current In57 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu37 mm
-
Explosion-tested version 'Ex e'Yes
-
ColourGrey
-
Connectable conductor cross section fine-strand with cable end sleeve2.5 ... 10 mm²
-
Connectable conductor cross section multi-wired0.5 ... 10 mm²
-
Rated voltage800 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension10 mm
-
Length68 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 25 pcs. |
| Weight (kg) | 0,492 |
| Volume (m3) | 0,001 |
| Width (m) | 0,085 |
| Length (m) | 0,276 |
| Depth (m) | 0,060 |
