Connecting cables and wires
Connectors
Screwless connectors

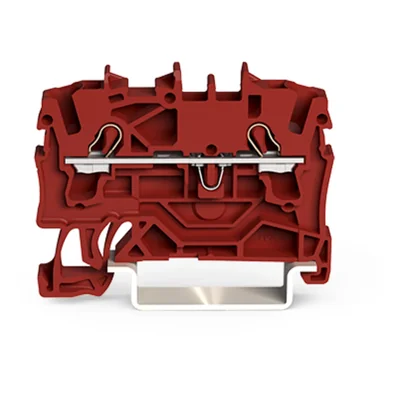

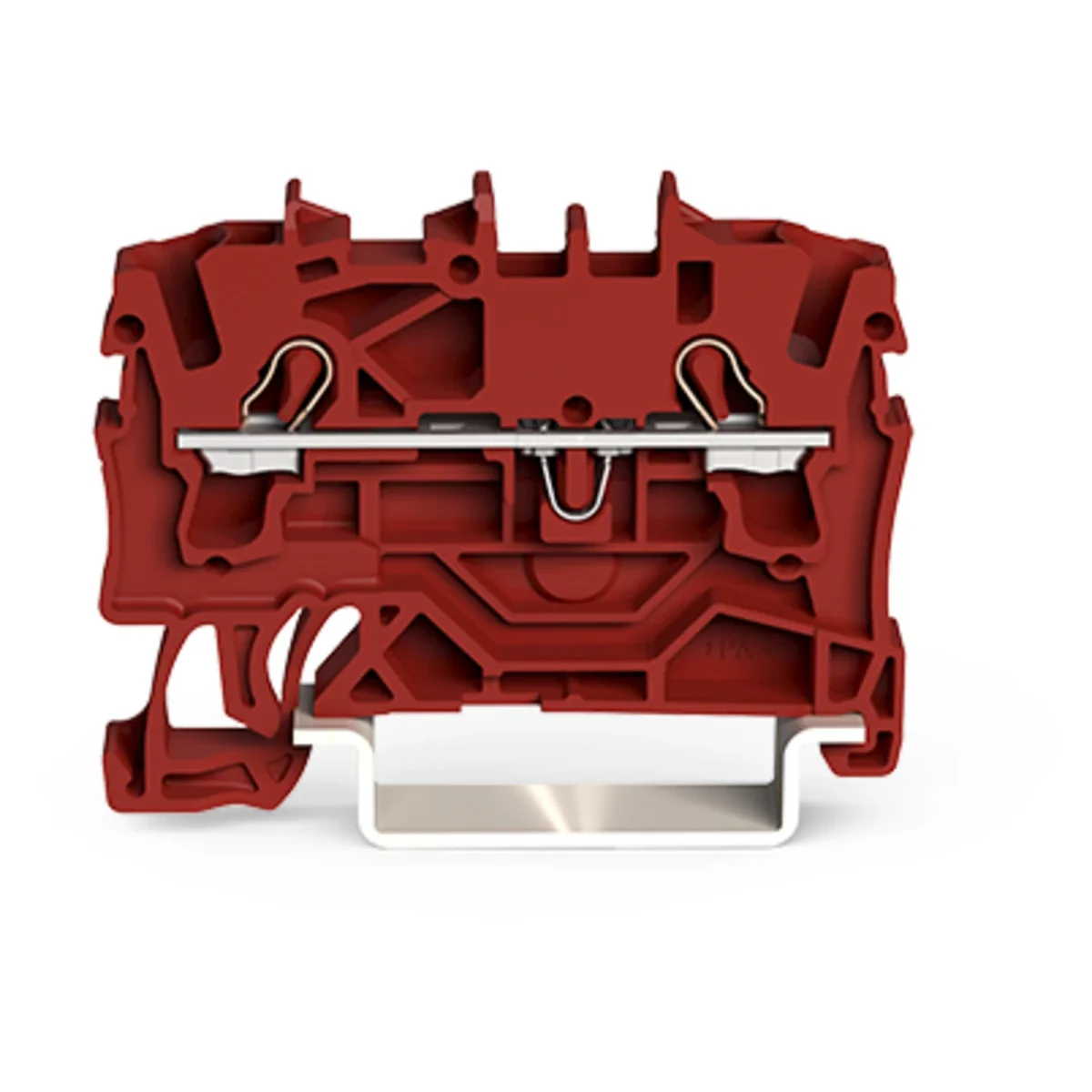

TOPJOBS 2-wire connector 2.5mm² red 2002-1203
local index:
TEB825WAGO
Catalog No:
2002-1203
EAN code:
4044918081375
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Color:
Red
Rated current [A]:
32
Gauge [AWG]:
2014-12-22 00:00:00
See full description
Price:
0,80 €
gross / pcs.
(including VAT 23%)
183,11 € gross/kg.
Delivery in 3h
Accessible 8 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description

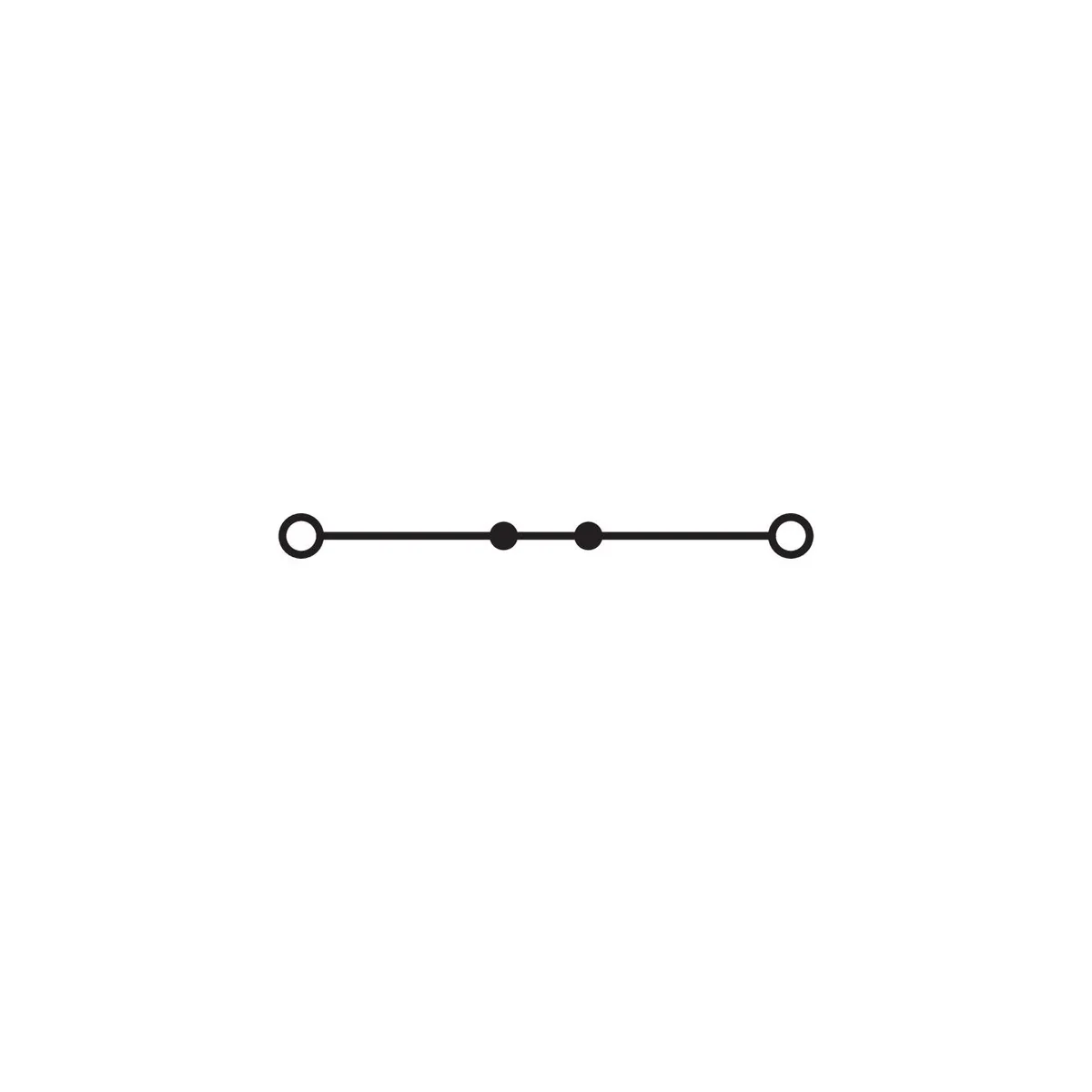

2-conductor feed-through terminal block with Ex e II.
Technical data
Color
Red
Gauge [AWG]
2014-12-22 00:00:00
Clamp type
CAGE CLAMP S
Dirt zone
3
Rated impulse voltage [kV]
8
Rated current [A]
32
Cable type
E+f
Series
2002
Weight [g]
4,369
Accurate color
Red
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
32.9 mm
Explosion-tested version 'Ex e'
Yes
Colour
Red
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
48.5 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
100 pcs.
Weight (kg)
0,566
Volume (m3)
0,002
Width (m)
0,114
Length (m)
0,274
Depth (m)
0,056
