TOPJOBS 2-wire connector 10mm² blue 2010-1204

local index:
TES015WAGO
Catalog No:
2010-1204
EAN code:
4017332076166
Manufacturer: WAGO ELWAG
Length [mm]: 68
number of phases: 1
Color: Blue
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
1,32 €
gross / pcs.
(including VAT 23%)
Last lowest price: 3,14 € gross
Base price: 3,22 € gross -59%
Delivery in 3h
Accessible 50 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

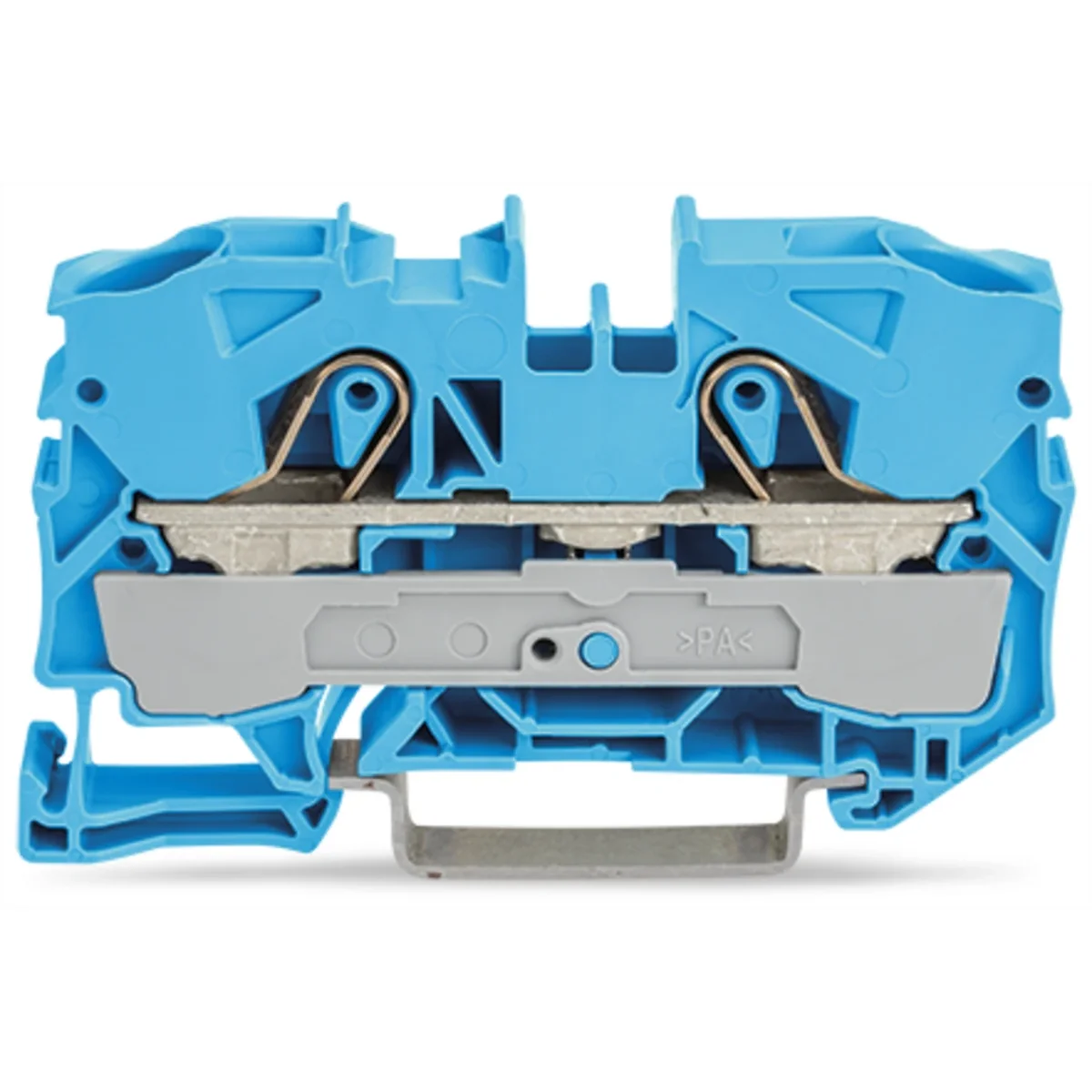

10mm2 TOPJOBS 2-wire connector blue

Technical data

  • Length [mm]
    68
  • Color
    Blue
  • Number of clamps per level
    2
  • Rated current [A]
    57
  • Cross-section of the connected stranded wire without ferrule [mm]
    0.5 - 16
  • Type of electrical connection
    Spring clip
  • Explosion-proof execution Ex-e - confirmed
    Yes
  • Height with the lowest mounting method [mm]
    37
  • Insulation material
    Thermoplastic
  • number of phases
    1
  • Number of levels
    1
  • Installation
    On the TH-35 rail
  • Cross-section of connected single-wire cable [mm]
    2.5 - 16
  • Cross-section of the connected stranded wire with a ferrule [mm]
    2.5 - 10
  • Series
    2010
  • Closing plate required
    Yes
  • Accurate color
    Blue
  • Number of connectors
    1

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 16 mm²
  • Connectable conductor cross section solid-core
    2.5 ... 16 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    37 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    2.5 ... 10 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 10 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    10 mm
  • Length
    68 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No

Bulk packaging

A kind of package Karton
Quantity 25 pcs.
Weight (kg) 0,498
Volume (m3) 0,001
Width (m) 0,085
Length (m) 0,276
Depth (m) 0,060
