Connecting cables and wires
Connectors
Screwless connectors

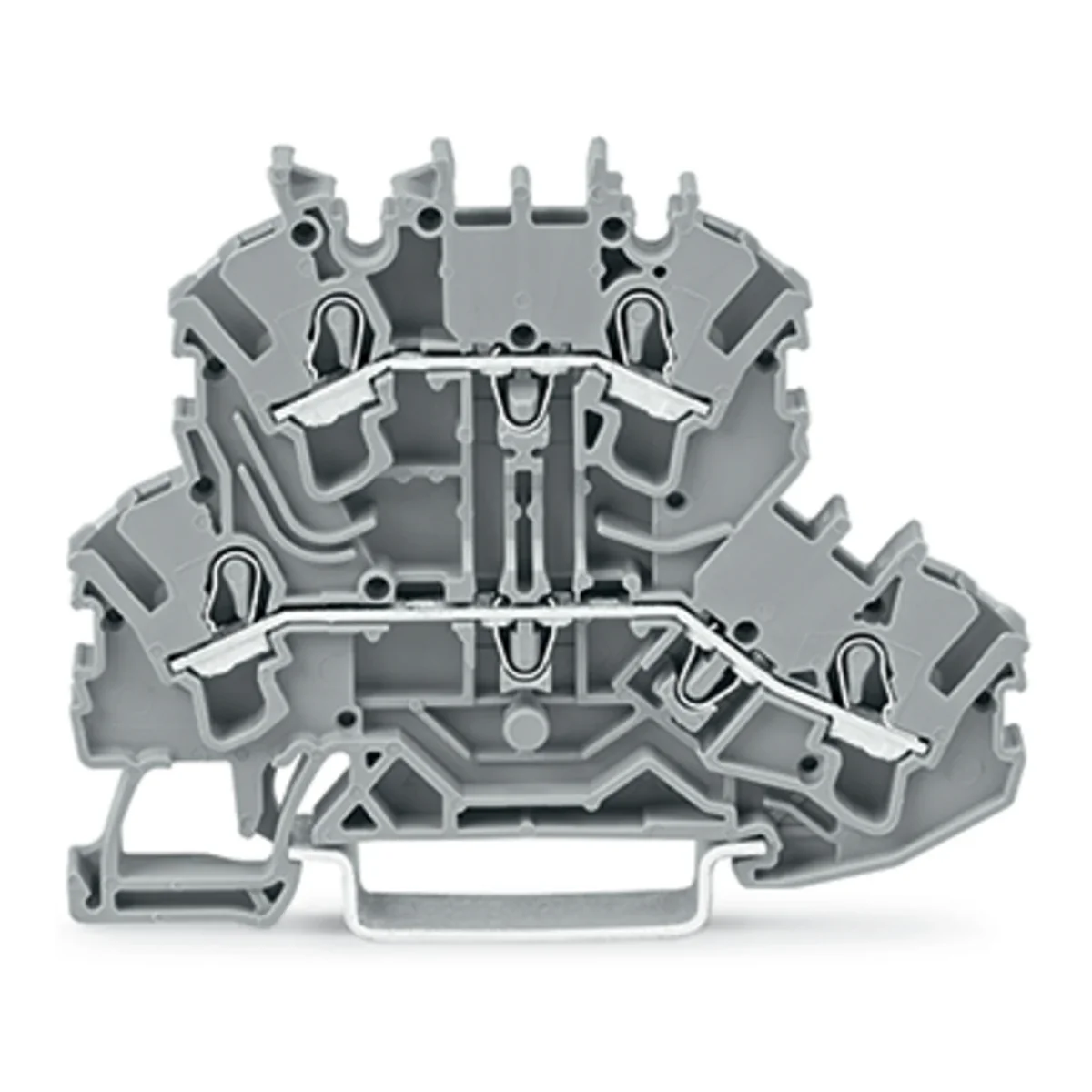

TOPJOBS 2-Deck Splice 2.5mm² L/L Grey 2002-2201
local index:
TEB141WAGO
Catalog No:
2002-2201
EAN code:
4044918753517
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Certifications/Standards:
IEC/EN 60947-7-1
Stripping length [mm]:
0.43
Color:
Gray
See full description
Price:
1,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
TOPJOBS 2-deck 2.5 mm2 L/L terminal block grey
Technical data
Certifications/Standards
IEC/EN 60947-7-1
Color
Gray
Number of levels
2
Surge voltage [kV]
6
Rated voltage EN [V]
500
Gauge [AWG]
22
Degree of contamination
3
Accurate color
Gray
Minimum stripping length [mm]
10
Stripping length [mm]
0.43
Number of poles
2
Total number of potentials
2
Rated voltage EN (Ex e II) [V]
440
Rated current [A]
24
Series
2002
Wire connection technique
CAGE CLAMP®
Maximum stripping length [mm]
12
Number of connectors
4
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
52 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
500 V
Type of electrical connection 2
Spring clamp connection
Number of levels
2
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
70 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
50 pcs.
Weight (kg)
0,562
Volume (m3)
0,003
Width (m)
0,105
Length (m)
0,285
Depth (m)
0,094
