TOPJOB® S Modular Snap-in Multi-Plug for Bridge Holes, Gray 2002-511 2002-511

Name: TOPJOB® S Modular Snap-in Multi-Plug for Bridge Holes, Gray 2002-511
Brand: WAGO ELWAG
SKU: TES238WAGO
Price: 8.03 PLN
Availability: BackOrder

local index:

TES238WAGO

Catalog number:

2002-511

EAN code:

4044918924849

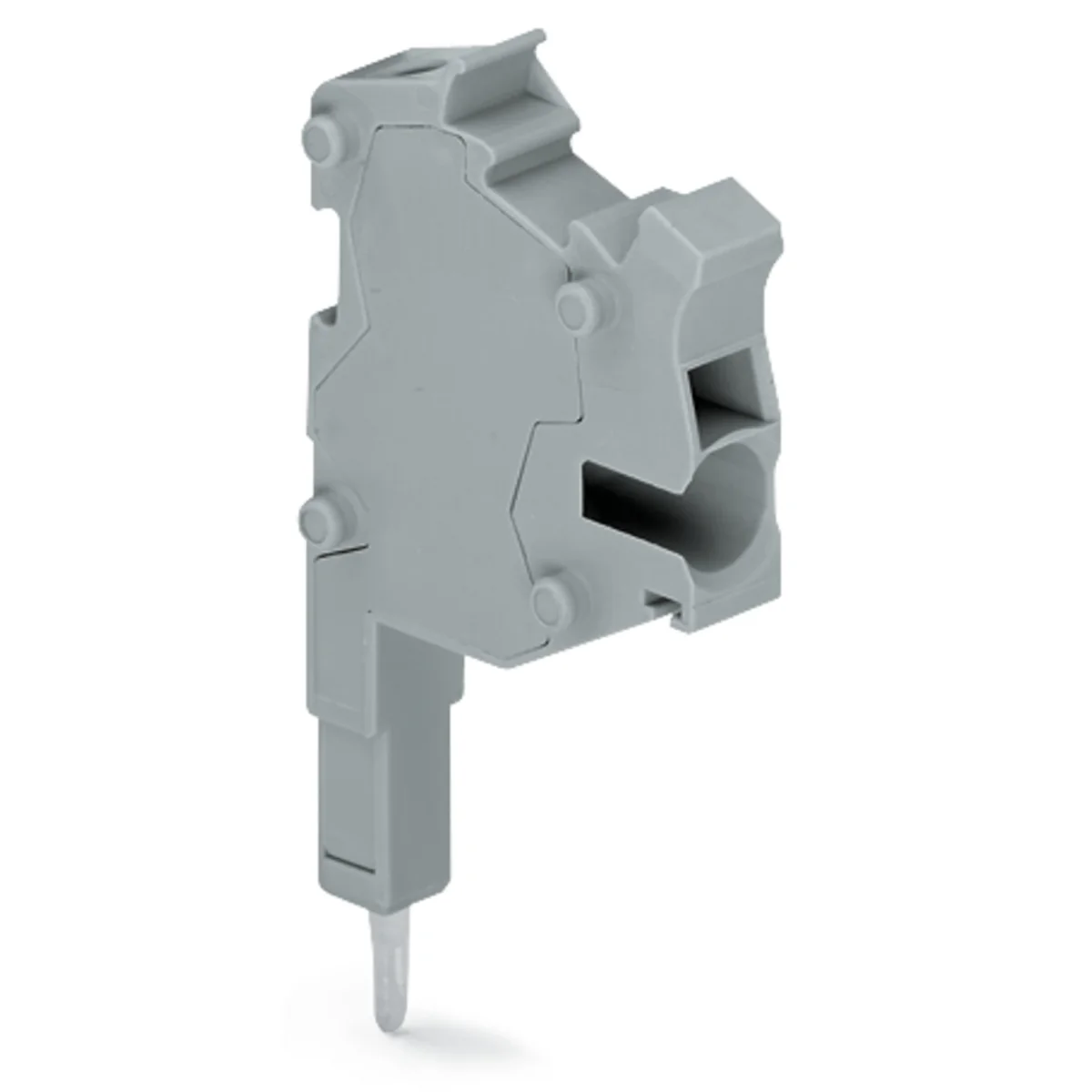

TOPJOB® S Modular Snap-in Multi-Plug for Bridge Holes, Gray 2002-511

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

8,03 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Model

Pin insert
Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.75 ... 4 mm²
Rated current In

24 A
Total number of poles (without ground contact)

1
Tackable

Yes

Connectable conductor cross section

0.25 ... 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve

0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 2.5 mm²
Rated voltage

500 V
Type of electric connection

Spring clamp connection
Number of poles

1

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton
Quantity	100 pcs.
Weight (kg)	0,329
Volume (m3)	0,001
Width (m)	0,095
Length (m)	0,270
Depth (m)	0,044
