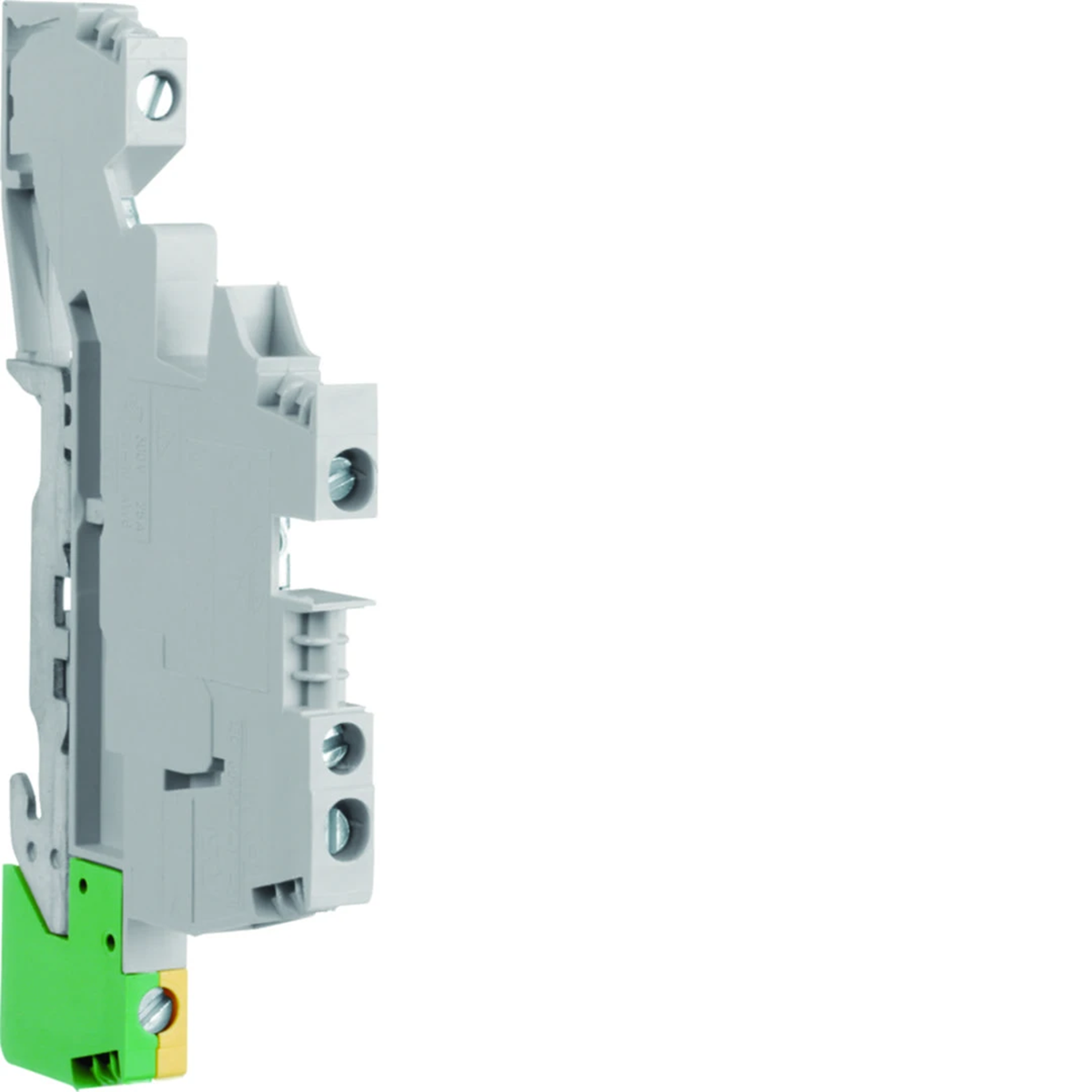

Through terminal 2xphase 1xPE 4mm2 KXA04I6

local index:
TES120HAGE
Catalog No:
KXA04I6
EAN code:
3250613942021
Manufacturer: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 6
Color: Gray
Price:
6,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Through terminal, 2-phase, 1xPE, series screw terminals.

Series characteristics:

    < li> Creep current resistance: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two conductors of the same cross-section to one terminal screw (in the case of PE only 1 conductor)
  • Easy cable entry into open terminal due to conical entry
  • Easy insertion of screwdriver into lowered terminal screws
  • Idling/idle after loosening terminal screws - especially important for power screwdrivers
  • All parts permanently fixed in the terminal carrier
  • The same level up to 35 mm2 in order to maintain the required insulation distances between individual groups of terminals, a partition plate should be placed at the beginning or end of the group of terminals /end.

Technical data

  • Energy lost in cables [W]
    1
  • Color
    Gray
  • Rated current [A]
    26
  • Wire cross-section (cord) [mm²]
    0.5 - 4
  • PKWIU
    27.33.13.0
  • Depth [mm]
    6
  • Material
    Polyamide
  • power loss [W]
    1
  • Conductor cross-section (wire) [mm²]
    0.5 - 6

Other technical data

  • Rated current In
    26 A
  • Material insulation body
    Thermoplastic
  • Mounting method
    Other
  • Basic colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,021 1,200 235,000
Width (m) 0,090 0,157 0,800
Length (m) 0,006 0,055 0,600
Depth (m) 0,052 0,195 1,200
