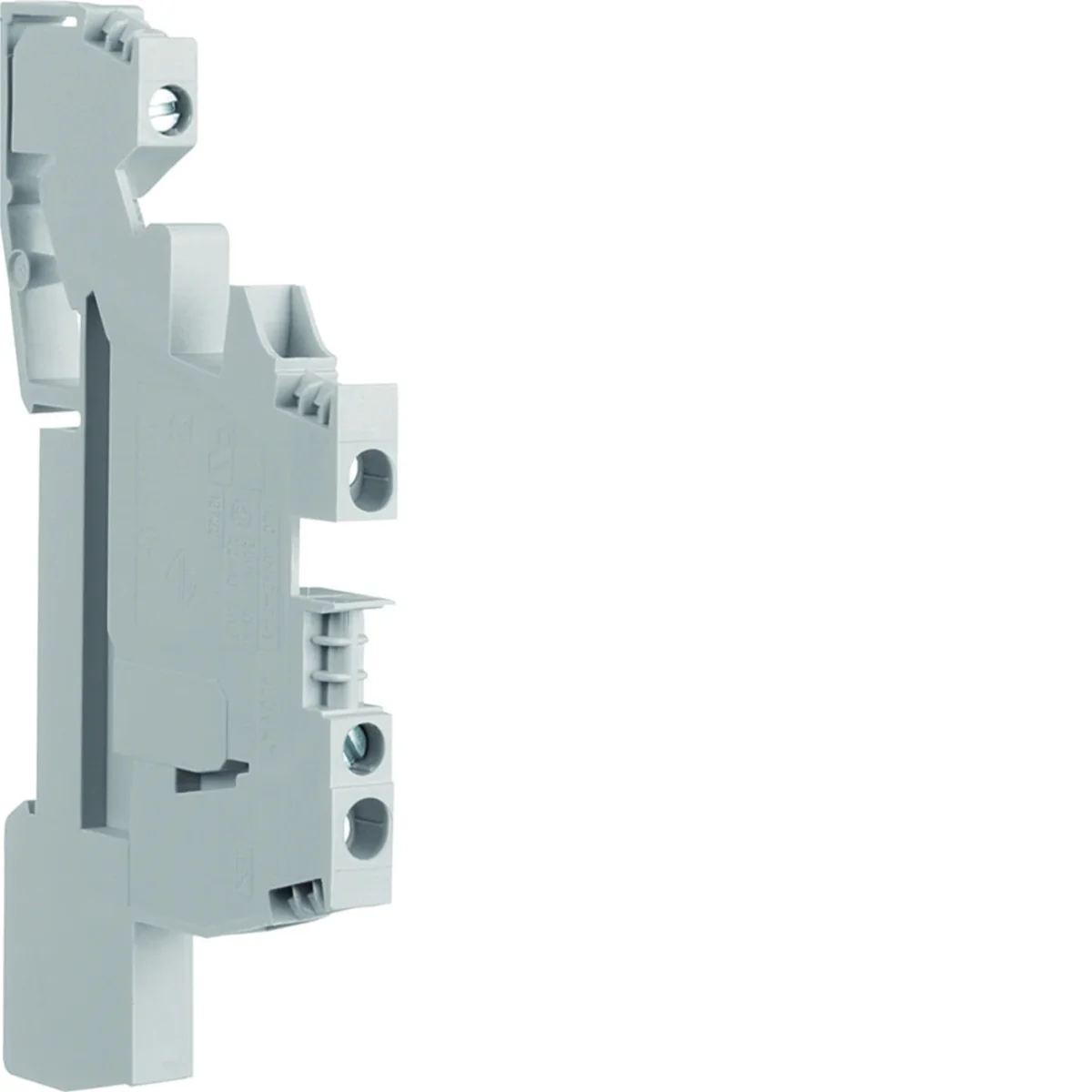

Through terminal 1xphase 1xPE 4mm2 KXA04I5

Lokaler Index:
TES119HAGE
Katalognummer:
KXA04I5
EAN-Code:
3250613942014
Hersteller: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 6
Color: Gray
Preis:
2,85 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 10 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Through terminal, 1-phase, 1xPE, series screw terminals.

Series characteristics:

    < li> Resistance to creepage currents: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two conductors of the same cross-section to one terminal screw (in the case of PE only 1 conductor)
  • Easy cable entry into open terminal due to conical entry
  • Easy insertion of screwdriver into lowered terminal screws
  • Idling/idle after loosening terminal screws - especially important for power screwdrivers
  • All parts permanently fixed in the terminal carrier
  • The same level up to 35 mm2 in order to maintain the required insulation distances between individual groups of terminals, a partition plate should be placed at the beginning or end of the group of terminals /end.

Technische Daten

  • Energy lost in cables [W]
    1
  • Color
    Gray
  • Rated current [A]
    26
  • Wire cross-section (cord) [mm²]
    0.5 - 4
  • PKWIU
    27.33.13.0
  • Depth [mm]
    6
  • Material
    Polyamide
  • power loss [W]
    1
  • Conductor cross-section (wire) [mm²]
    0.5 - 6

Weitere technische Daten

  • Rated current In
    26 A
  • Material insulation body
    Thermoplastic
  • Mounting method
    Other
  • Basic colour
    Grey

Großpackungen

Eine Art Paket Karton Paleta
Menge 1 stk. 50 stk. 10000 stk.
Gewicht (kg) 0,013 0,660 155,000
Breite (m) 0,045 0,157 0,800
Länge (m) 0,006 0,055 1,050
Tiefe (m) 0,090 0,195 1,200
