Three-phase power connector kit 95 mm², grey/blue/yellow-green 285-199

Name: Three-phase power connector kit 95 mm², grey/blue/yellow-green
Brand: WAGO ELWAG
SKU: TEB646WAGO
Price: 763.68 PLN
Availability: BackOrder

local index:

TEB646WAGO

Catalog number:

285-199

EAN code:

4045454204396

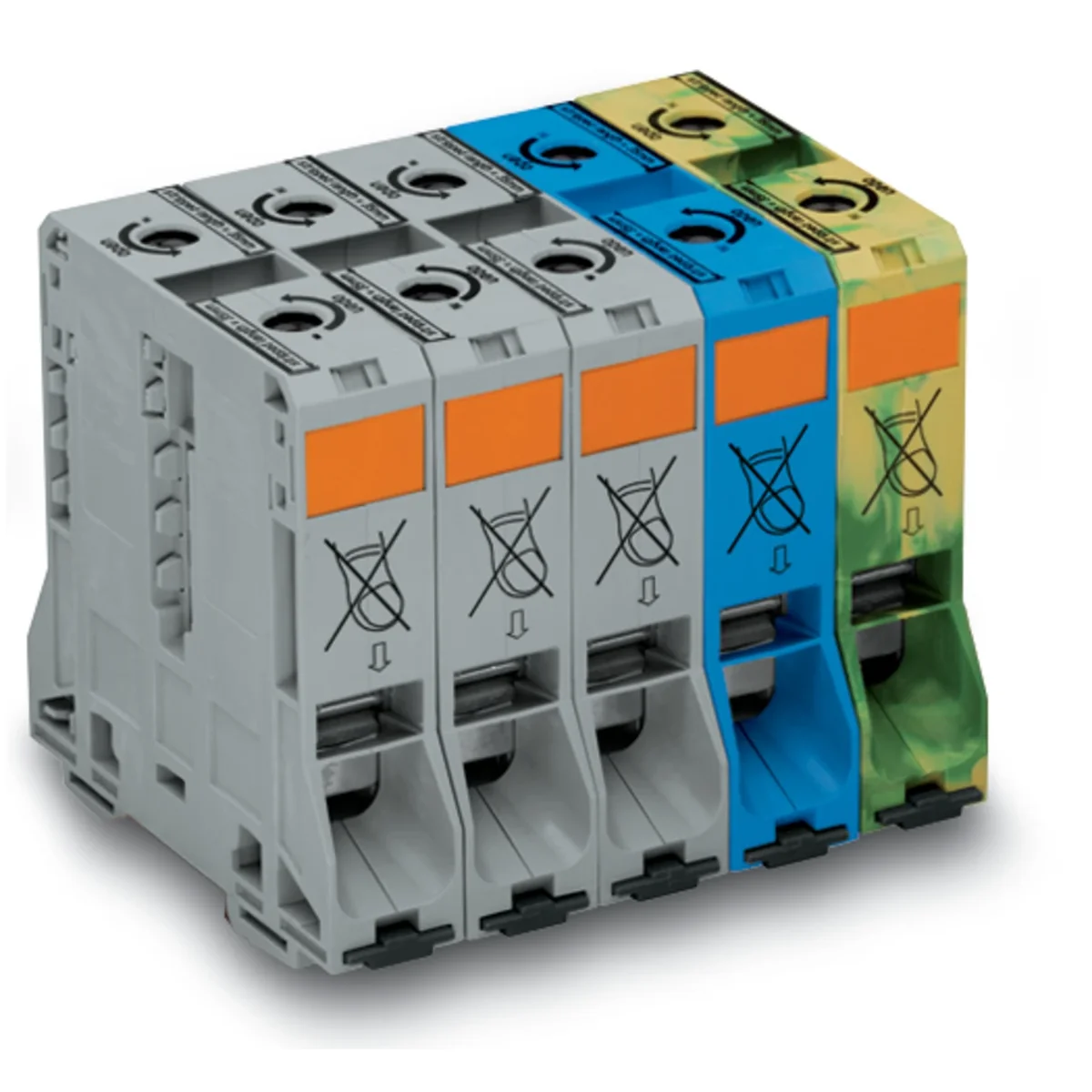

Three-phase power connector kit 95 mm², grey/blue/yellow-green

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

763,68 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

25 ... 95 mm²
Connectable conductor cross section multi-wired

25 ... 95 mm²
Rated voltage

1000 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per pole

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Width

125 mm
Depth

101 mm
Colour

Multi-coloured

Connectable conductor cross section fine-strand without cable end sleeve

25 ... 95 mm²
Connectable conductor cross section solid-core

25 ... 95 mm²
Rated current In

232 A
Type of electrical connection 1

Spring clamp connection
Number of poles

5
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Halogen free

Yes
Height

107 mm
Closing plate required

No
Transparent

No
