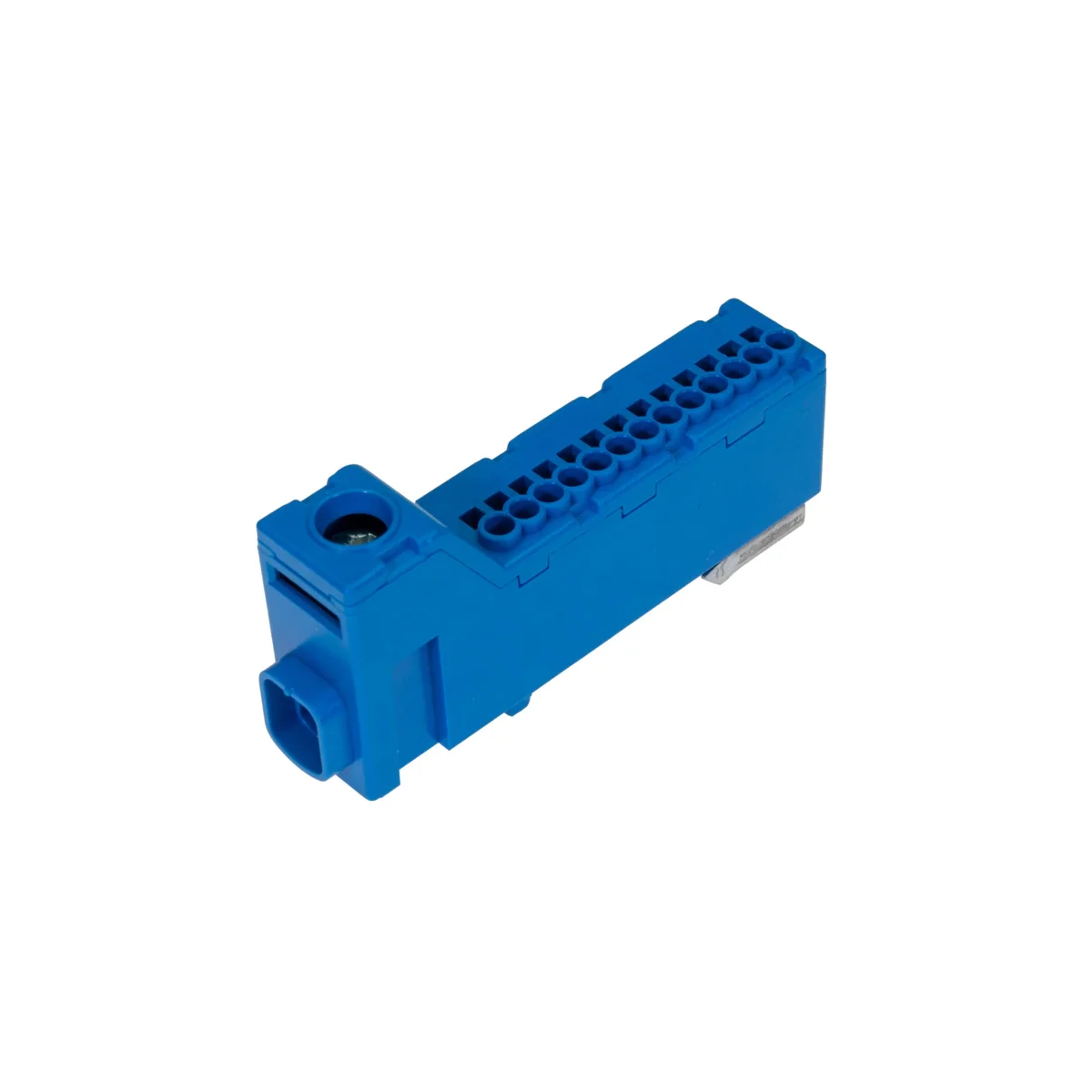

Threadless terminal block LZB, 1x2.5-25mm2 / 13x1.5-2.5mm2, 63A, 1kV, blue E.4136N

Indice locale:
TEB007PAWB
Numero di catalogo:
E.4136N
Codice EAN:
5908793098295
Produttore: PAWBOL
Prezzo:
37,43 zł
gross / pezzi
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Dati tecnici

Altri dati tecnici

  • Drill hole distance centrically
    0 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    1.5 ... 25 mm²
  • Connectable conductor cross section solid-core
    1.5 ... 25 mm²
  • Rated current In
    63 A
  • Type of electrical connection 1
    Screw connection
  • Number of poles
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Inflammability class of insulation material according to with UL94
    Other
  • Width
    85 mm
  • Depth
    37 mm
  • Colour
    Blue
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    1.5 ... 25 mm²
  • Connectable conductor cross section multi-wired
    1.5 ... 25 mm²
  • Rated voltage
    415 V
  • Type of electrical connection 2
    Other
  • Number of clamp positions per pole
    0
  • Material insulation body
    Thermoplastic
  • Halogen free
    No
  • Height
    37 mm
  • Closing plate required
    No
  • Transparent
    No

Dettagli del produttore

  • Produttore
    PAWBOL Sp. z o.o.
  • Indirizzo
    32-640 Zator Władysława Grabskiego 29 Polska

Imballaggio sfuso

Una specie di pacchetto Bez opakowania Karton
Quantità 1 pezzi 8 pezzi
Peso (kg) 0,086 -
Larghezza (m) 0,018 -
Lunghezza (m) 0,085 -
Profondità (m) 0,037 -
