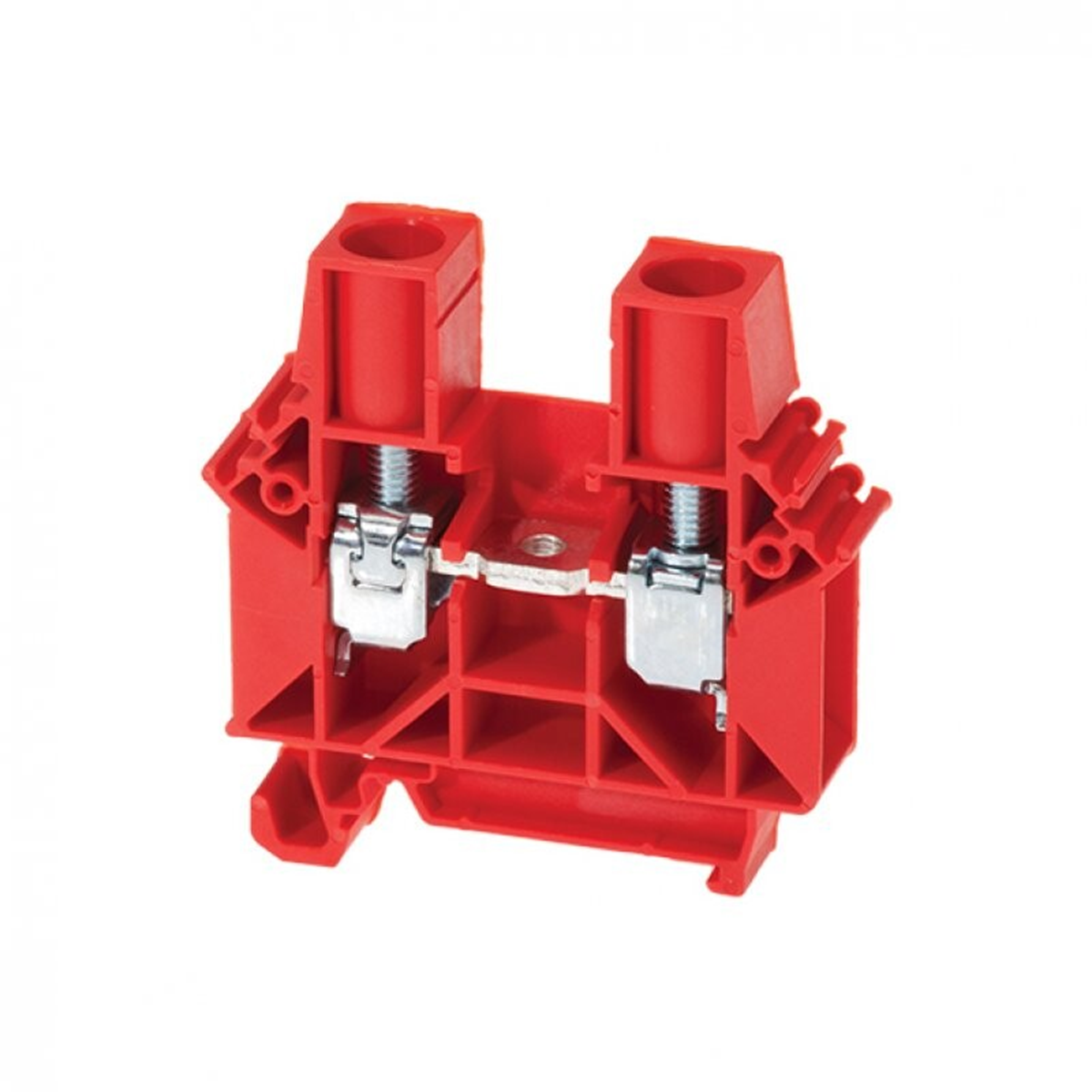

Threaded through connector for 16mm2 wires, red 11-A537
local index:
TES223POKO
Catalog No:
11-A537
Price:
0,97 €
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
1,38 € gross
-0,41 €
Price history for this product
1. 0,97 € gross / pcs.
2. The lowest price from 30 days before the reduction:
1,38 €
-0,41 €
3. Base price:
1,38 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
1,38 € gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Connector ZUG 16mm2 red
Cross-section of the connected solid wire: 0.5 - 25 mm²
Cross-section of the connected stranded wire without ferrule: 0.5 - 16 mm²
Cross-section of the connected stranded wire with ferrule: 0.5 - 16 mm²
Cross-section of the connected multi-conductor cable: 0.5 - 16 mm²
Lock plate required.
Technical data
-
Stripping length [mm]13
-
MaterialPolyamide
-
Rated insulation voltage [V]1000
-
Nominal cross-section [mm²]16
-
Rated impulse voltage [kV]8
-
ColorRed
-
InstallationOn the TH35 rail
-
Continuous rated current [A]76
-
ambient temperature [°C]-25...+120
Manufacturer details
-
Manufacturer"POKÓJ" SPÓŁDZIELNIA ELEKTROTECHNICZNA
-
Address91-202 UL.WARECKA 1
-
E-mail
-
Tax identification number7240001089
